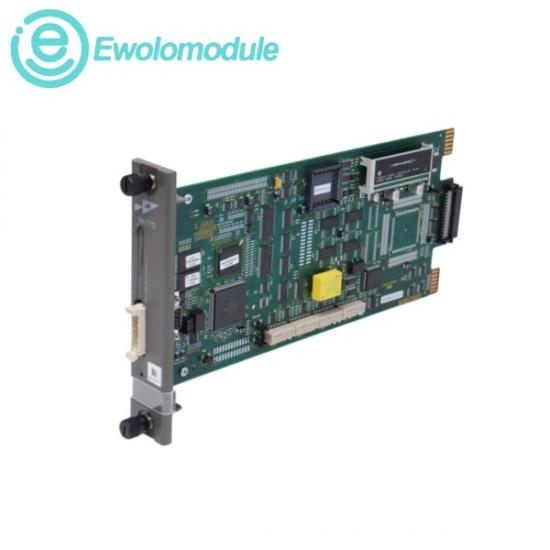

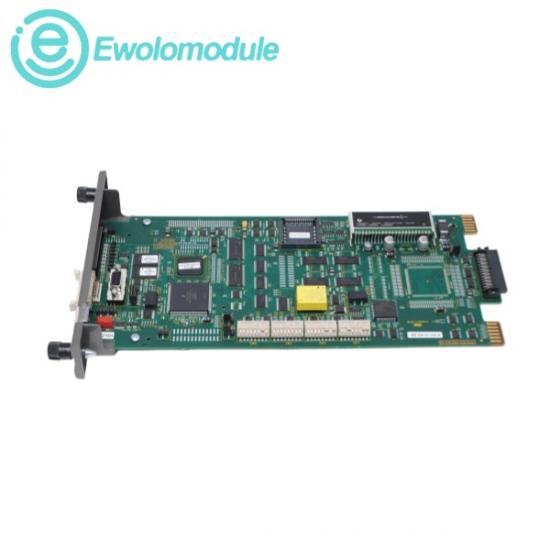

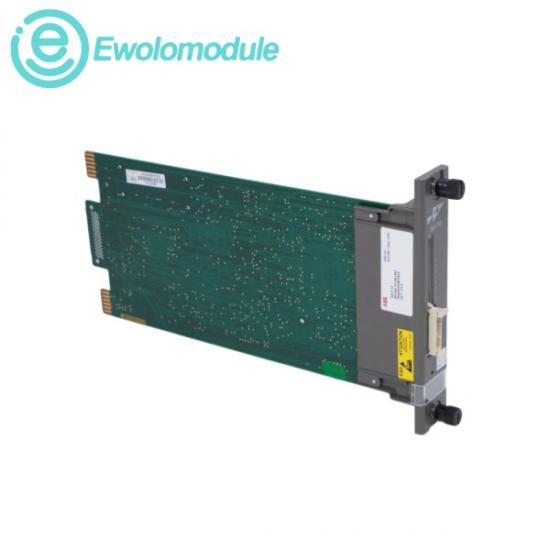

The ABB INIIT13 is a high-performance analog input module from the ABB Bailey INFI 90 / Symphony series. It functions as a communication bridge, enabling a high-speed wired link between distinct Infi-Net control loops within the local automation network. Operating through onboard microprocessor logic configured via internal switch settings and specialized FPGA firmware, it guarantees deterministic, real-time, and secure data traffic exchange across heavy industrial architectures without loading down main controller processing pipelines.

♦ Input Channels: 8 × differential analog inputs

♦ Resolution: 16-bit (ADC)

♦ System Accuracy: ±0.1% FS (typical)

♦ Refresh Cycle: ≤ 1 ms (typical)

♦ Supply Voltage: 24 VDC ±20%

♦ Power Consumption: < 10 W

♦ Operating Temperature: −20 °C to +60 °C

♦ Storage Temperature: −40 °C to +85 °C

Inter-Network Sub-Rack Bridging:

Linking multiple processing chassis or cabinets within the same factory footprint over local Infi-Net structures.

Process Control System Synchronization:

Transmitting critical loop statuses, interlocks, and sensor values seamlessly between separate distributed controller modules.

Distributed Power Plant Management:

Facilitating high-reliability data communication across remote turbine monitoring, boiler systems, and safety integration cells.

Chemical Treatment Infrastructure:

Implementing localized data transfers for broad manufacturing networks requiring precise data logging and constant communication uptimes.
