01 / PRODUCT DETAILSDRIVE COMMUNICATION

ABB

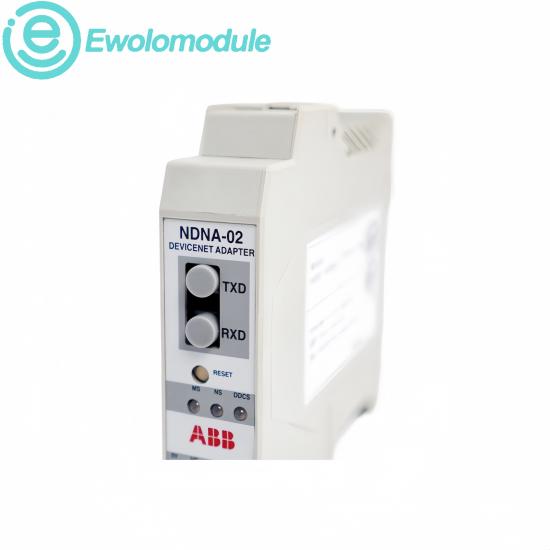

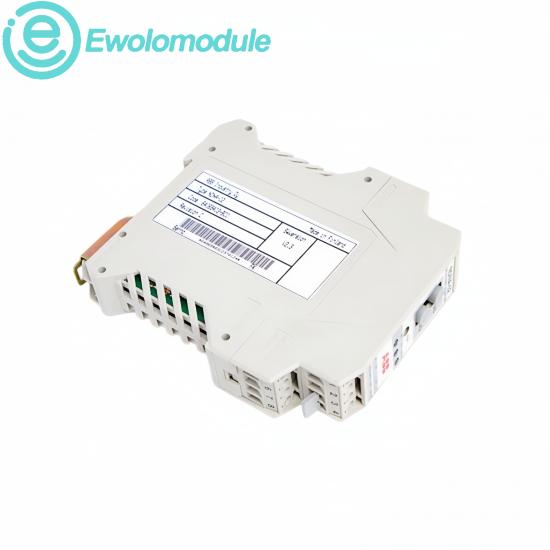

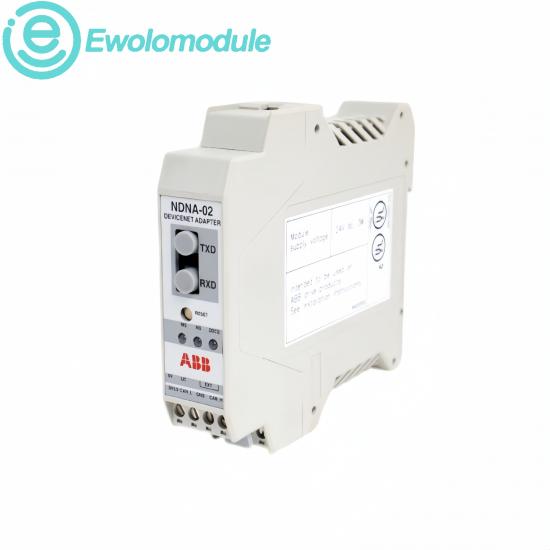

NDNA-02 / NDNA-02-KIT

DeviceNet Adapter

PRODUCT OVERVIEW

DeviceNet fieldbus interface for compatible ABB drive systems

The NDNA-02 adapter connects compatible ABB drive equipment to a DeviceNet network for cyclic control, status and parameter exchange using the installed drive communication interface.

PRODUCT ROLE

Bridges DeviceNet messaging with supported ABB drive control data.

SYSTEM FIT

Match the adapter revision, drive family, node settings and cable connector.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL+86 17359287459 EMAILsales9@apterpower.com

Explore other ABB products →

02 / DIAGNOSTICS & INSTALLATION

Diagnostics & Protection

Review network and module status indications, termination, node address and baud-rate settings. Separate bus-cable, power and drive-interface faults before replacing the adapter.

Installation & Upgrades

Preserve the existing node address and communication rate, connect shield and DeviceNet conductors exactly as documented, then validate the master scan list and drive data mapping.

Technical data

Spare model3AUA489002B5047

NetworkDeviceNet

Physical layerCAN-based fieldbus

Data rates125/250/500kbit/s

Node range0–63

Bus connector5-pin DeviceNet

Drive interfaceABB drive option bus

ConfigurationNode and rate switches

03 / BRAND & APPLICATIONS

Brand characteristics

Drive integration

Communication options align drives with plant control networks.

Deterministic exchange

Cyclic command and status data support coordinated motion.

Modular upgrades

Fieldbus adapters can be serviced independently of the drive.

Installed-base support

Revision control protects existing network mappings.

Application fields

Conveyors

Drive command and feedback on material-handling lines.

Pumps and fans

Networked speed control in utility systems.

Process machinery

Supervisory drive data in automated equipment.

Retrofit projects

DeviceNet continuity for established ABB drives.

Product references

ABB

PM864AK01

CI854AK01

AI845

DO880

LD800HSE

DI880

AX670

PM851K01

TU843

SD821

PM866

CI853K01

CI858K01

CI860K01

SM811K01

SM812K01

AO810

AI810

TB840A

BC810K02

Bachmann

MC210

MC212

MPC240

BS207

DIO280

AIO288

CNT204/R

NT255

FS212/N

ISI222

AI204

AI208

AO202

AO204

DI232

DO232

DIO264

EM213

OT115

FM211

04 / SERVICE & POLICY

Quote

IDENTIFY

Provide NDNA-02 / NDNA-02-KIT, the installed system reference and required quantity.

VERIFY

Confirm the ABB drive family, adapter revision, DeviceNet node address, baud rate and master mapping before quotation.

QUOTE & DELIVERY

State the delivery destination, required date and preferred transport method. Availability, condition, warranty, lead time, protective packing and shipping terms will be checked before quotation.
