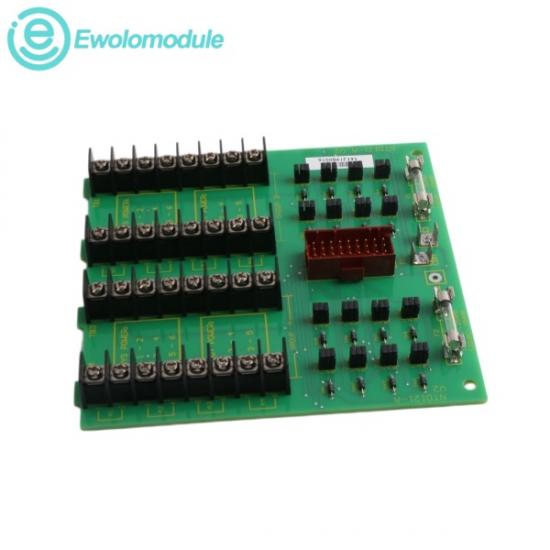

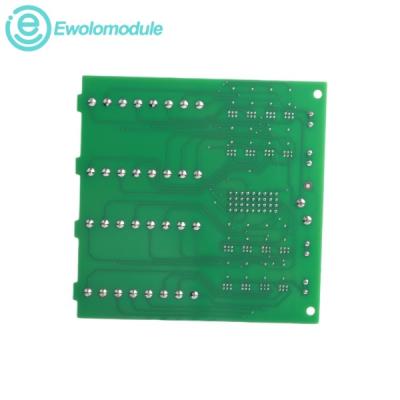

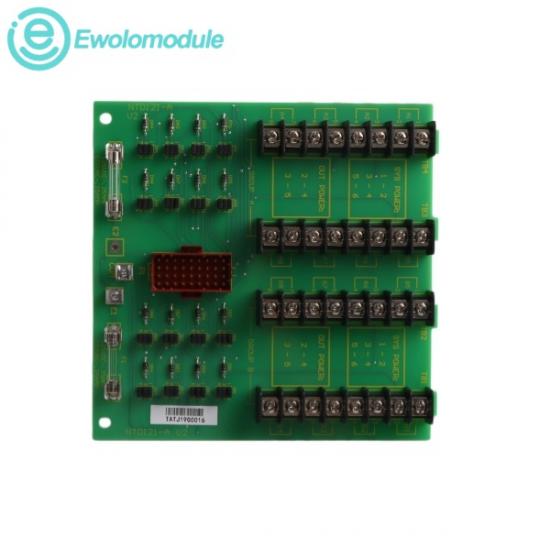

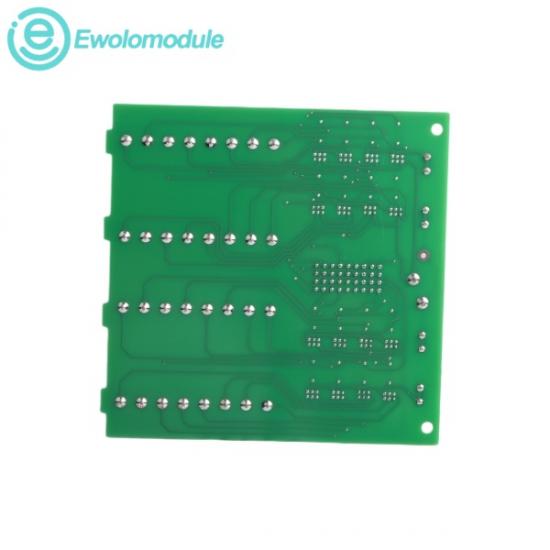

The ABB NTDI21-A Termination Unit is an industrially hardened interface module designed to manage and route discrete process input telemetry from factory floor instrumentation directly to a central DCS framework. Functioning as a secure terminal landing board, it bridges field instrumentation cables with system-side digital input processing modules. The board is engineered to optimize signal management, filter electromagnetic line distortion, and safeguard sensitive controller logic from accidental high-voltage transients or ground-loop disruptions.

² Input Voltage Spectrum: Universally supports standard process loop voltages including 24 VDC, 48 VDC, 125 VDC, or 120 VAC.

² Galvanic Isolation Protection: Features integrated high-level isolation properties rated up to 2500 Vrms.

² urge Protection Rating: Built-in surge suppressors protect downstream equipment against voltage spikes up to 5 kV.

² Operating Temperature Window: Hardened for standard plant-floor cabinetry, operating from 0°C to 55°C (32°F to 131°F).

² Storage Temperature Tolerance: Resilient across facility warehouse climates spanning from -40°C to 85°C.

Field Signal Landing & Management:

Industrial Noise Suppression:

Loop Transient Isolation:

Serves as a centralized physical termination bridge for routing raw, discrete input cables from field sensors directly into cabinet modules.

Safeguards upstream DCS modules against high-frequency cross-talk, magnetic spikes, and localized electrical noise originating near heavy field equipment.

Deployed in sprawling multi-ground environments to provide structural surge and galvanic protection across multi-voltage field control setups.
