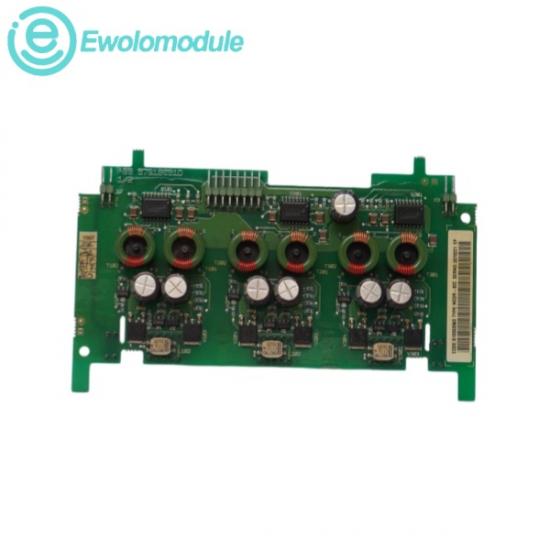

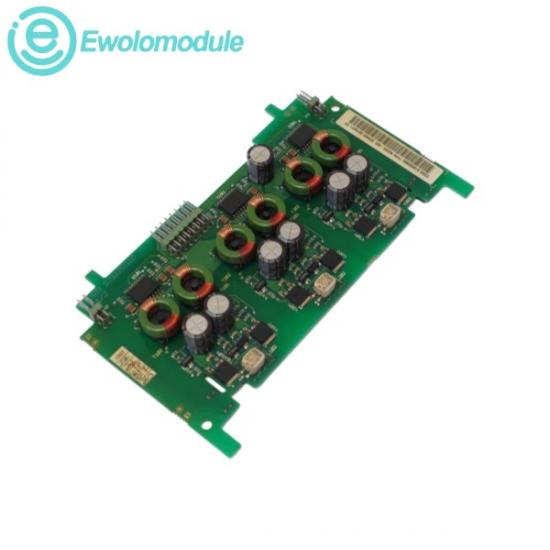

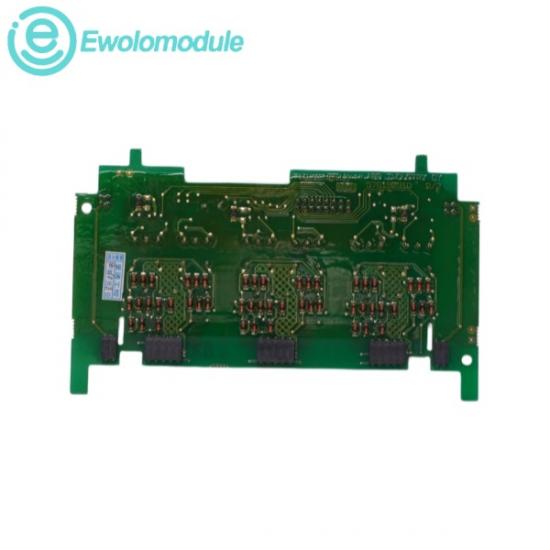

The ABB NGDR-02C Gate Circuit Board is a precision-engineered industrial control module designed for seamless integration into advanced automation systems to deliver robust gate control solutions. Constructed with a heavy-duty aluminum alloy frame, this board features exceptional physical durability and localized structural resistance to survive harsh operational parameters on factory floors. Functioning as an intelligent node, the unit actively coordinates physical entry or data access paths, provides reliable real-time interface telemetry, and minimizes continuous operational costs through an ultra-low power consumption engineering design.

² Control Density: Equipped with 4 distinct gates for efficient management.

² Input Voltage: Operates on a standard DC 24V input voltage baseline.

² Operating Temperature Window: Running flawlessly across a temperature range from -20°C to +85°C.

² Power Efficiency: Optimized logic circuitry guaranteeing highly efficient low power consumption.

Facility Access Point Management:

Integrated Network Communication:

Harsh Environment Access Control:

Deployed across sprawling industrial plants to efficiently regulate and track up to four distinct automated gates, barriers, or turnstiles simultaneously.

Utilized as a remote communication node to bridge raw field gate mechanisms with master automation networks via Modbus RTU serial links.

Installed in heavy factory locations subject to extreme temperature fluctuations or vibrations where standard commercial security boards fail.
