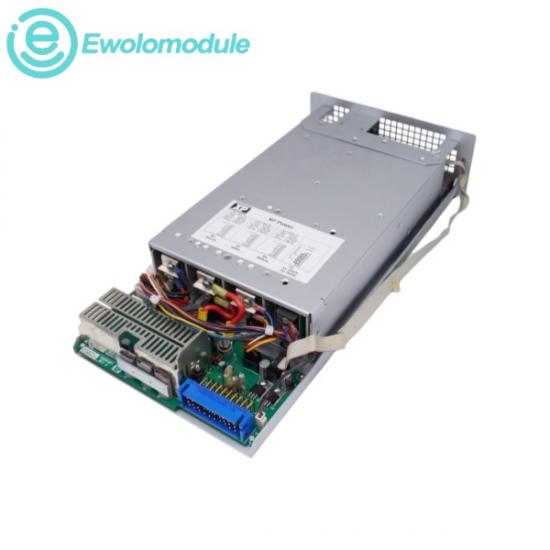

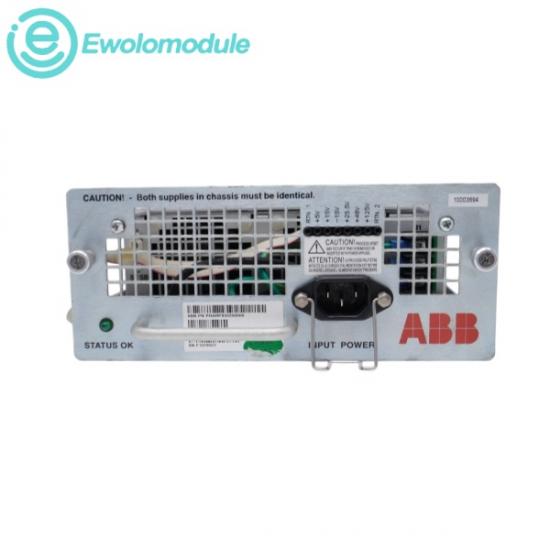

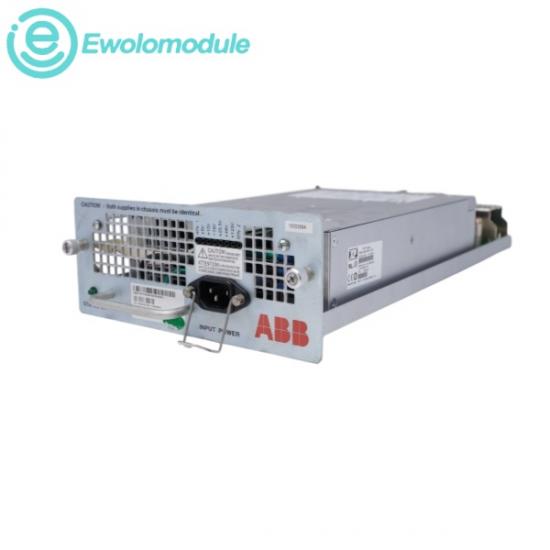

The ABB PHARPS32200000 Power Supply Unit is a high-capacity, multi-rail industrial power module engineered to provide regulated multi-voltage DC electrical lines to critical distributed control systems. Functioning as the core energy baseline for system racks, this module consolidates incoming power and distributes it across five distinct, stabilized voltage outputs simultaneously. The unit features robust electrical isolation, integrated overload line protection, and heavy-duty filtering logic designed to protect vulnerable processing backplanes and field networks from operational voltage anomalies, spikes, and shifting loads on factory floors.

² Output Voltage Tracks: Simultaneously generates 5 VDC, +15 VDC, -15 VDC, 24 VDC, and 48 VDC rails.

² 5 VDC Channel: Delivers up to 60 A continuous current.

² +15 VDC Channel: Delivers up to 3 A continuous current.

² -15 VDC Channel: Delivers up to 3 A continuous current.

² 24 VDC Channel: Delivers up to 17 A continuous current.

² 48 VDC Channel: Delivers up to 8.5 A continuous current.

² Operating Temperature Range: Hardened for plant-floor environments, operating from 0°C to 55°C (32°F to 131°F).

Analog and Discrete Signal Excitation:

Operational Control Interface Telemetry:

Centralized Cabinet Energy Consolidation:

Drives external 24 VDC and 48 VDC loop current tracks to power field instrumentation, field transmitters, and remote switches.

Provides dedicated +15V and -15V balanced operational voltage rails for specialized internal operational amplifier circuits.

Acts as a heavy-duty, multi-point power consolidation hub to eliminate the need for numerous individual single-output power supplies inside automation panels.
