PRODUCT PROFILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

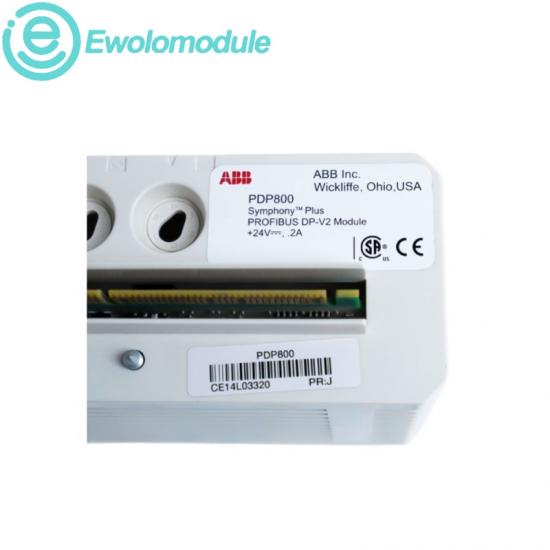

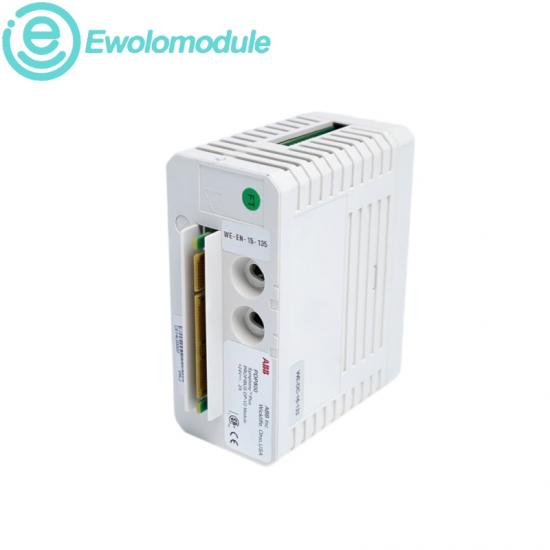

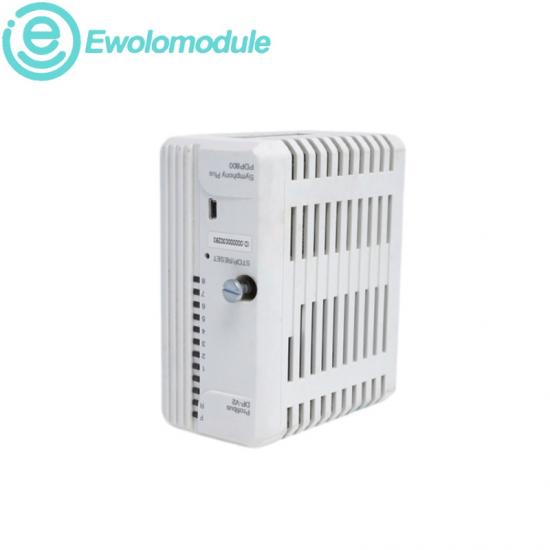

ABB · SYMPHONY PLUS SD

ARTICLE NUMBER

PDP800

OFFICIAL PRODUCT NAME

PROFIBUS DP-V2 Master Interface Module

REFERENCE DP-V2

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

TECHNICAL DATA & APPLICATION

CALL +86 17359287459 EMAIL sales9@apterpower.com

OPERATING ENVIRONMENT

OPERATING

0 to 55°C

STORAGE

-40 to 85°C

HUMIDITY

20–95% RH

MOUNTING

PTU810 base

TECHNICAL SPECIFICATIONS

Manufacturer	ABB
Model	PDP800
Protocol level	PROFIBUS DP-V2
Product family	Symphony Plus SD
Module type	Master interface
Processor	32-bit ColdFire, 160 MHz
Memory	128 MB RAM
Input supply	24 VDC ±10%
Typical power	3.6 W
Maximum bus rate	12 Mbit/s

APPLICATION SCENARIOS

S800 I/O LINK

Connects Symphony Plus controllers with distributed S800 I/O.

SEQUENCE EVENTS

Supports 1 ms source time stamping for trip analysis.

FIELD DEVICES

Exchanges cyclic and acyclic data with PROFIBUS instruments.

FIBER NETWORK

Extends DP communication through supported optical topology.

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

ABB Symphony Plus communication modules provide documented fieldbus integration, precise sequence-of-events handling and modular lifecycle support.

DP-V2 READY

TIME STAMPED

MODULAR

APPLICATION FIELDS

Used in power generation, water, process plants and infrastructure systems integrating distributed I/O and intelligent PROFIBUS devices.

S800 I/O

FIELD BUS

POWER PLANTS

RECOMMENDED MODELS

ABB

PM856AK01	PM573-ETH	CI854A	CI920S	DX910S
PDP800	AI810	AO810	DI810	DO810
TU810V1	SD831	SD832	TB840	CI840A
AI820	DI820	DO820	BP910S	SA910S

Koyo Electronics

D2-230	D2-240	D2-250-1	D2-260	D2-430
D2-440	D2-450	D2-16ND3-2	D2-16NA	D2-16TD1-2
D2-08NA-1	D2-04AD	D2-08AD-1	D2-02DA	D2-08TR
D4-450	D4-16ND2	D4-16TD2	F2-04AD-1	F2-08DA-1

ORDER & SERVICE FLOW

01 · IDENTIFY

Provide the complete PDP800 DP-V2 marking, installed system, equipment position and required quantity.

02 · VERIFY

Confirm the full order code, hardware revision, compatible interfaces, condition and current availability.

03 · QUOTE

Review condition, warranty, lead time, protective packing and destination-based delivery terms.

04 · DISPATCH

Complete identity checks, protective packing, shipment documentation and destination routing before release.
