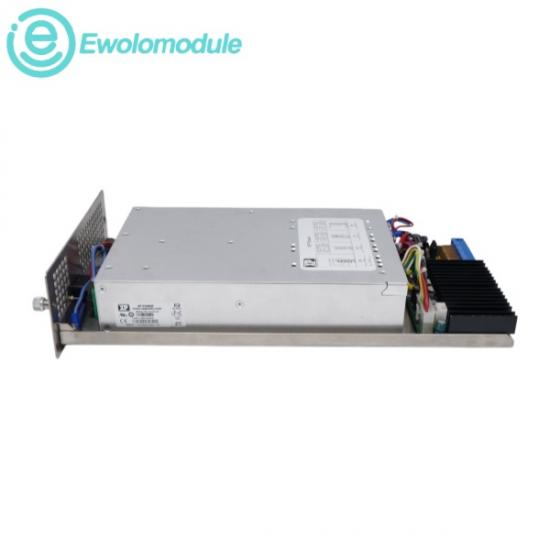

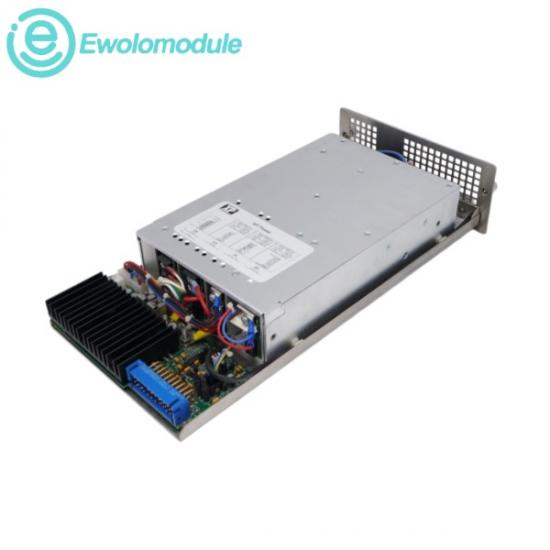

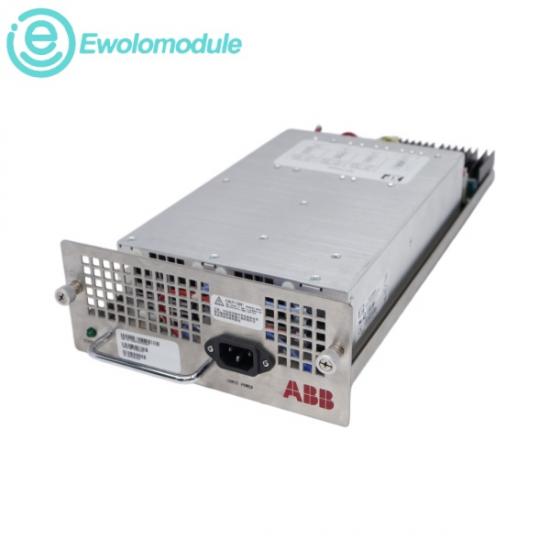

The ABB PHARPS62200000 is a high-performance power supply module engineered for the ABB Bailey INFI 90 and Symphony Plus Distributed Control Systems. As a core component of the MPS III series, it provides reliable and regulated DC power to critical system components, such as controllers and I/O modules. The module features a compact design, high efficiency, and advanced protection features, making it suitable for demanding industrial environments.

² Input Voltage Compatibility: Typically accepts universal industrial multi-range inputs of 120/240 VAC or high-power 125 VDC.

² Output Multi-Rail Rails: Simultaneously supplies stabilized system DC voltages, including 5 VDC, +15 VDC, -15 VDC, and 24 VDC channels.

² Continuous Output Current: Delivers continuous high-amperage output (typically up to 50 A to 60 A on the critical 5V logic line).

² System Efficiency Rating: Incorporates advanced synchronous rectification technology, achieving an energy efficiency rating of > 85%.

² Operating Temperature Window: Specially hardened for demanding plant cabinets, operating from 0°C to 55°C (32°F to 131°F).

² Storage Temperature Resilience: Withstands standard facility warehouse conditions from -40°C to 85°C.

DCS System Component Powering:

Field Loop Current Excitation:

Voltage Fluctuation Safeguarding:

Directly provides regulated logic power to central processing units, bus modules, and communication cards inside INFI 90 racks.

Supplies continuous 24 VDC voltage rails to power external 4-20mA sensor transmitters and field instrumentation loops.

Deployed in facilities with unstable power grids to insulate delicate system logic from line sags, spikes, and surges.
