Product category: ABB DCS800 Industrial DC Drives Series

Product status: New and Original

Tariff code: 85371091

Product description:

ABB SDCS-IOB-3 3BSE004086R1 Analog interface board

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

Product Details

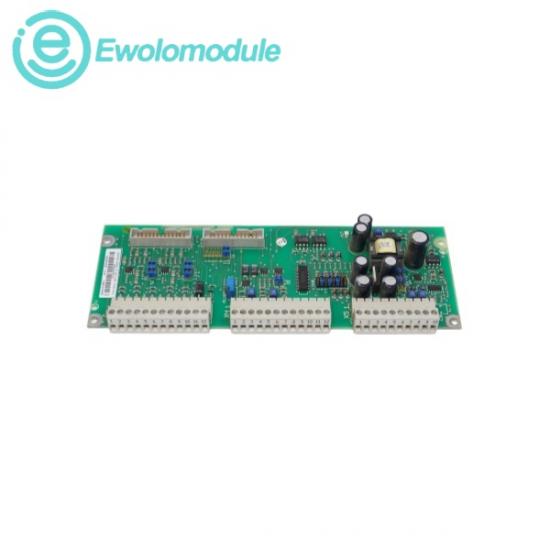

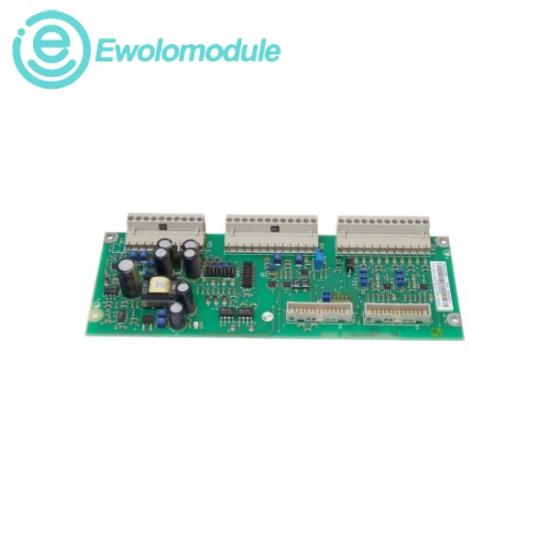

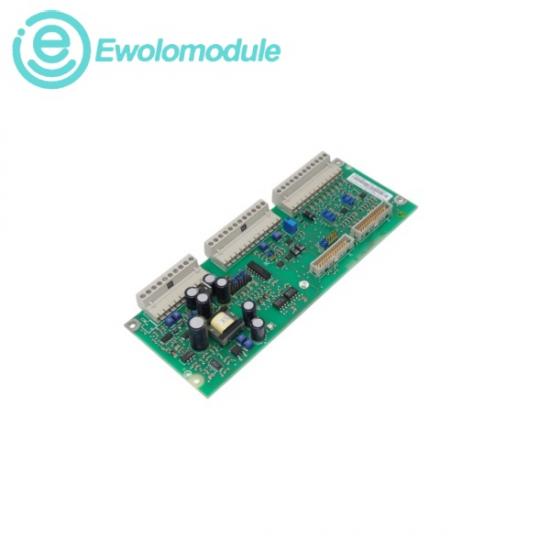

The ABB SDCS-IOB-3 3BSE004086R1 is a specialized analog input/output connection board designed to seamlessly substitute and expand the standard internal analog I/O and encoder input functionality found directly on the system's main control board (such as the SDCS-CON-4). It establishes a dual data link using dedicated flat cable interfaces via connectors X1 and X2 to relay signals cleanly back to the central logic. Engineers integrate this module to achieve heightened signal fidelity, field loop isolation, and multi-channel synchronization for speed, current references, or feedback devices. Its structural design typically requires a specialized card holder equipped with integrated finger protection and screen clamps to guarantee grounding, minimizing high-frequency electrical noise inside high-power industrial drive cabinets.

Data Details

Interface Connectors: Dual flat ribbon cable headers (X1 and X2)

Analog Inputs Channel Count: 5 channels

Analog Outputs Channel Count: 3 channels

Voltage Compatibility: Supports ±10 V DC standard differential signal ranges

Potentiometer Reference Voltage Output: ±10 V DC auxiliary voltage source

Integrated Sensor Current Source: 1.5 mA to 5.0 mA dedicated output

Maximum Flat Cable Length (Standard): ≤ 1.7 meters

Maximum Flat Cable Length (Shielded): ≤ 4.0 meters
