Product category: ABB Stromberg Drives Series

Product status: New and Original

Tariff code: 85371091

Product description:

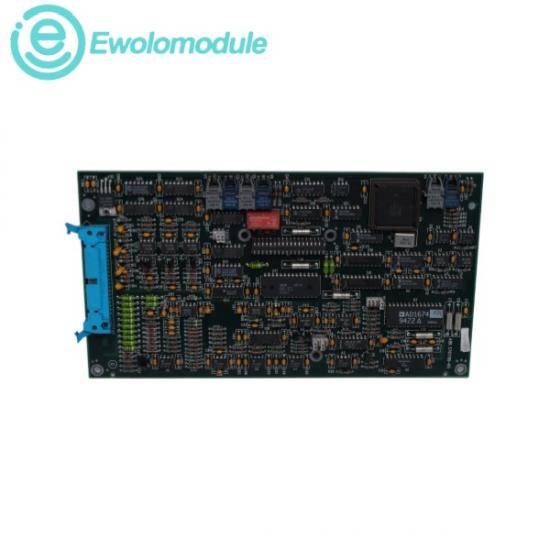

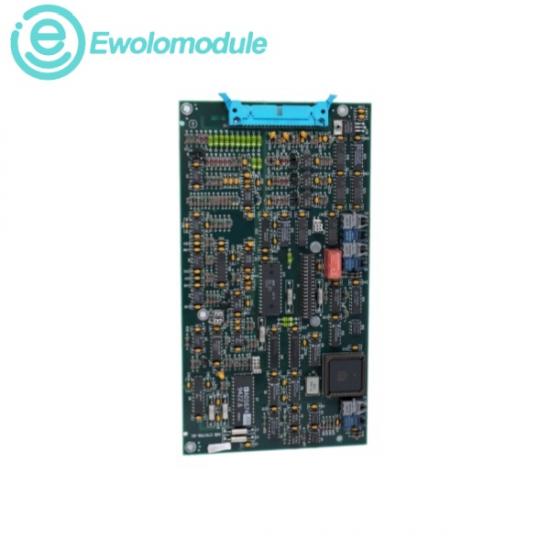

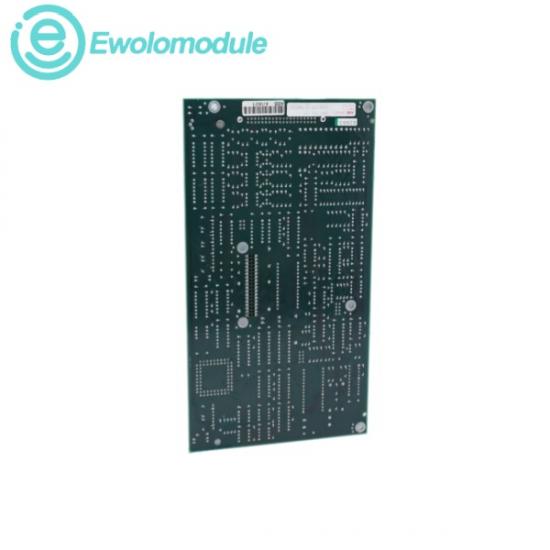

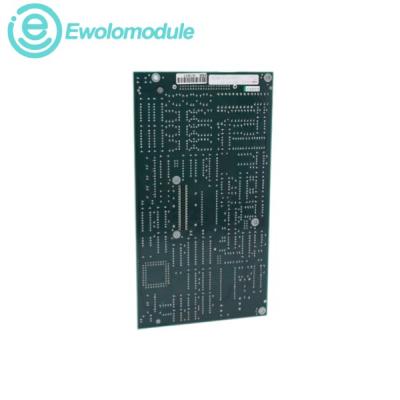

ABB SNAT601TAI industrial control board

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

Product Details

The ABB SNAT601TAI is a high-reliability, multi-layer printed circuit control board engineered exclusively for early-generation, heavy-duty industrial variable frequency drives and servo motor control systems. Rather than operating as an isolated temperature field transmitter, it functions deep within the inverter's main drive housing, acting as a crucial interface block that synchronizes core feedback loops, parameter scaling, and diagnostic logic processing. It features highly integrated surface-mount logic networks, dedicated jumper pins for hardware interrupt configurations, and complex multi-pin ribbon bus headers. This design architecture ensures ultra-low processing latency, robust noise suppression against high-power switching interference, and synchronized systemic safety communication between the central execution drive unit and peripheral field interfaces.

Data Details

Internal Supply Voltage (Logic): +5 V DC (±5%)

Auxiliary Supply Voltage Options: +15 V DC / -15 V DC (±10%)

Input Interface Logic Voltage: 24 V DC

Maximum Board Power Consumption: ≤ 8.5 W

Maximum Flat Ribbon Bus Length: 0.5 m

Interrupt Jumper Settings (S1 Block): 4 selectable routing paths

Storage Temperature Limits: -40°C to +70°C

Operational Ambient Temperature: 0°C to +55°C (without derating)

Relative Humidity Limits: 5% to 95% RH (Non-condensing)
