Product category: ABB Stromberg Drives / Sami MegaStar series

Product status: New and Original

Tariff code: 85371091

Product description:

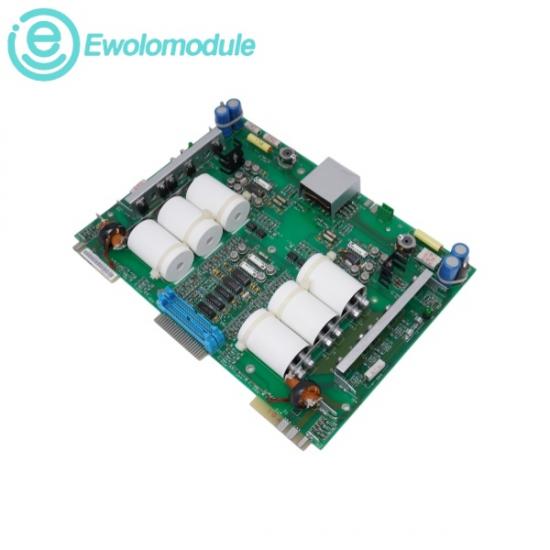

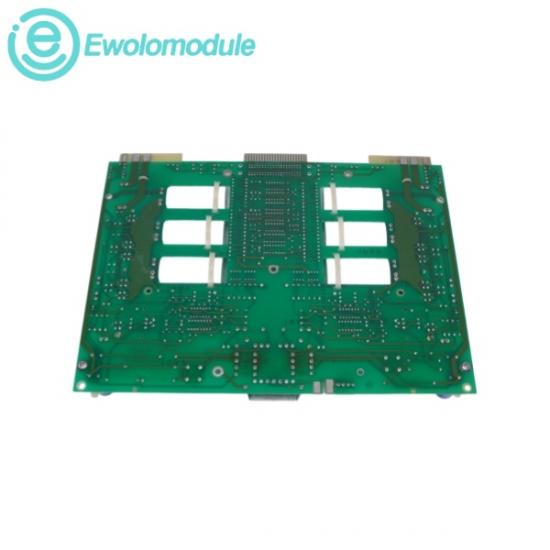

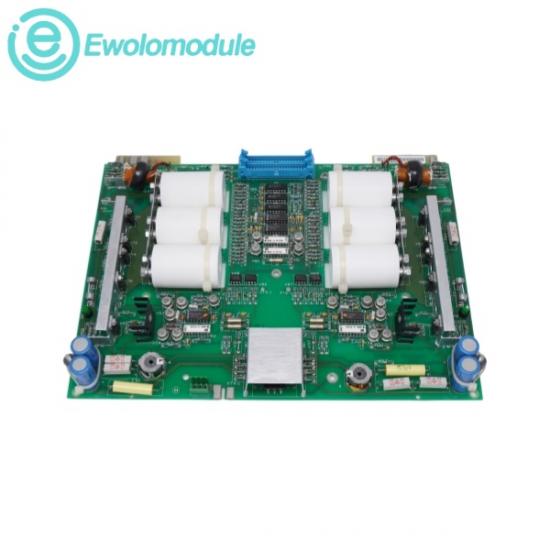

ABB SNAT633PAC SNAT 633 PAC 61049444 Pulse Amplifier Board

The ABB SNAT633PAC SNAT 633 PAC 61049444 is a high-power pulse amplifier board. Built for large drive systems, this ABB SNAT633PAC SNAT 633 PAC 61049444 scales up logic triggers to cleanly fire gate thyristors for motor regulation.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

>>>Product Overview

The ABB SNAT633PAC SNAT 633 PAC 61049444 is a high-performance pulse amplifier board engineered for precision signal conditioning and amplification in demanding industrial automation environments. Its core operational role is to receive weak, low-voltage trigger command pulses generated by the drive's main control processor and amplify them into robust, clean electrical signals capable of quickly forcing heavy power-semiconductor gates (like GTOs or thyristors) to switch on or off. By maintaining sharp pulse rise-times and isolating the high-power phase elements from sensitive control logic buses, it directly guarantees stable power switching, accurate motor speed tracking, and critical system protection against short-circuit cross-talk.

➟ Power Supply Voltage: Typically requires a dual power input layout of +15V DC / -15V DC or a unified 24V DC

➟ Pulse Voltage Amplitude: Steps up low-level input signals into 15V to 20V

➟ Ambient Operating Temperature: Formulated to function reliably within closed inverter cabinets from 0 °C to +55 °C

➟ Storage Temperature Envelope: Endures non-operational shipping parameters between -40 °C to +70 °C

➟ Relative Humidity Boundaries: 5% to 95% non-condensing deployment conditions

>>>Product Applications

Gate Trigger Amplification:	Serves as the primary bridge that scales up microprocessor timing signals into raw electrical power needed to actuate heavy thyristors.
Phase Switching Regulation:	Synchronizes electrical pulses across inverter bridges to shape clean, balanced variable-frequency output currents destined for large AC motors.
Heavy Utility Operations:	Implemented across heavy industries running legacy Sami MegaStar or Stromberg motor drive racks, including mine hoists, metal-forming mills, and huge water pumps.
Electrical Noise Isolation:	Protects central digital control architectures by blocking dangerous feedback voltage spikes coming from high-amperage motor switching loops.

>>>Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
