Product category: ABB Hartmann & Braun Contronic Series

Product status: New and Original

Tariff code: 85371091

Product description:

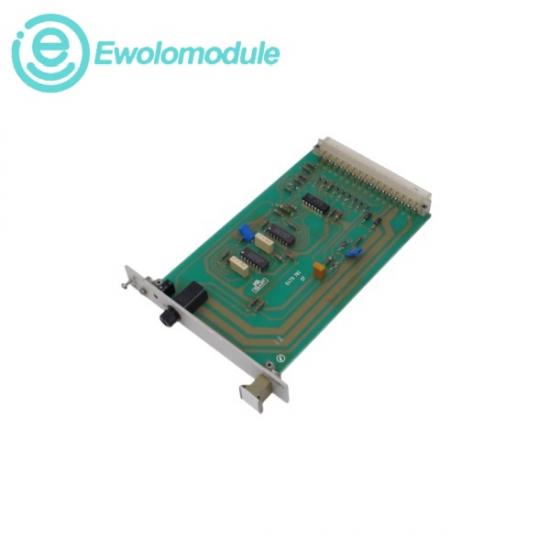

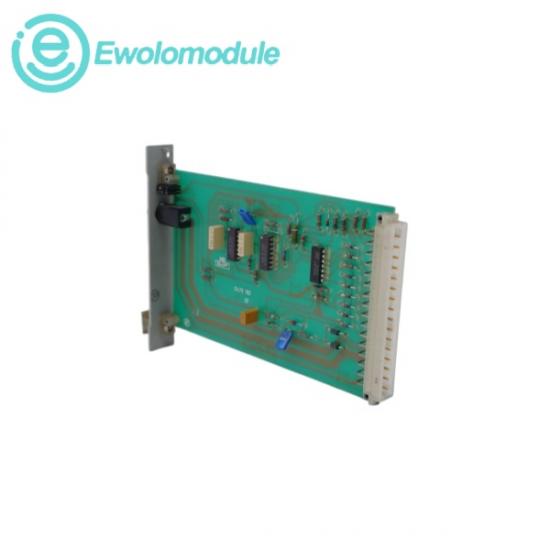

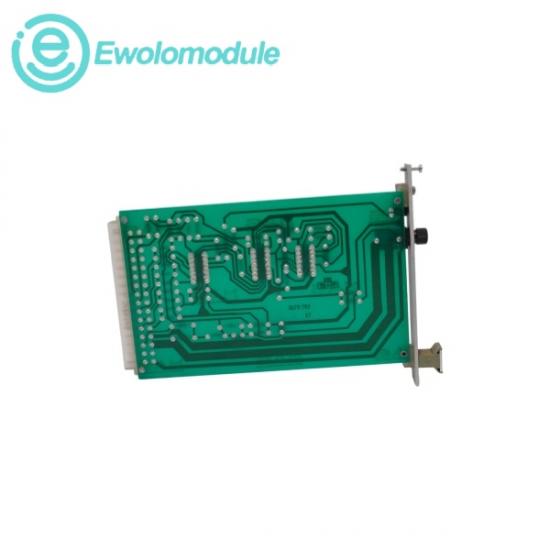

ABB VV01 VV 01 Digital Interface Module

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

Product Details

The ABB VV01 VV 01 is an industrial-grade process automation control board engineered to provide precise local management, command sequencing, and diagnostics for field valve actuators. Positioned within the control cabinet rather than serving as a protective circuit breaker, it establishes a reliable communication link with the central automation architecture using dedicated bus interface couplers (such as the MZ 03 or WSL01 modules). The board processes digital and analog feedback parameters directly from the field—including valve positioning loops and limit switches—to execute automated logic calculations for ball, butterfly, and globe valves without needing active host-processor intervention.

Data Details

Nominal System Operating Voltage: 24 V DC

Typical Current Draw: 330 mA

Maximum Peak Inrush Current: ≤ 2.0 A

Total Logic Power Dissipation: Approximately 8.0 W

AC LVDT Feedback Signal Voltage: 1.05 V to 8.96 V RMS

Frequency Feedback Input Range: 400 Hz to 15,000 H

Bi-Polar DC Input Target Options: ±6 V DC or ±12 V DC

Operational Ambient Temperature Limits: -20°C to +55°C

Storage Temperature Envelope: -40°C to +85°C

Relative Humidity Limits: 20% to 95% RH (Non-condensing)
