Product category: ABB Advant Open Control System Series

Product status: New and Original

Tariff code: 85371091

Product description:

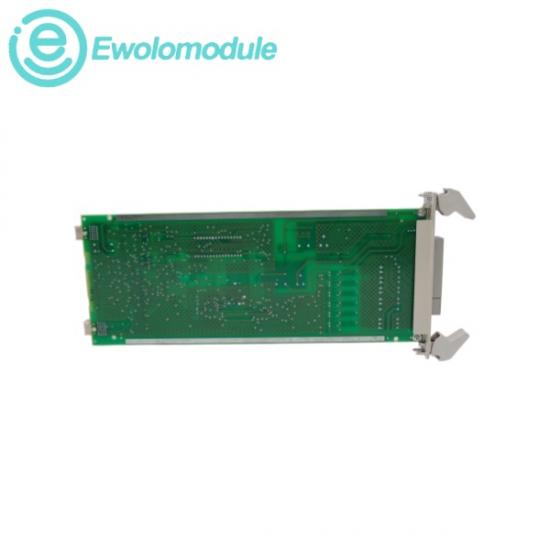

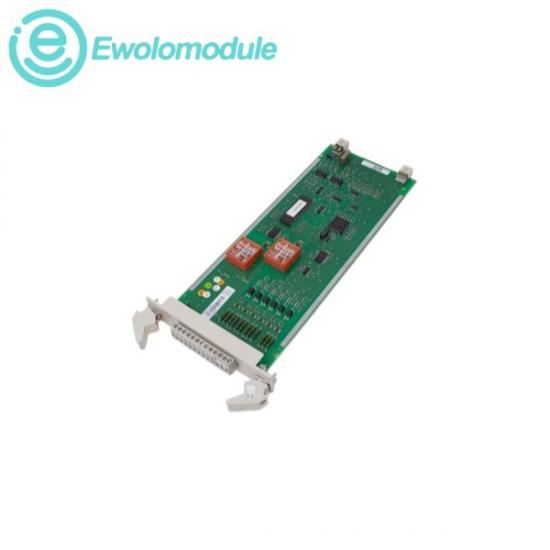

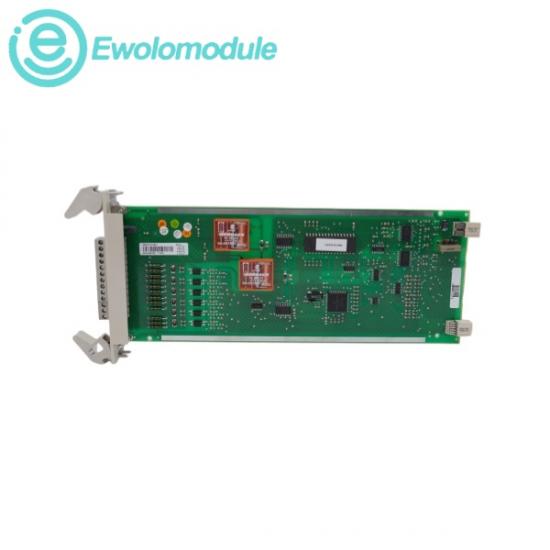

ABB TC520 3BSE001449R1 System Status Collector

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

Product Details

The ABB TC520 3BSE001449R1 is a specialized subrack infrastructure module designed to collect, process, and synchronize diagnostic telemetry and system status configurations within high-reliability distributed control environments. Installed directly into the controller's backplane bus, it continuously gathers structural performance data, backplane traffic statuses, and critical hardware errors, converting this information into streamlined serial packages transmitted across an isolated logic path. It features specialized external interface connections on the front panel—including dedicated differential logic pairs, synchronized minute-pulse clock inputs for network time alignment, and a hardwired watchdog RUN-relay output.

Data Details

Nominal Backplane Logic Voltage: +5 V DC (±5%)

External Power Supply Voltage: +24 V DC

Maximum Module Power Dissipation: ≤ 4.5 W

RUN-Relay Output Contact Rating (AC): Max 250 V AC / Max 2 A

RUN-Relay Output Contact Rating (DC): Max 120 V DC / Max 2 A

Input Signal Pulse Duration: Minimum 10 milliseconds

Operating Ambient Temperature Range: 0°C to +55°C

Storage and Transport Temperature Limits: -40°C to +70°C

Maximum Relative Humidity Limits: 5% to 95% RH (Non-condensing)
