Product Overview

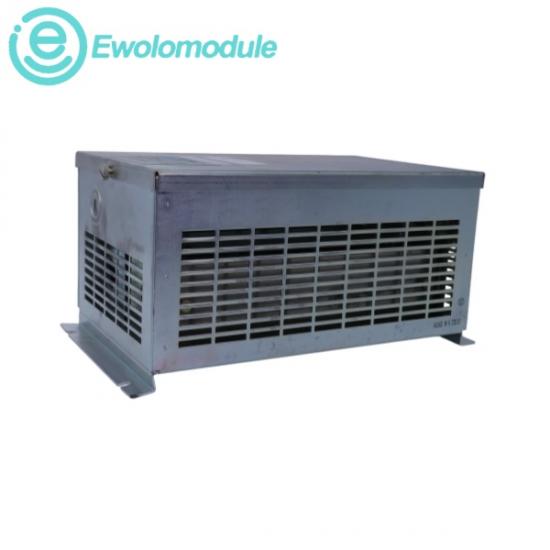

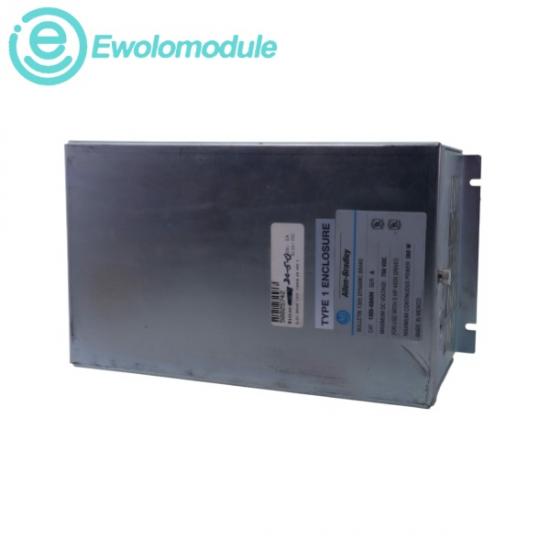

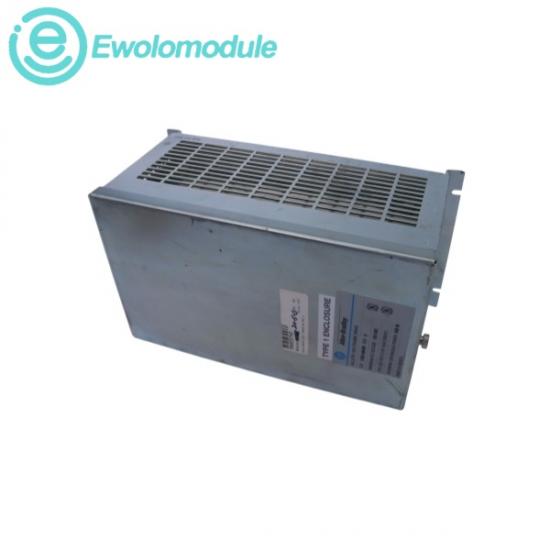

The Allen-Bradley 1305-KBA09 is a Dynamic Braking Kit designed as an accessory for the 1305 series Adjustable Frequency AC Drives. When a variable frequency drive forces an industrial motor to slow down rapidly, the motor acts as a generator, pumping energy back into the drive's intermediate DC bus link. This module works alongside the drive's internal chopper circuitry to redirect that dangerous excess voltage into heavy-duty resistive elements, converting the electrical energy into safe thermal dissipation. By capping the bus voltage, it prevents overvoltage faults, safeguards sensitive drive components, and enables controlled, high-torque braking cycles for heavy-inertia industrial machinery.

u Voltage Rating: 380 - 460V AC

u Power Rating: 4kW (5 HP)

u Power Dissipation: 360W

u Nominal DC Bus Voltage Activation: 375V DC to 750V DC

u Operating Ambient Temperature: Between 0 °C to +50 °C

u Storage Temperature Boundaries: From -40 °C to +70 °C

Industrial Applications

Application Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
