Product Overview

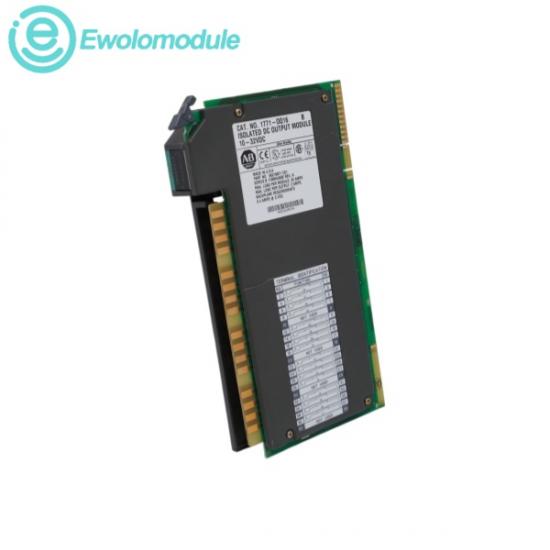

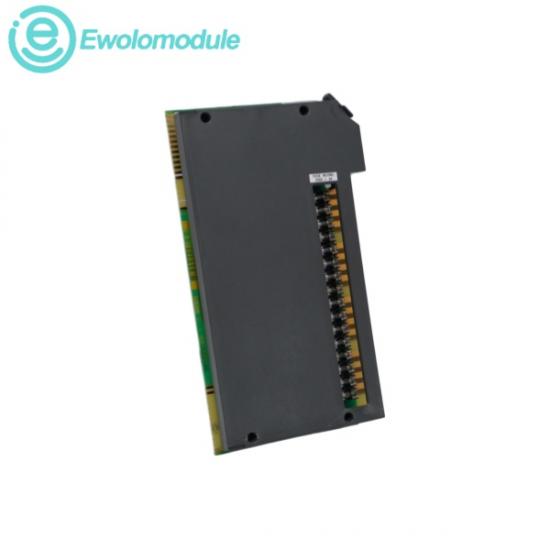

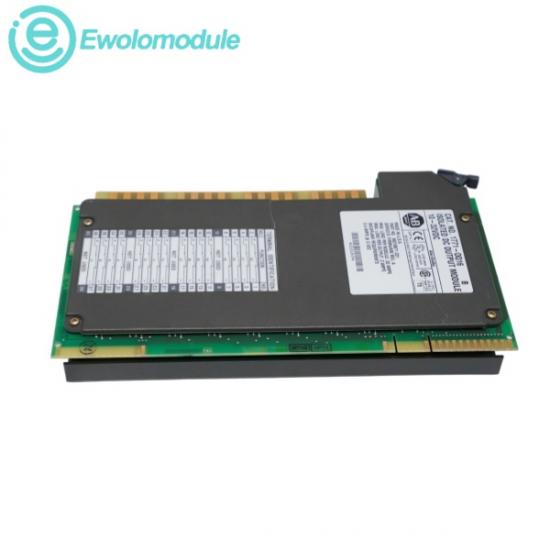

The Allen-Bradley 1771-OQ16 is a digital DC output module designed for the PLC-5 programmable controller system. This card provides 16 individually isolated output channels that function in either a sinking or sourcing configuration, allowing it to interface directly with external DC field actuators, control relays, and motor starter coils that operate on independent electrical loops. By isolating each individual circuit, the module effectively eliminates cross-talk, cuts down on ground loop distortions, and incorporates visual diagnostic indicators alongside robust internal protection limits to maximize uptime on heavy industrial assembly floors.

u Operating Output Voltage Range: Formulated to route field potentials from 10 to 32V DC

u Number of Outputs: 16 individually isolated channels

u Backplane Supply Current Draw: Requires a maximum of 400 mA drawing directly from the +5V DC chassis power rail slot

u Galvanic Isolation Voltages: Fully tested at a high standard of 1500V AC RMS

u Ambient Operating Temperature: Rated for continuous control panel operation from 0 °C to +60 °C

u Storage Temperature Boundaries: Endures non-operational shipping parameters between -40 °C to +85 °C

u Relative Humidity Limits: Operates safely within 5% to 95% non-condensing atmosphere constraints

Industrial Applications

Application Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
