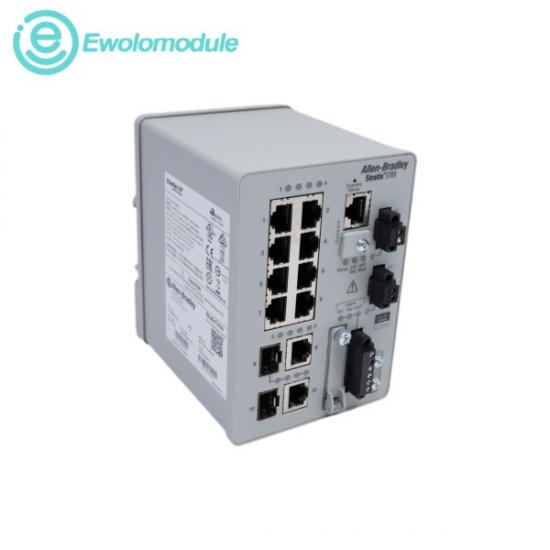

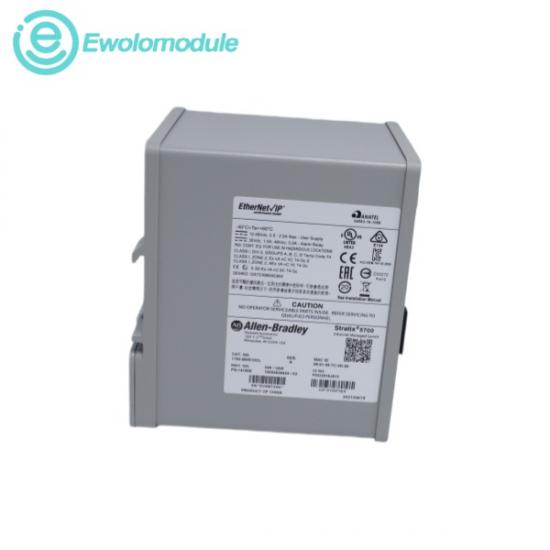

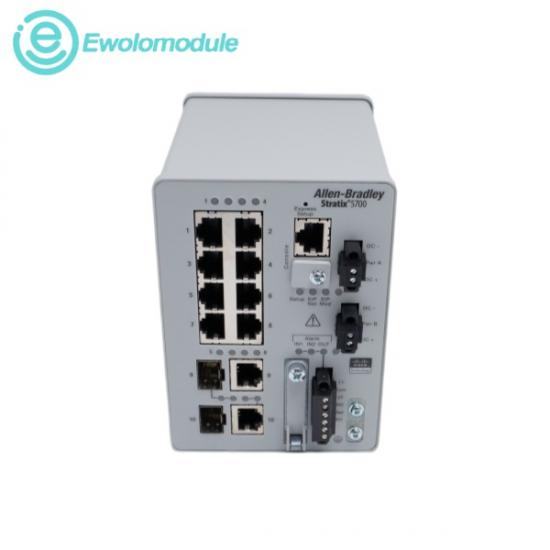

The Allen-Bradley 1783-BMS10CL is a Stratix 5700 managed industrial Ethernet switch that provides 10 ports. It runs Lite firmware for essential managed switching functions without advanced features like CIP Sync or NAT. Housed in an IP30-rated open-style enclosure, it supports DIN-rail mounting and operates in extreme temperatures from -40 °C to 60 °C. It delivers premium diagnostics via predefined Logix tags, FactoryTalk View faceplates for status monitoring, and Add-On Profiles for seamless integration into Rockwell Automation's Integrated Architecture.

❖ Nominal Input Voltage: 12V to 48V DC

❖ Operating Current: 0.5A to 2.0A max

❖ Power Consumption: Approximately 15W maximum

❖ Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)

❖ Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)

❖ Relative Humidity: 5% to 95% non-condensing

Ø Industrial Automation Systems: Perfect for connecting programmable logic controllers (PLCs), human-machine interfaces (HMIs), and sensory devices on the factory floor.

Ø Harsh Industrial Environments: Ideal for deployment in extreme temperature conditions, such as oil and gas facilities, water treatment plants, and outdoor control cabinets.

Ø Machine-Level Networking: Tailored for integration into Rockwell Automation’s Integrated Architecture, allowing quick configuration via predefined Logix tags and FactoryTalk View faceplates.
