ALLEN-BRADLEY
1336-BDB-SP5C
Gate Drive Board
SYSTEM FAMILY
1336 Drive Series
CONTROL FUNCTION
Power-stage gate-command board for legacy AC drive hardware

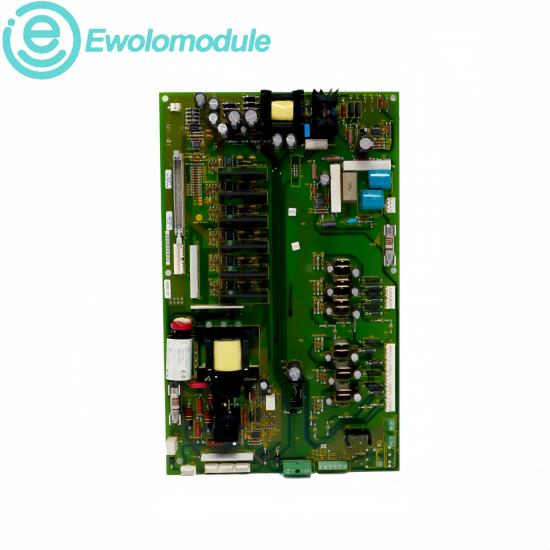

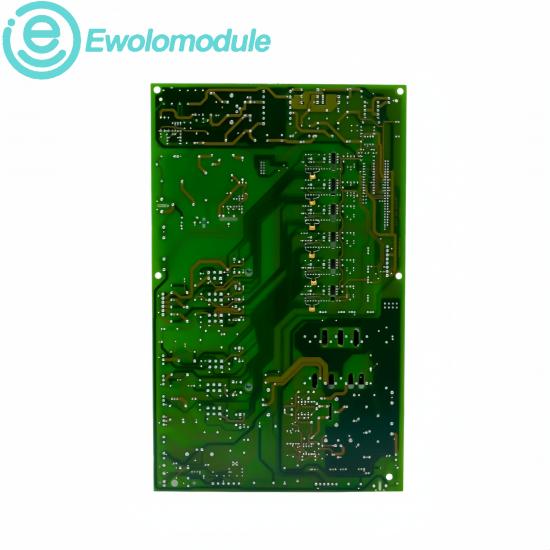

Allen-Bradley 1336-BDB-SP5C gate drive board for compatible 1336 AC drive power stages.
PRODUCT ROLE
Gate Drive Board
SYSTEM FIT
Match the drive family, frame, voltage class and board revision before replacement
Firmware & Updates
The SP5C is power-interface hardware and is not updated as an independent firmware device. Compatibility depends on the 1336 drive family, control-board revision and installed power-stage configuration.
Before replacement, document the drive catalog number, frame, voltage class and board revision. Use controlled ESD handling, retain connector positions and complete the drive manufacturer’s gate-drive checks before restart.
Application Scenarios
Used in compatible Allen-Bradley 1336 drives to translate control commands into insulated gate-drive signals for the power semiconductor stage.
Typical contexts include legacy variable-speed motor systems, conveyor lines, pumps and process machinery where the installed 1336 drive architecture remains in service.
Technical data
BOARD FUNCTION
Gate-driver control
VOLTAGE CLASS
460V AC
MOTOR RATING
25HP
FRAME FIT
Frame B
DRIVE FAMILIES
1336 PLUS / FORCE
COATING
Conformal-coated PCB
REPLACEMENT
1336-BDB-SP5D
STATUS
Obsolete legacy spare
Verify the complete product marking, installed-system revision and field configuration before commissioning.
Brand characteristics
Application fields
Drive heritage
Allen-Bradley 1336 hardware supports established industrial motor-control fleets.
Material handling
Conveyor and transfer-drive service.
Power integration
Gate-drive circuitry coordinates controller commands with the inverter power stage.
Water systems
Pump and blower speed-control maintenance.
Revision control
Catalog suffix, frame and voltage class define the service configuration.
Process lines
Legacy variable-speed production equipment.
Lifecycle continuity
Matched boards support planned maintenance of legacy VFD assets.
Plant modernization
Bridge support before complete drive migration.
