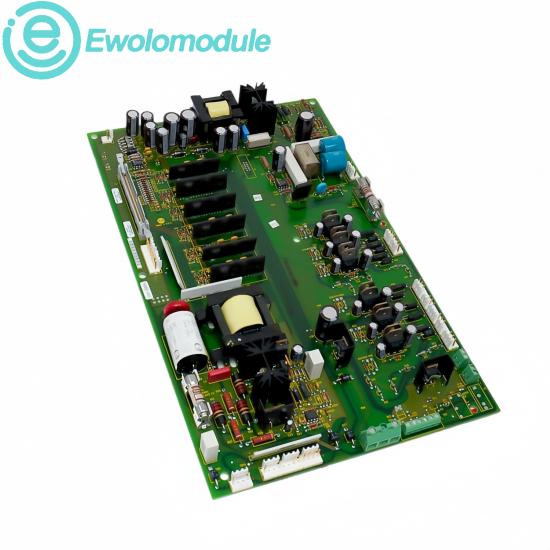

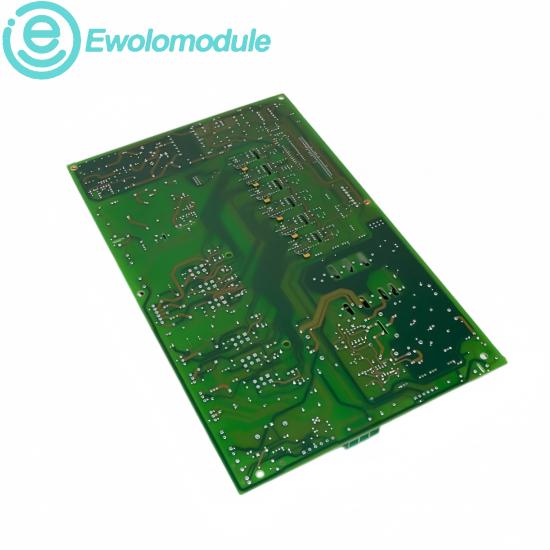

ALLEN-BRADLEY
1336-BDB-SP5D
Gate Drive Board
SYSTEM FAMILY
1336STE / 1336F
CONTROL FUNCTION
Series-compatible gate-driver PCB for 460V 25HP drive power stages
Allen-Bradley 1336-BDB-SP5D 460V 25HP gate drive board for compatible 1336STE and 1336F drives.
PRODUCT ROLE
Gate Drive Board
SYSTEM FIT
Confirm Series C or later 1336STE, or compatible 1336F hardware
Firmware & Updates
This board contains drive-interface hardware rather than a user-loadable firmware package. Service acceptance depends on catalog suffix, drive series and the installed control and power-stage revisions.
Verify the complete drive nameplate and document connector locations before removal. After installation, perform insulation, precharge and low-speed functional checks under the approved maintenance procedure.
Application Scenarios
Applied in 460V 25HP Allen-Bradley 1336 drive systems for switching-command distribution to the inverter power devices.
Suitable for replacement work on pumps, fans, mixers and conveyors where Series-compatible 1336STE or 1336F equipment is retained.
Technical data
BOARD FUNCTION
Gate-driver control
VOLTAGE CLASS
460V AC
MOTOR RATING
25HP
1336STE FIT
Series C and later
1336F FIT
Series A and later
POWER STAGE
Three-phase inverter
PREDECESSOR
1336-BDB-SP5C
INSTALLATION
Internal drive PCB
Verify the complete product marking, installed-system revision and field configuration before commissioning.
Brand characteristics
Application fields
Industrial drives
Allen-Bradley platforms combine modular control and serviceable power assemblies.
Pumps & fans
460V variable-speed auxiliary drives.
Series discipline
Compatibility is controlled by drive family, frame, horsepower and revision.
Conveyors
Material-flow and packaging line control.
Service design
Replaceable boards support targeted repair of established VFD systems.
Process equipment
Mixers, extruders and machine auxiliaries.
Installed base
Long-term plant fleets benefit from catalog-matched spare planning.
Outage service
Planned replacement of failed gate-drive hardware.
