PRODUCT DETAILS

Email : sales9@apterpower.com

PRODUCT PROFILE

SERIES

1336 drive family

DEVICE CLASS

Precharge circuit board

SYSTEM ROLE

DC-bus inrush control

ALLEN-BRADLEY DRIVE SERVICE COMPONENT

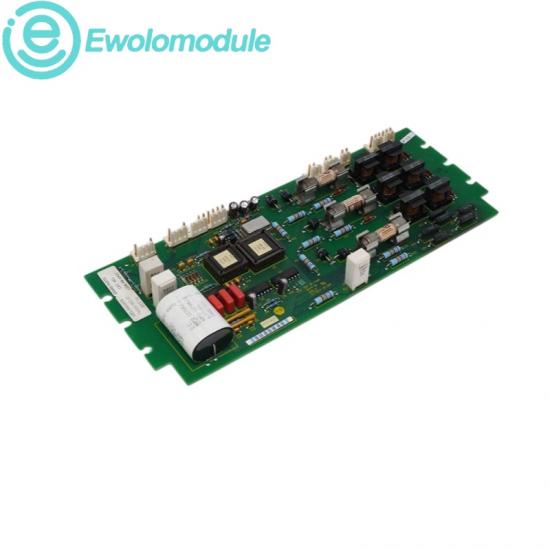

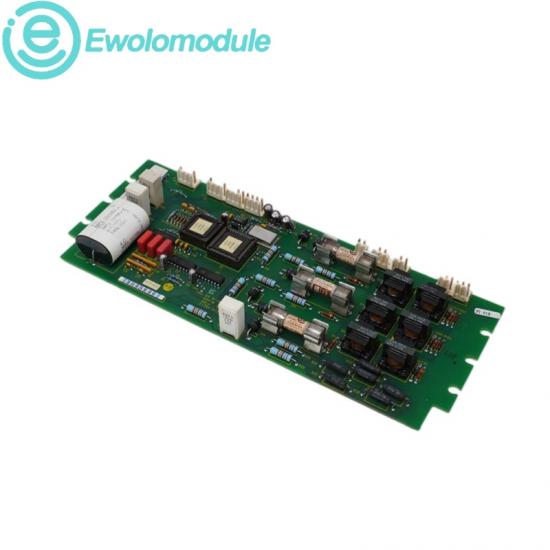

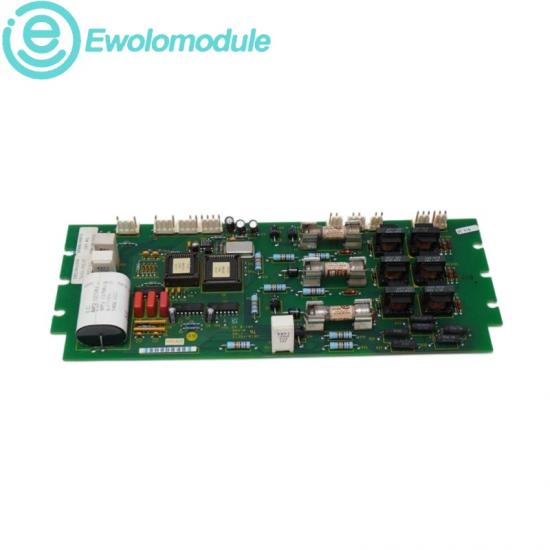

Allen-Bradley 1336-PB-SP2C 74101-502-57
Precharge Circuit Board

A 460 V AC precharge board for compatible Allen-Bradley 1336 adjustable-frequency drives, supporting controlled DC-bus charging before normal drive operation.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

1336-PB-SP2B 74101-502-51

1336-PB-SP6C 74101-181-51

1336S-MCB-SPI 74100-071-51

1336-MCB-SP1 74100-071-51

SPECIFICATIONS

Email : sales9@apterpower.com

CONTROLLED PRECHARGE FUNCTION

Service-board replacement for compatible 1336 drive power sections

Operating environment

Install inside the designated drive enclosure in a clean, dry industrial cabinet. Match the 1336 drive family, voltage class, board revision, connector layout and mounting position before replacement. Keep ventilation paths clear and protect the assembly from condensation, conductive dust and uncontrolled vibration.

Safety & Compliance

Isolate incoming power, apply lockout/tagout and verify that the DC bus is fully discharged before opening the drive. Use grounded ESD protection, preserve conductor and connector positions, and follow the applicable 1336 service instructions. Work should be completed by qualified drive-service personnel.

Official technical data

Product type

Precharge circuit board

Catalog number

1336-PB-SP2C

Assembly number

74101-502-57

Voltage class

460 V AC

Drive range

60–600 HP

Backplane current

50 mA

Surge current

3 A

System use

1336-series drive service

BRAND & APPLICATIONS

Email : sales9@apterpower.com

Brand characteristics

Allen-Bradley 1336 service assemblies use catalog-defined board identities, documented drive architecture and revision-specific replacement practices.

Drive-specific design

Purpose-built service boards support established 1336 power and control assemblies.

Catalog traceability

Complete catalog and assembly numbers simplify replacement matching.

Lifecycle support

Documented spare-board identities help maintain legacy drive installations.

Application fields

1336-PB-SP2C supports controlled DC-bus charging where compatible Allen-Bradley 1336 drives remain in active industrial service.
