GU-D15 80173-110-01 G651885A

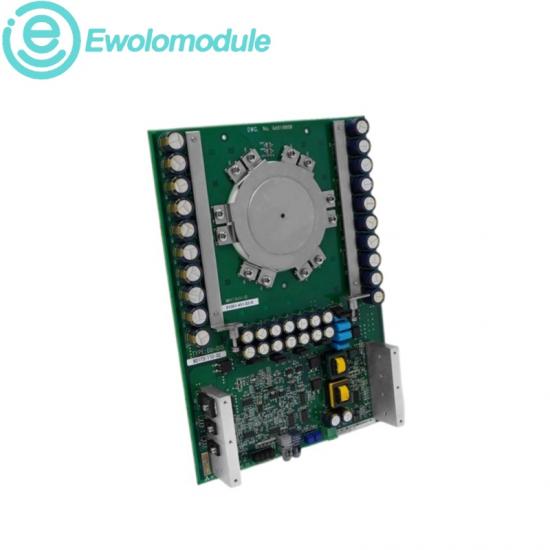

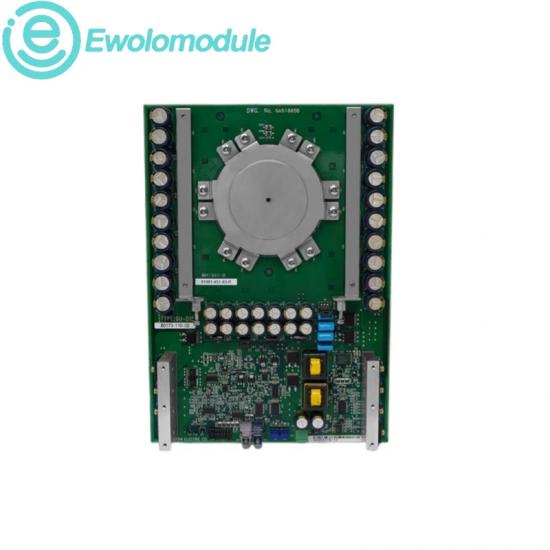

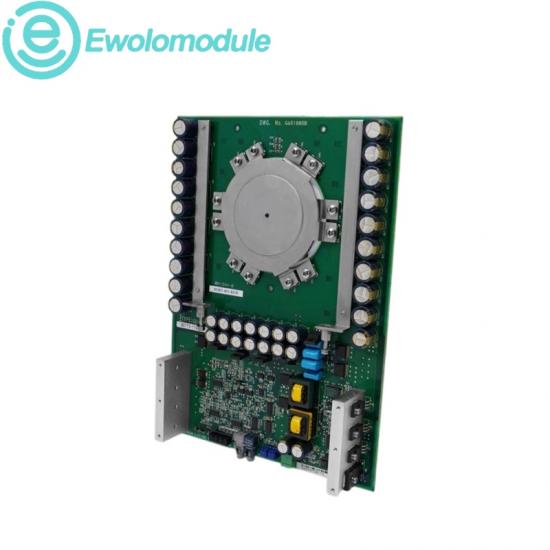

Gate Commutated Turn-Off Board
A power-semiconductor gate-control board for compatible PowerFlex 7000 medium-voltage drive power cells.
|
OPERATING PURPOSE
Semiconductor gate control
Conditions and routes gate commands for the power devices in the drive power cell.
|
SYSTEM POSITION
Medium-voltage drive assembly
Installed as an internal board in the compatible PowerFlex 7000 cabinet.
|
| 02 |
DIAGNOSTICS, PROTECTION & INSTALLATION |
SERVICE PLANNING |
|
Diagnostics & Protection
Gate or firing faults require qualified medium-voltage service personnel. Lock out the drive, verify complete discharge and use grounded ESD controls before inspecting indicators, fiber or gate connections, power-cell hardware and the mating connectors.
Compare the fault history with adjacent cells and verify the power device before replacing the board; do not bypass protective interlocks.
|
Installation & Upgrades
Match GU-D15, board number 80173-110-01 and assembly code G651885A exactly. Preserve connector positions, insulation distances and the documented power-cell orientation.
Handle only by the edges, seat all connectors without force and complete the drive manufacturer commissioning checks before energizing the medium-voltage system.
|
Technical data
| Primary reference |
GU-D15 |
Board number |
80173-110-01 |
| Assembly code |
G651885A |
System family |
PowerFlex 7000 |
| Control role |
Semiconductor gate control |
Installation |
Drive power cell / cabinet |
Verify all ratings, connections and installed-system documentation before commissioning.
| 03 |
BRAND CHARACTERISTICS & APPLICATION FIELDS |
USE-CASE OVERVIEW |
|
Brand characteristics
| Drive-specific design |
Board functions align with PowerFlex 7000 power-cell architecture. |
| Gate-control coordination |
Command paths support organized semiconductor switching. |
| Traceable board identity |
Multiple reference codes help verify installed hardware. |
| Serviceable assembly |
Connectorized construction supports controlled replacement. |
|
Application fields
| Medium-voltage drives |
Gate control in compatible PowerFlex 7000 systems. |
| Heavy industry |
Large motor-drive service in process equipment. |
| Power generation |
Medium-voltage auxiliary-drive applications. |
| Lifecycle maintenance |
Board replacement during planned drive overhaul. |
|
