ALLEN-BRADLEY · PRODUCT DETAILS

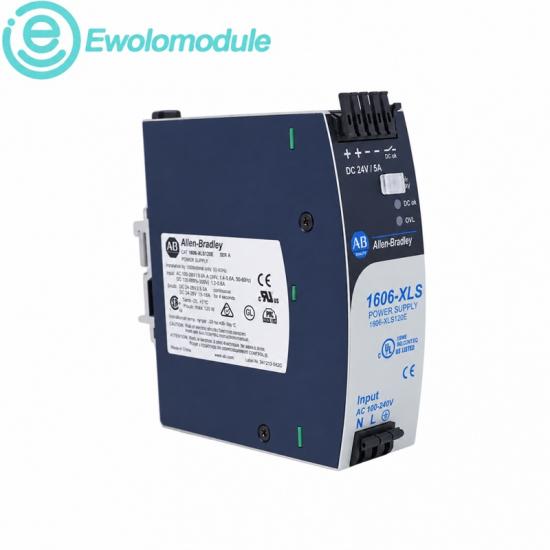

Allen-Bradley 1606-XLS120E 24V DC 5A Power Supply
DIN-rail performance power supply delivering 24-28 V DC at up to 5 A with short-term power boost.
1606-XLS · 120W POWER
DIRECT CALL
+86 17359287459
EMAIL
sales9@apterpower.com
Product snapshot
The 1606-XLS120E converts wide-range AC or DC input to an adjustable 24-28 V DC output. It delivers 120 W continuously and up to 180 W briefly for demanding industrial loads.
System role
Use it for control, instrumentation and communication loads that require a compact DIN-rail supply. Confirm input protection, load current and enclosure ventilation before installation.
Explore other Allen-Bradley products →
02 / OPERATION & CHANGEOVER
Diagnostics, protection and installation planning
Diagnostics & Protection

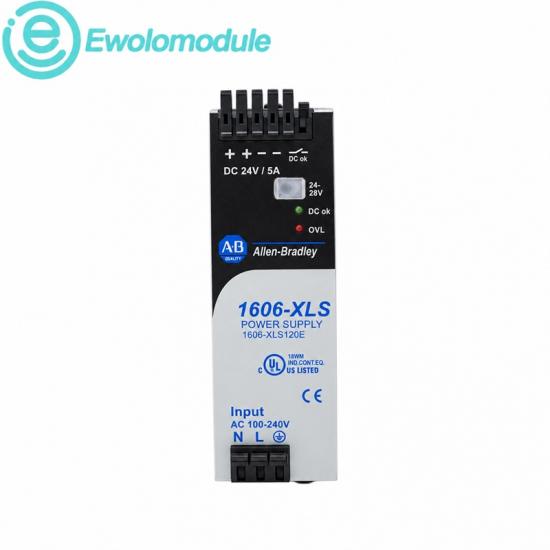

Use the green DC-OK indicator, red overload indicator and dry DC-OK contact to distinguish supply, overload and downstream wiring faults. Measure input and output voltage under load before replacement.
Electronic protection covers overload, no-load and short-circuit conditions. De-energize the input, verify protective earth and allow the unit to cool before wiring or removal.
Installation & Upgrades

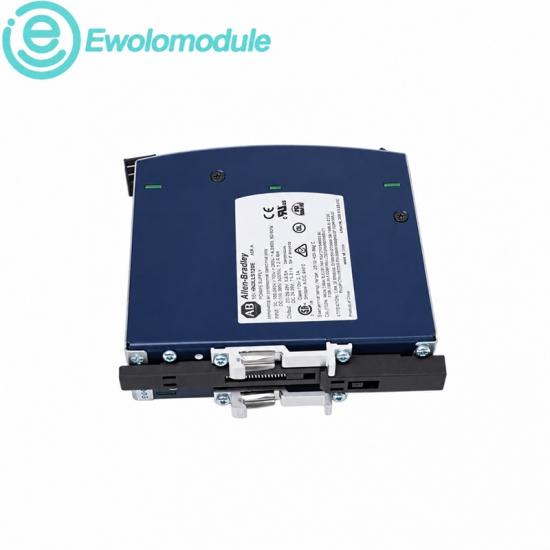

Mount on a 35 mm DIN rail with input terminals at the bottom and output at the top. Maintain airflow and documented spacing; alternate orientations require derating.
Set the output within 24-28 V DC, verify polarity and size branch protection for the connected load. Test DC-OK signaling and peak-load behavior before commissioning.
Technical profile
Product typePerformance power supply
Output24-28V DC
Rated current5A at 24V
Continuous power120W
Power boost180W typical 4s
AC input100-240V AC
DC input110-300V DC
EfficiencyUp to 92.7%
RippleMax. 50mVpp
Operating range-25...70°C
Mounting35mm DIN rail
ProtectionOverload / short circuit
03 / BRAND & APPLICATION
Industrial continuity and application planning
Allen-Bradley brand characteristics
Allen-Bradley 1606 power supplies combine compact DIN-rail construction, industrial approvals, status diagnostics and reserve power for demanding control-system loads.
Application fields
Typical applications include PLC cabinets, machine control, instrumentation, communication equipment, solenoids and contactors in manufacturing and process automation.
