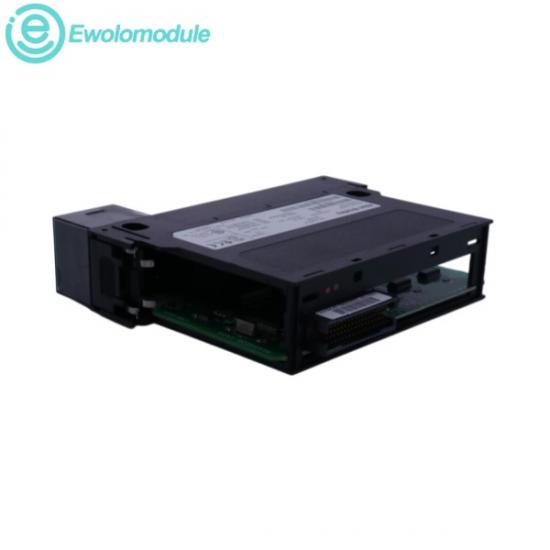

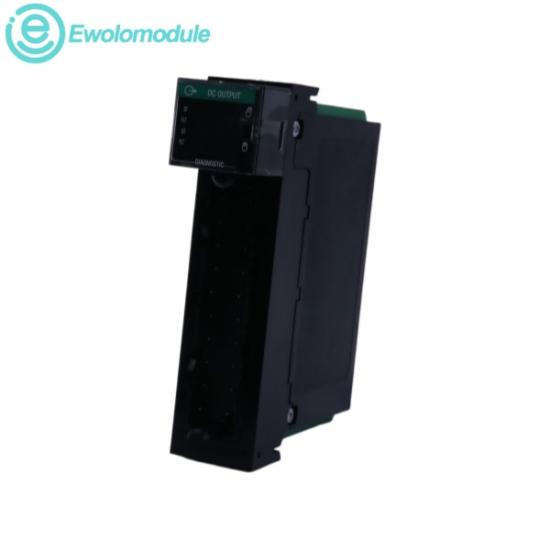

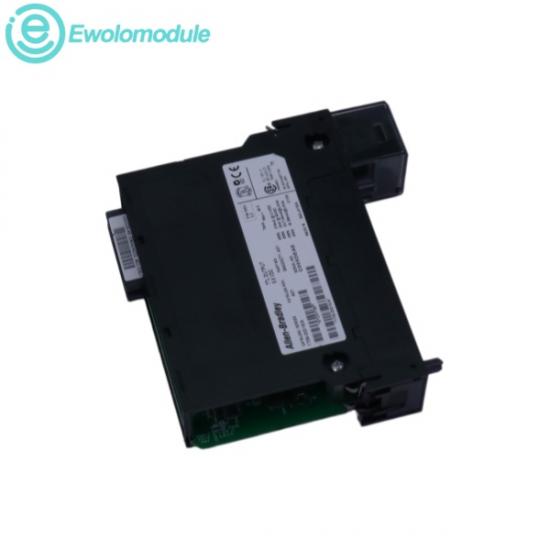

The Allen-Bradley 1756-OG16 is a chassis-based, 16-point digital output module designed for the ControlLogix control platform. It provides 5V DC TTL outputs arranged in two isolated groups of 8 channels each. Operating with an inverted "Low-True" logic configuration, this module interfaces industrial controllers directly with logic-level field devices. It features Removal and Insertion Under Power functionality, allowing technicians to replace the unit without disrupting active process operations.

² Number of Outputs: 16 digital points divided into 2 groups

² Voltage Category: 5V DC TTL (Low = True/On; 0 to +0.4V DC)

² Operating Voltage Range: 4.5V DC to 5.5V DC source voltage, with a maximum ripple of 50 mV P-P

² Backplane Current Draw: Draws 250 mA at 5.1V DC and 0 mA at 24V DC

² Operating Temperature Range: 0°C to +60°C (32°F to 140°F)

² Storage Temperature Range: -40°C to +85°C (-40°F to 185°F)

² Output Delay Time (Resistive Load): Off to On: 45 μs nominal / 450 μs maximum

On to Off: 145 μs nominal / 700 μs maximum

➦ Robotic Integration Panels: Used as a low-voltage signaling link to trigger internal controllers or optical sensors inside advanced motion-control cells.

➦ Legacy System Migration: Serves as a direct interface bridge connecting modernized ControlLogix architectures with older 5V instrumentation devices.

➦ High-Speed Semiconductor Testing: Interfaces with TTL-level laboratory instruments, wafer sorters, and microchip test fixtures.
