Functional Description

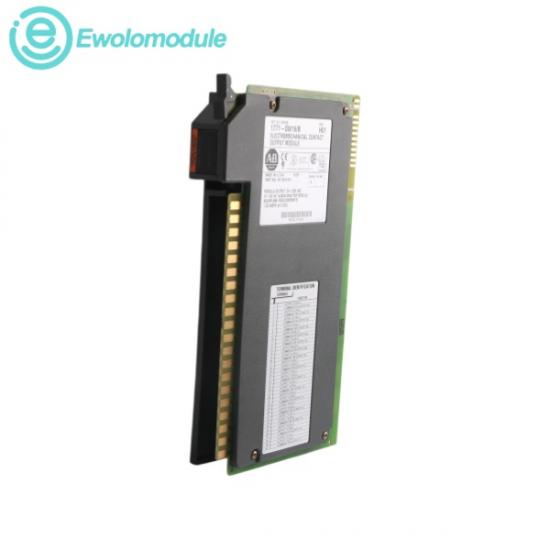

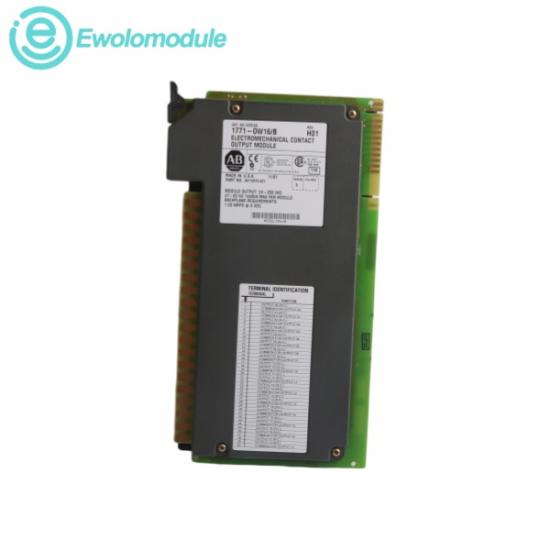

The Allen-Bradley 1771-OW16 is a heavy-duty, chassis-mounted discrete contact output module engineered to switch independent external electrical loads via mechanical relay contacts. Operating as a channel-isolated interface, the module provides 16 individual Form A (normally-open) relay contacts where each channel is completely electrically isolated from the others, allowing the control of mixed AC and DC voltages on a single board. Designed for high-reliability industrial automation environments, it interfaces directly with the PLC-5 backplane, incorporating internal transient suppression circuits and robust optical isolation arrays to protect the central processing unit from heavy inductive load feedback, field surges, and grounding loop interference.

(1) Number of Outputs: 16 discrete digital outputs

(2) Operational Voltage Ranges: Automatically handles 24V to 250V AC

(3) Continuous Amperage Rating: 1.0 Ampere per channel continuous load capacity

(4) Backplane Logic Current Draw: Consumes 1.5 Amperes maximum from the internal +5V DC chassis backplane bus

(5) Operating Temperature Range: 0°C to 60°C (32°F to 140°F)

(6) Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)

Applications by Industry

v Multi-Voltage Industrial Control: Extensively used to simultaneously actuate mixed AC and DC devices—such as 120VAC pilot lights and 24VDC solenoids—on the same hardware module without cross-talk.

v Inductive Relay Control Loops: Deployed to switch heavy-duty inductive machinery parts, including physical motor starters, industrial contactors, and high-capacity fluid valves.

v Chassis Backbone Isolation Protection: Installed in continuous chemical, water treatment, or energy generation facilities requiring strict 1500V isolation limits to prevent field faults from halting the master PLC core.
