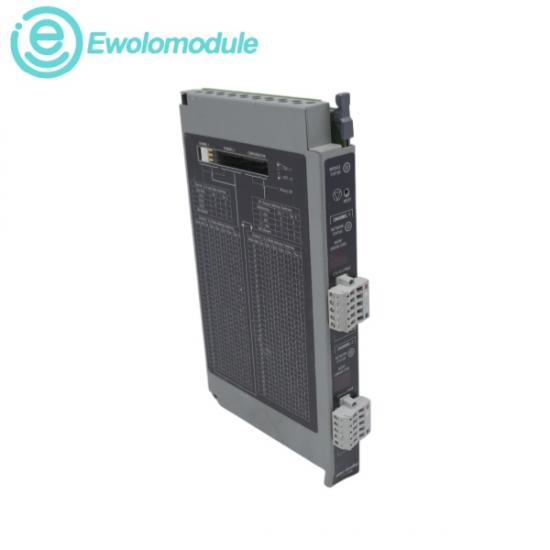

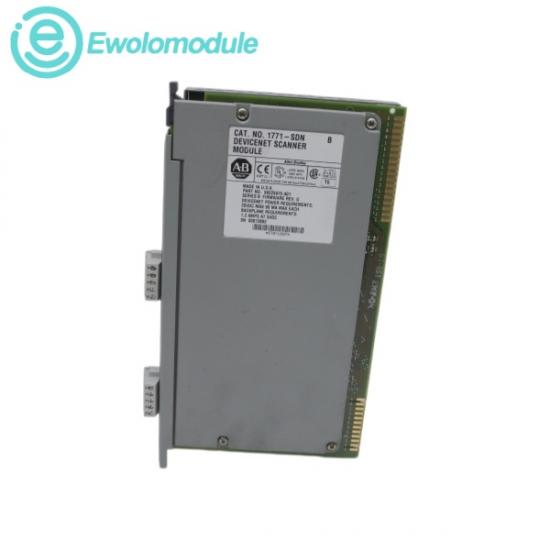

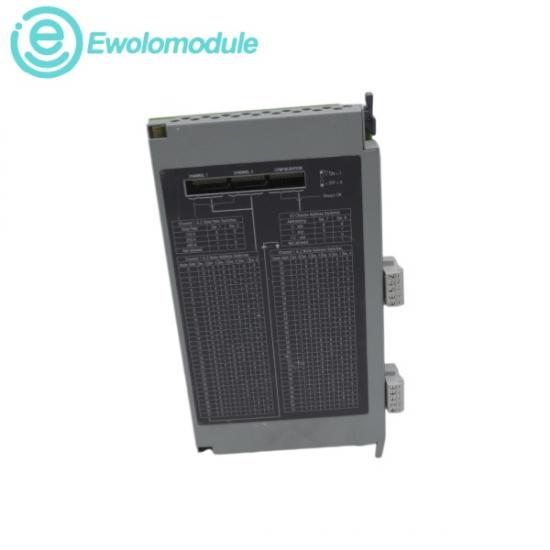

The Allen-Bradley 1771-SDN is a 2-channel DeviceNet scanner module that provides a communication interface between a PLC-5 programmable controller and devices on a DeviceNet network. It installs directly into a standard 1771 I/O chassis, managing automated data traffic by reading inputs from and writing outputs to diverse industrial field sensors, actuators, and motor starters without manual processor intervention. The unit independently executes cyclic I/O, change-of-state, and pass-through messaging protocols across multiple software-configurable node addresses, offloading intensive communication loop overhead from the core PLC central processing unit to maintain ultra-fast master logic execution times.

² Distributed Fieldbus Networking: Used as a centralized communications master to aggregate discrete or analog signals from widespread DeviceNet-enabled pneumatic valves and instrumentation.

² Legacy Processor Modernization: Implemented to upgrade existing Allen-Bradley PLC-5 control panels, allowing them to interface with modern smart sensors without replacing the core chassis.

² Device Replacement Automation: Utilizes embedded Auto Device Replacement (ADR) software configurations to automatically download parameters and node addresses to new field hardware during live maintenance.
