PLC-5 PROCESS WEIGHING

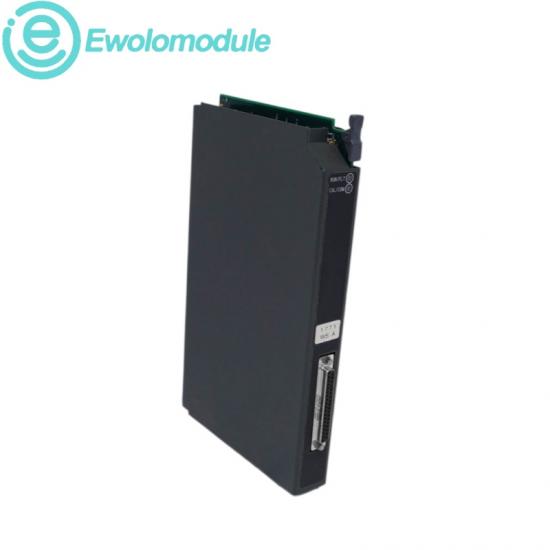

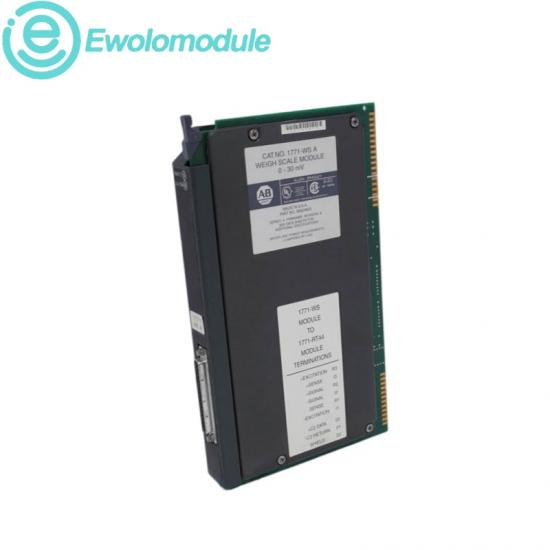

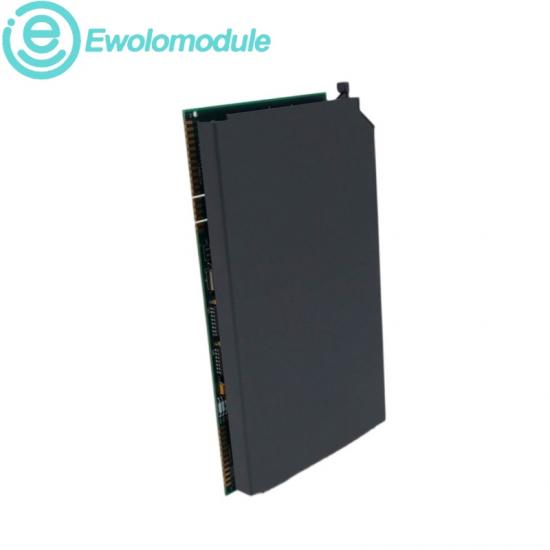

Allen-Bradley 1771-WS
PLC-5 Weigh Scale Module
|
SYSTEM POSITION
Chassis-Based Load-Cell Interface
Conditions load-cell signals, performs high-resolution weight conversion and exchanges configuration and status by block transfer.
|
| Product snapshot |
Intelligent single-slot weighing module for compatible PLC-5 systems. Confirm chassis, processor, remote termination panel, load-cell configuration and addressing mode before installation. |
| 02 |
SAFETY & APPLICATIONS |
INSTALLATION PLANNING |
| Safety & Compliance |
Application Scenarios |
|
LOAD-CELL ISOLATION
Remove chassis power and isolate excitation wiring before disconnecting the module or termination panel.
|
BATCHING AND BLENDING
Acquire vessel weight for recipe and material-control sequences.
|
|
SHIELD GROUNDING
Ground the load-cell cable shield at one documented point to control noise and ground loops.
|
FILLING AND DISPENSING
Support accurate transfer, dosing and package-filling operations.
|
|
CALIBRATION CONTROL
Preserve calibration records and verify scale zero and span after hardware replacement.
|
LEVEL BY WEIGHT
Calculate inventory or vessel level from calibrated load-cell data.
|
Technical data
|
INPUT SIGNAL RANGE
-0.3mV to +30.3mVDC
|
BACKPLANE SUPPLY
5VDC ±5%
|
BACKPLANE CURRENT
1.5A maximum
|
|
EXCITATION OUTPUT
10VDC ±5%
|
INTERNAL RESOLUTION
1:1,048,576
|
CONVERSION RATE
20 updates/s
|
| 03 |
BRAND & APPLICATIONS |
PRODUCT REFERENCES |
| Brand characteristics |
Application fields |
|
PLC-5 integration
Direct chassis installation links industrial weighing to established control programs.
|
Food and beverage
Batching, blending and vessel weighing in recipe-based processes.
|
|
High-resolution conversion
Fine internal measurement resolution supports stable process-weight data.
|
Bulk materials
Hopper, silo and conveyor-scale integration.
|
|
Flexible calibration
Electronic and traditional calibration methods support varied plant practices.
|
Chemical processing
Controlled dosing and formulation from strain-gage load cells.
|
|
Diagnostic indication
Run, fault, calibration and communication states assist commissioning.
|
Packaging lines
Check weighing and filling applications connected to PLC-5 control.
|
