PRODUCT DETAILS

ALLEN-BRADLEY · INDUSTRIAL AUTOMATION

FLEX I/O AC INPUT

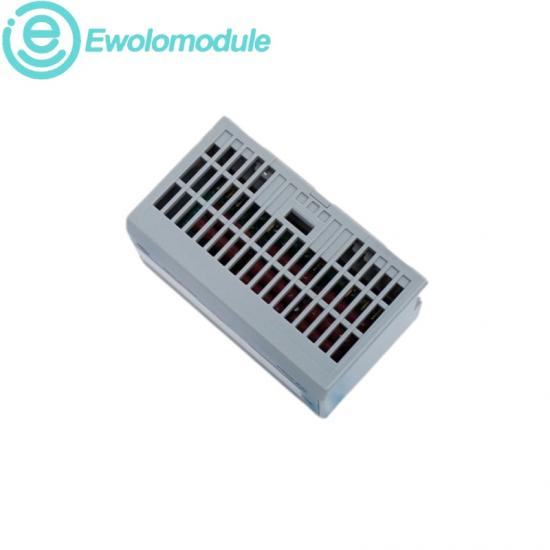

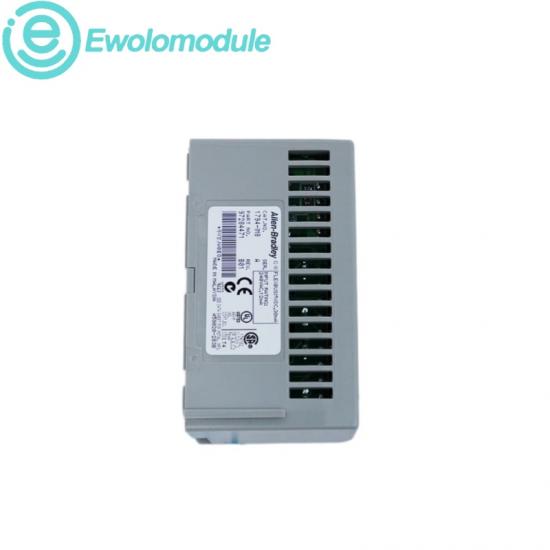

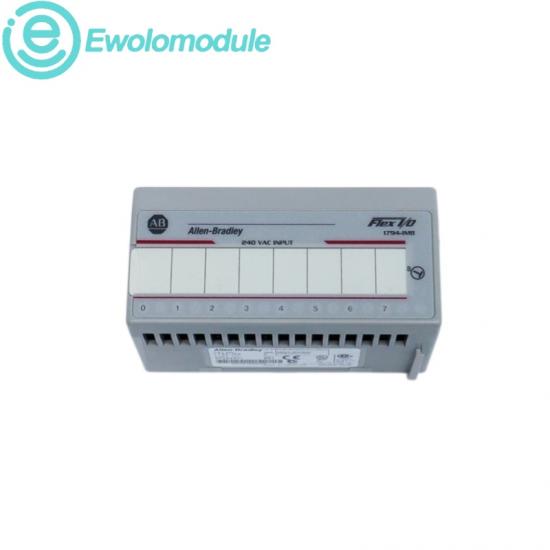

Allen-Bradley 1794-IM8

FLEX I/O 220VAC 8-Point Input Module

SYSTEM POSITION

Distributed High-Voltage Input

Monitors eight AC field signals and returns their states through a compatible FLEX I/O adapter and terminal base.

Product snapshot

Compact distributed-input module for established FLEX I/O systems. Confirm terminal-base type, adapter compatibility, input voltage, keying and field wiring before installation.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL

+86 17359287459

sales9@apterpower.com

Explore other Allen-Bradley products →

SAFETY & APPLICATIONS

INSTALLATION PLANNING

Safety & Compliance

Application Scenarios

AC FIELD ISOLATION

De-energize every input circuit and verify absence of voltage before removing the module.

DISTRIBUTED AC INPUTS

Collect contactor, relay and selector-switch states near industrial machinery.

ENCLOSURE CONTROL

Install in a suitable industrial enclosure and maintain the specified ambient range.

LEGACY FLEX I/O SERVICE

Replace a failed high-voltage input module in an established node.

WIRING PRACTICE

Use the published conductor category, grounding and separation rules for AC field circuits.

PANEL CONSOLIDATION

Reduce long field-wire runs by locating input acquisition near the equipment.

Technical data

INPUT CAPACITY

8 points

INPUT VOLTAGE RANGE

159VAC to 264VAC

INPUT FREQUENCY

47Hz to 63Hz

MAXIMUM OFF-STATE VOLTAGE

40VAC

NOMINAL INPUT CURRENT

10mA at 220VAC

FLEXBUS CURRENT

30mA at 5VDC

BRAND & APPLICATIONS

PRODUCT REFERENCES

Brand characteristics

Application fields

Modular distributed I/O

FLEX I/O separates the adapter, field interface and terminal base for service flexibility.

Machine automation

Monitor AC-powered field devices on packaging and process equipment.

Channel indication

Individual status indicators support fast checks of incoming field states.

Material handling

Distributed sensing for conveyors, lifts and transfer machinery.

Configurable filtering

Selectable input delay settings help adapt signal response to the application.

Utility systems

Remote collection of high-voltage discrete states in plant panels.

Documented interoperability

Terminal-base and adapter references support controlled node maintenance.

Lifecycle maintenance

Like-for-like replacement in installed FLEX I/O architectures.
