1336 DRIVE PRECHARGE

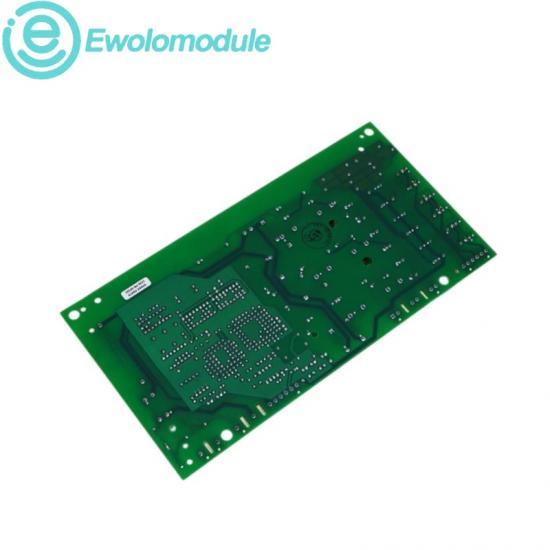

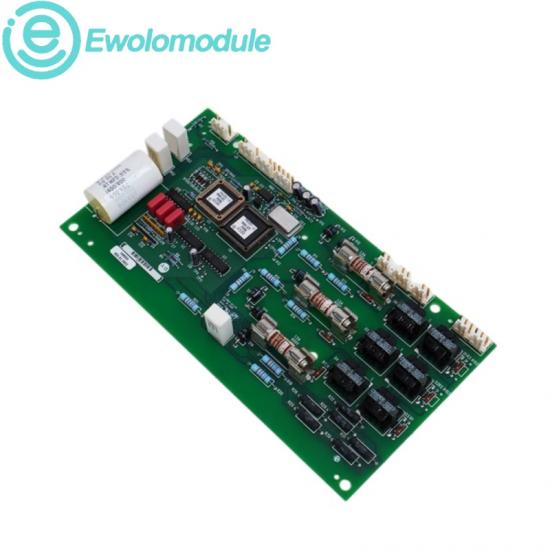

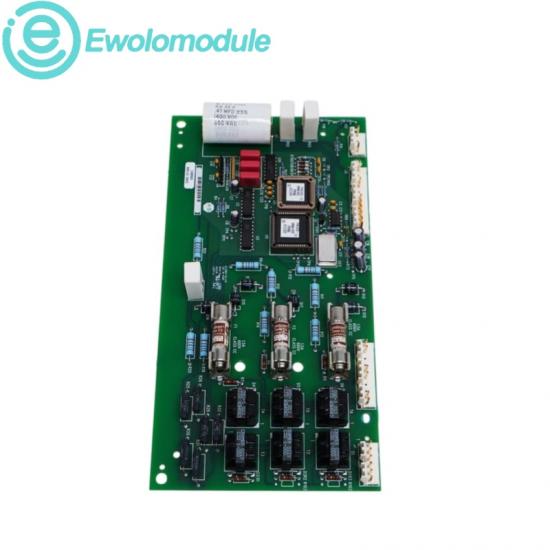

Allen-Bradley 1336-PB-SP23C
Precharge Circuit Board
|
SYSTEM POSITION
460V Drive DC-Bus Charging
Controls the initial charging path that limits inrush current before the main drive power stage is enabled.
|
| Product snapshot |
Service-replacement circuit board for established 1336 drive families. Match the complete suffix, series letter, frame, power range and installed connector arrangement before commissioning. |
| 02 |
SAFETY & APPLICATIONS |
INSTALLATION PLANNING |
| Safety & Compliance |
Application Scenarios |
|
STORED-ENERGY CONTROL
Wait for the drive DC bus to discharge fully and verify zero voltage before handling the board.
|
DRIVE STARTUP SERVICE
Restore controlled precharge behavior when an existing 1336 drive will not complete startup.
|
|
ESD PROTECTION
Use grounded static-control procedures and hold the assembly only by its edges.
|
LEGACY VFD MAINTENANCE
Support PLUS, PLUS II, FORCE, IMPACT and REGEN drive repair programs.
|
|
CONFIGURATION RECORD
Photograph every connector, jumper and mounting point before removing the installed board.
|
PLANT SPARE PLANNING
Maintain a matched precharge assembly for critical legacy motor-control assets.
|
Technical data
|
RATED VOLTAGE
460VAC
|
DRIVE POWER RANGE
60HP to 600HP
|
COMPATIBLE DRIVE LINES
PLUS / PLUS II / FORCE / IMPACT / REGEN
|
|
PRIMARY FUNCTION
DC-bus precharge control
|
OPERATING TEMPERATURE
0°C to 50°C
|
STORAGE TEMPERATURE
-40°C to 85°C
|
| 03 |
BRAND & APPLICATIONS |
PRODUCT REFERENCES |
| Brand characteristics |
Application fields |
|
Drive-system continuity
Allen-Bradley spare boards support controlled maintenance of established 1336 installations.
|
Process machinery
Precharge service for pumps, fans, mixers and material-processing drives.
|
|
Exact execution matching
Catalog suffixes and series letters identify the required hardware revision.
|
Material handling
Maintenance of conveyor and transfer-system variable-frequency drives.
|
|
Serviceable architecture
Connector, jumper and board-level references support disciplined replacement work.
|
Metals and converting
Legacy drive support for coordinated production equipment.
|
|
Industrial lifecycle support
Documented voltage and power ranges help preserve legacy drive assets.
|
Plant modernization
Like-for-like board replacement during phased control upgrades.
|
