PRODUCT DETAILS

ALLEN-BRADLEY · INDUSTRIAL AUTOMATION

1791 BLOCK I/O

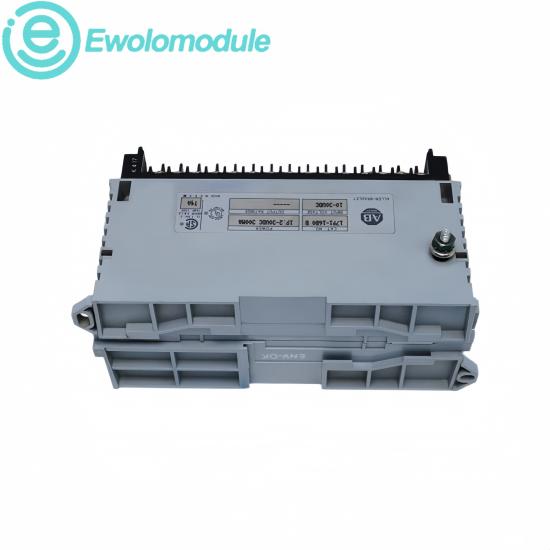

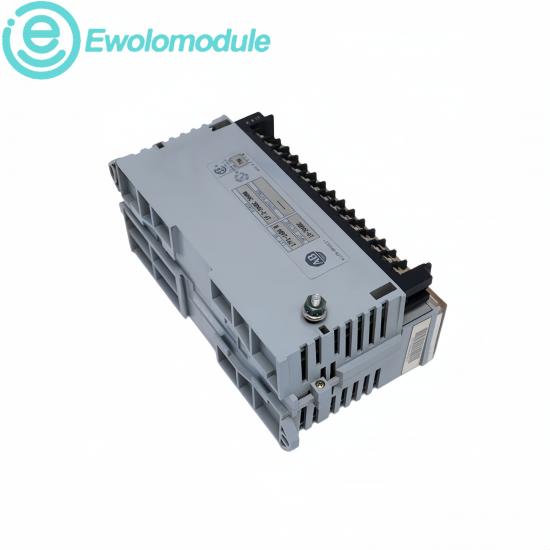

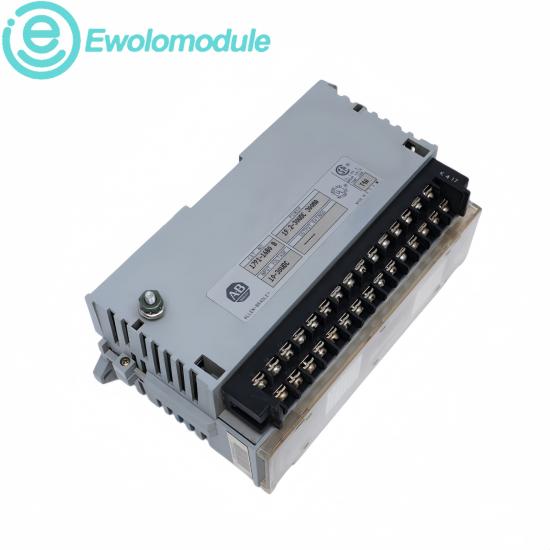

Allen-Bradley 1791-16B0

Block I/O 16-Point DC Input Module

SYSTEM POSITION

Distributed 24VDC Signal Acquisition

Collects sixteen field-device states at a remote machine location and returns them to the controller.

Product snapshot

Self-contained remote input hardware for established Allen-Bradley control installations. Confirm the module series, network addressing, field-supply arrangement and terminal assignments before commissioning.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL

+86 17359287459

sales9@apterpower.com

Explore other Allen-Bradley products →

SAFETY & APPLICATIONS

INSTALLATION PLANNING

Safety & Compliance

Application Scenarios

ELECTRICAL ISOLATION

Maintain the specified separation between field groups, logic and the remote-I/O network.

DISTRIBUTED INPUTS

Collect limit-switch, selector-switch and proximity-sensor states near the machine.

WIRING & GROUNDING

Use conductor category 2 practices, the equipment grounding stud and documented shield routing.

LEGACY MACHINE SERVICE

Restore a compatible PLC-2, PLC-3 or PLC-5 remote-I/O installation.

ENVIRONMENTAL CONTROL

Provide enclosure ventilation and keep the surrounding air within the published operating range.

PANEL MODERNIZATION

Retain existing field wiring while renewing a failed Block I/O input node.

Technical data

INPUT CAPACITY

16 points, 2 groups of 8

ON-STATE RANGE

10VDC to 30VDC

ON-STATE CURRENT

2.5mA to 11mA

INPUT IMPEDANCE

3.4kΩ maximum

SIGNAL DELAY

1ms ON / 5ms OFF

ISOLATION RATING

500VAC

BRAND & APPLICATIONS

PRODUCT REFERENCES

Brand characteristics

Application fields

Distributed architecture

Allen-Bradley Block I/O combines the adapter, power supply and field interface in one assembly.

Packaging machinery

Remote collection of sensor and switch states around production equipment.

Clear diagnostics

Channel, communication and module-status indicators support fast cabinet checks.

Material handling

Distributed discrete monitoring on conveyors and transfer systems.

Industrial continuity

Documented electrical limits help preserve established remote-I/O installations.

Water treatment

Pump-station and utility-panel input acquisition over remote I/O.

Service traceability

Catalog and series identifiers support controlled replacement planning.

Legacy automation

Maintenance of PLC-2, PLC-3 and PLC-5 field networks.
