ALLEN-BRADLEY · 1791 BLOCK I/O

CALL +86 17359287459 EMAIL sales9@apterpower.com

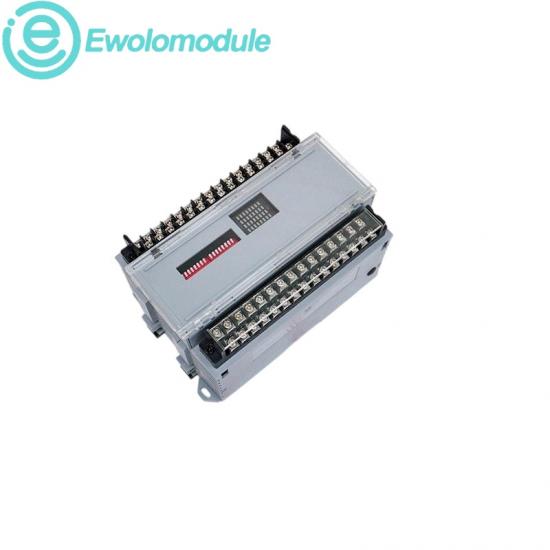

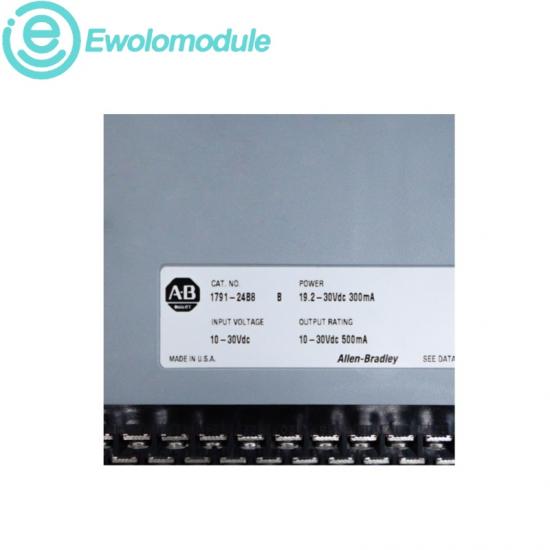

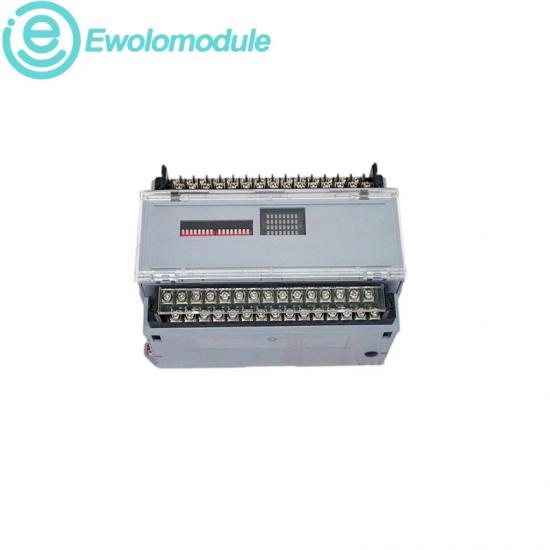

1791-24B8

24-Input 8-Output DC Block I/O Module

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

TECHNICAL PROFILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

The 1791-24B8 combines 24 DC inputs and 8 DC outputs in a compact remote Block I/O assembly. It reduces panel wiring while providing defined input filtering, grouped channels and Universal Remote I/O communication for legacy Allen-Bradley systems.

TECHNICAL SPECIFICATIONS

Manufacturer	Allen-Bradley
Part Number	1791-24B8
Product Family	1791 Block I/O
DC Inputs	24 · three groups of eight
DC Outputs	8 · one group
Input Range	10 to 30 VDC
External Power	19.2 to 30 VDC · 300 mA
Input Delay	1 ms on · 5/18 ms off
Output Delay	0.5 ms on · 1 ms off
Power Dissipation	17.1 W maximum

CERTIFICATIONS & STANDARDS

Built for Allen-Bradley 1791 Universal Remote I/O installations with documented 500 VAC isolation between power, Remote I/O and channel groups. Confirm complete panel certification and environmental ratings for the installed system.

CONFIGURATION & PROGRAMMING

Set the rack address, starting group and transfer configuration in the Remote I/O scanner project. Confirm fast/slow input filter selection, field-power grouping and output load current before commissioning or replacement.

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

Allen-Bradley Block I/O integrates field terminals, Remote I/O communication and discrete channels in compact assemblies with documented addressing and electrical group isolation.

REMOTE I/O

COMPACT

GROUP ISOLATED

APPLICATION FIELDS

Used for distributed machine inputs and outputs on conveyors, packaging equipment, material handling cells, assembly lines and retrofit PLC systems.

MACHINE I/O

CONVEYORS

RETROFIT
