ALLEN-BRADLEY · 1791 BLOCK I/O

CALL +86 17359287459 EMAIL sales9@apterpower.com

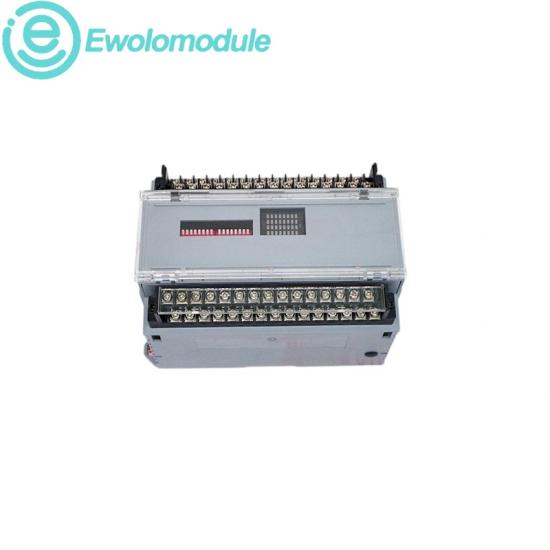

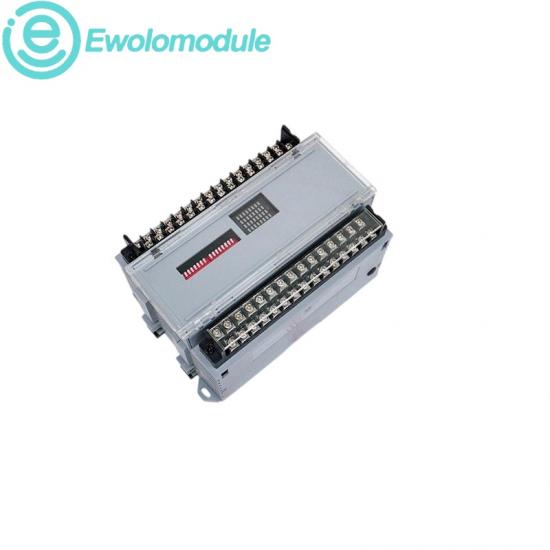

1791-OB32

32-Point DC Output Block I/O Module

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

TECHNICAL PROFILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

The 1791-OB32 provides 32 discrete DC outputs in a self-contained Block I/O module for Universal Remote I/O networks. Integrated field terminals and grouped electronic outputs support compact distributed actuation in legacy control installations.

TECHNICAL SPECIFICATIONS

Manufacturer	Allen-Bradley
Part Number	1791-OB32
Product Family	1791 Block I/O
Output Points	32 DC outputs
Output Range	10 to 30 VDC
External Power	19.2 to 30 VDC · 300 mA
Minimum On-State	1 mA per output
Maximum Voltage Drop	1 V
Output Delay	0.5 ms on · 1 ms off
Power Dissipation	19.2 W maximum

CERTIFICATIONS & STANDARDS

Designed for Allen-Bradley Universal Remote I/O installations and the published 1791 electrical isolation and environmental limits. Final approval depends on enclosure, field power, wiring class and complete machine certification.

CONFIGURATION & PROGRAMMING

Configure the Remote I/O rack address and output image allocation in the scanner project. Verify grouped field-power feeds, load polarity, inrush current and total thermal dissipation before energizing the 32 output points.

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

Allen-Bradley 1791 Block I/O combines network communication, field terminals and dense discrete channels in serviceable modules suited to established PLC architectures.

DENSE OUTPUT

REMOTE I/O

SERVICEABLE

APPLICATION FIELDS

Applied to solenoid valves, contactors, indicator lamps and distributed machine actuators on packaging, conveying, assembly and process-support equipment.

SOLENOIDS

MACHINE CONTROL

DISTRIBUTED I/O
