FLEX I/O-XT

FLEX I/O-XT DIGITAL INPUT

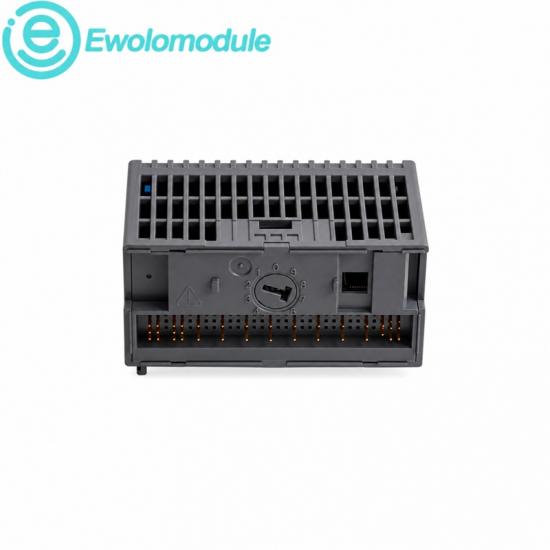

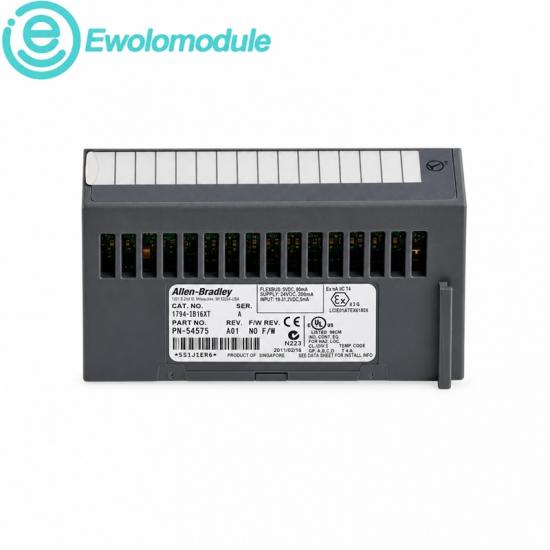

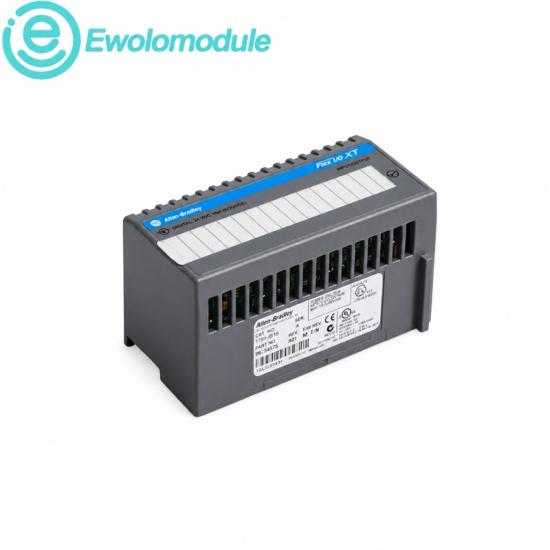

Allen-Bradley 1794-IB16XT
16-Point DC Input

Extended-temperature 24V DC sinking input module for distributed FLEX I/O installations.

SYSTEM ROLE

16-Point DC Input

16-Point DC Input provides the main operating function within the FLEX I/O-XT architecture.

Product snapshot

The 1794-IB16XT provides sixteen sinking DC input points and channel status indication for field devices connected through an appropriate FLEX I/O terminal base.

System fit

Use with a compatible FLEX I/O adapter and terminal base. Confirm keying, field voltage, addressing and environmental rating against the installed node before commissioning.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL

+86 17359287459

sales9@apterpower.com

Explore other Allen-Bradley products →

PERFORMANCE, EFFICIENCY & APPLICATIONS

TECHNICAL OVERVIEW

OPERATING PROFILE

16-Point DC Input for FLEX I/O-XT

Technical data below is separated from the product overview and excludes shipping weight and package dimensions.

Performance & Efficiency

Sixteen input channels concentrate field status in a compact distributed-I/O position. Adjustable input filtering helps stabilize noisy signals, while the XT temperature rating supports operation in wider ambient conditions than standard FLEX I/O modules.

Application Scenarios

Suitable for machine skids, material handling, remote panels and process equipment where 24V DC sensors, switches and contacts must be collected near the field and returned over the FLEX I/O network.

Technical data

Module type

16-point sinking DC input

Platform

FLEX I/O-XT

Input voltage

10–31.2V DC

Input current

4mA nominal

FLEXBUS load

5V DC at 30mA

External supply

10–31.2V DC at 50mA

Operating temperature

-20 to +70°C

Status indication

One indicator per channel

Verify the complete order identity, hardware revision, electrical interface and installed-system configuration before commissioning.

BRAND CHARACTERISTICS & APPLICATION FIELDS

INDUSTRIAL AUTOMATION

Brand characteristics

Application fields

Allen-Bradley products emphasize documented system compatibility, service continuity and stable industrial operation. Exact model and revision matching helps preserve the installed architecture.

The 1794-IB16XT supports Suitable for machine skids, material handling, remote panels and process equipment where 24V DC sensors, switches and contacts must be collected near the field and returned over the FLEX I/O network.

Distributed architecture

Modular FLEX I/O places field inputs close to equipment.

Manufacturing

Sensor and limit-switch collection on automated machines.

Extended temperature

XT construction supports demanding panel environments.

Material handling

Conveyor, sorter and packaging-line input monitoring.

Channel visibility

Individual status indicators simplify field checks.

Process systems

Remote 24V DC contact and instrument-status acquisition.
