Product Overview

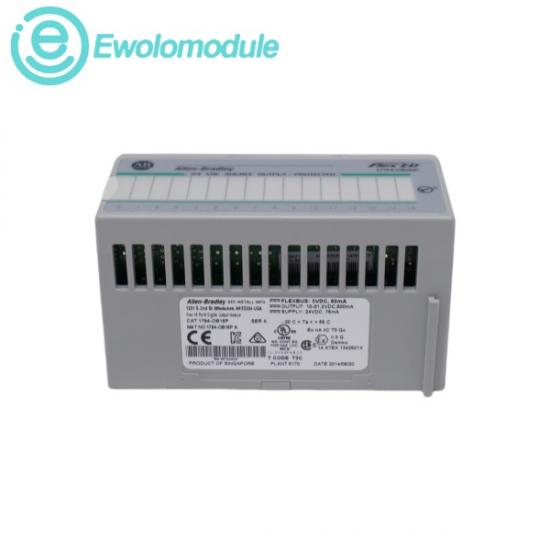

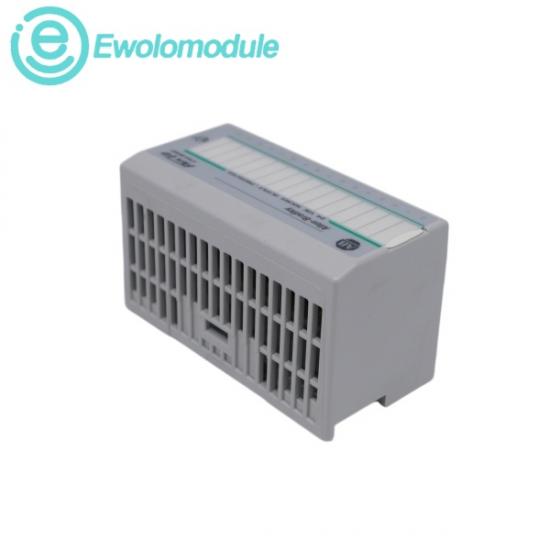

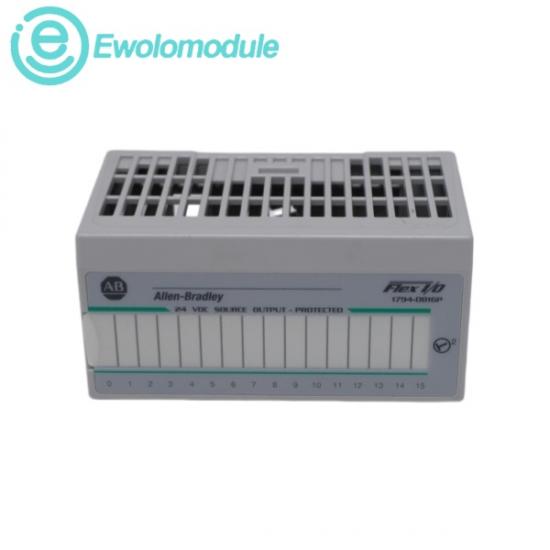

The Allen-Bradley 1794-OB16P is a 16-channel digital DC output module for the FLEX I/O system. It provides 24V DC sourcing (current-sourcing) outputs, with each channel electronically protected against short circuits and overloads. The module features 16 yellow status LEDs for individual channel indication and is powered via the Flexbus backplane. The module supports Removal and Insertion Under Power (RIUP), allowing maintenance personnel to replace modules and adjust cable connections while the wider system remains fully operational.

(1) Nominal On-State Voltage: 24V DC

(2) Digital Output Voltage Range: 10 to 31.2 V DC

(3) Output Current Rating (Module Max): 8.0 A total continuous current per module

(4) Continuous Current per Output (Max): 500 mA (0.5 A) maximum per channel

(5) Maximum On-State Voltage Drop: 0.5 V DC

(6) Maximum Off-State Leakage Current: 0.5 mA

(7) Operating Temperature Range: 0 °C to 55 °C (32 °F to 131 °F)

(8) Storage Temperature Range: -40 °C to 85 °C (-40 °F to 185 °F)

(9) Relative Humidity: 5% to 95% non-condensing

Industrial Applications

(1) Solenoid Valve Actuation: Driving 24V DC pneumatic and hydraulic directional control valves in assembly lines.

(2) Indicator Light Powering: Controlling industrial stack lights, alarm buzzers, and control panel status lamps.

(3) Relay and Contactor Interfacing: Energizing the coils of interposing power relays and heavy-duty motor contactor units.

(4) Distributed Field Station Control: Providing reliable local output execution in space-constrained terminal enclosures across distant conveyor networks.

Application Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
