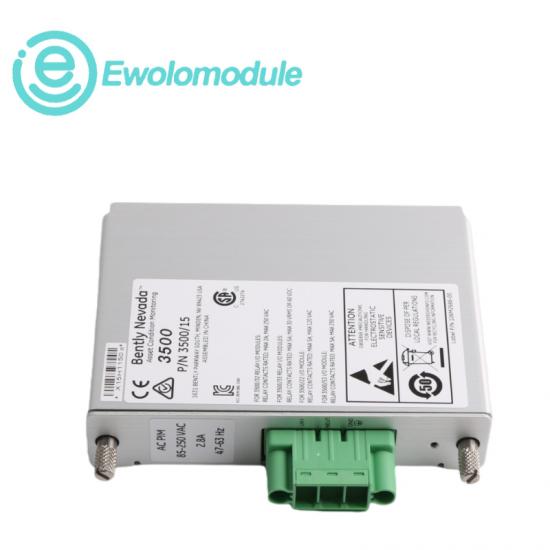

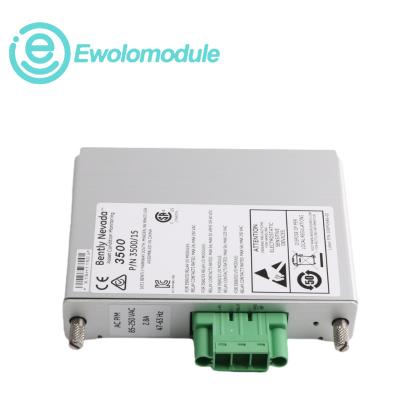

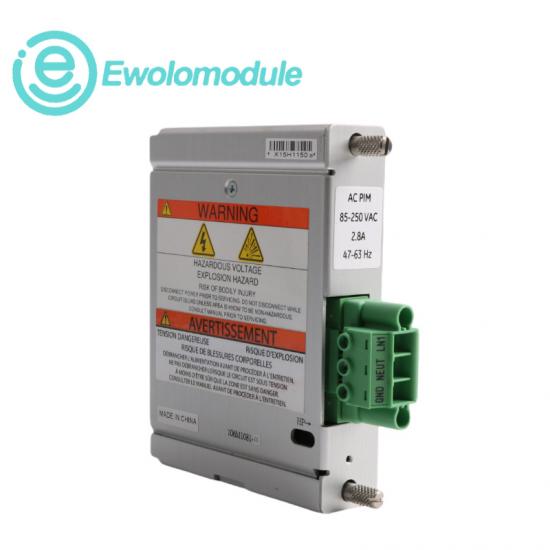

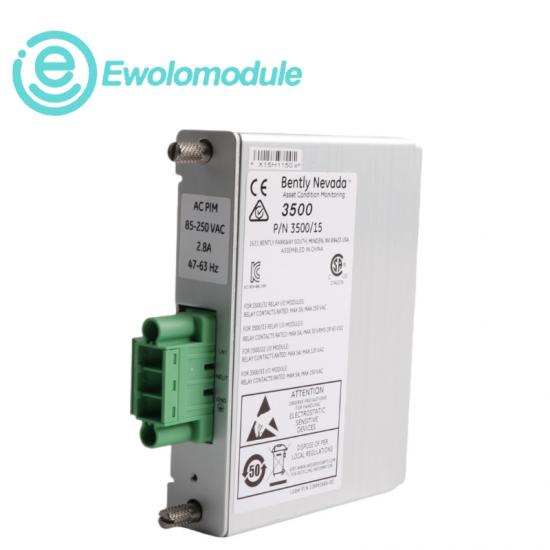

106M1081-01 // Universal AC Power Input Module

Technical Specifications

Input voltage range: 85–264 VAC (nominal voltage)

Input current: 2.8 A maximum

Frequency range: 47–63 Hz

Power output: Provides power to the entire rack, supports full rack powering

Mounting method: Half-height module, installed in the designated slot on the left side of the rack

Compatibility: For use only with the universal AC power supply module (106M1079-01); not compatible with traditional high/low voltage AC power modules

Dimensions and weight: 2.5 x 12 x 12 cm, 0.32 kg

Certifications: Compliant with CSA/NRTL/C (Class 1, Division 2) and ATEX/IECEx/CSA (Class 1, Zone 2)

Bently Nevada 3500/15 Series

The Bently Nevada 3500/15 Series is a power module designed by GE (now Baker Hughes) for its 3500 Series Machinery Protection System, specifically for monitoring and protecting the health of industrial equipment. This series includes a variety of power modules supporting both AC and DC input, ensuring stable system operation in a variety of power supply environments.

Functions and Applications

Power Module Types:

1. Universal AC Power Supply (Universal AC): Supports 85–264 VAC input, suitable for most industrial power supply environments.
2. High Voltage DC Power Supply (High Voltage DC): Supports 88–140 VDC input, suitable for high-voltage DC power systems.
3. Low Voltage DC Power Supply (Low Voltage DC): Supports 20–30 VDC input, suitable for low-voltage DC power systems.

Redundant Configuration: The rack can be installed with one or two power modules, supporting redundancy to ensure system operation even if one power module fails.

Modular Design: The power module is a low-profile design and installs in a designated slot on the left side of the rack for easy installation and maintenance.

Compatibility: Universal AC power modules are not compatible with traditional high-voltage AC and low-voltage AC power modules; high-voltage and low-voltage DC power modules are not compatible with traditional high-voltage and low-voltage DC power modules.
