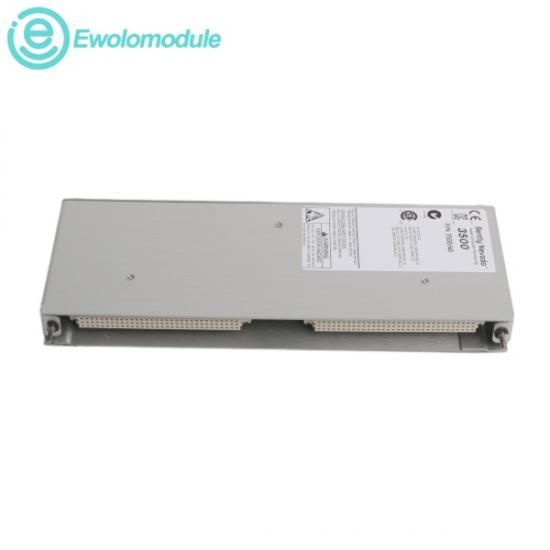

The Bently Nevada 126615-01 is a full-height Proximitor I/O module. It serves as a 4-channel interface that connects directly to Bently Nevada proximity transducers (eddy current probes). It conditions the raw eddy current signals from these sensors into precise measurements of vibration and position. This module is typically installed in a rear slot of a 3500 rack and works in conjunction with a monitor module like the 3500/40M.

² Input Channels: Supports up to 4 independent proximity transducer channels per I/O assembly.

² Transducer Supply Voltage: Supplies a regulated -24 VDC excitation voltage loop to power external Proximitor sensors.

² Signal Frequency Response: Handles dynamic process input signals ranging from 0 Hz (DC) to 10 kHz.

² Electrical Safety Isolation: Employs continuous galvanic isolation rated up to 500 Vrms to block cross-channel noise and ground loops.

² Operating Temperature Range: Hardened for demanding plant enclosures, running reliably from -30°C to +65°C (-22°F to 149°F).

² Relative Humidity Window: Supports standard asset environment climates from 5% to 95%, non-condensing.

External Cabinet Signal Consolidation:

Turbo-Machinery Displacement Tracking:

Harsh Industrial Noise Isolation:

Deployed to route raw proximity sensor cables to an external terminal base, reducing dense wiring clutter inside the rear of the main monitor rack.

Feeds high-precision analog telemetry for tracking radial shaft vibration, absolute axial thrust positioning, and rotor eccentricity.

Acts as a localized electrical shielding barrier to safeguard central rack processors from high-voltage spikes and field-induced electromagnetic interference.
