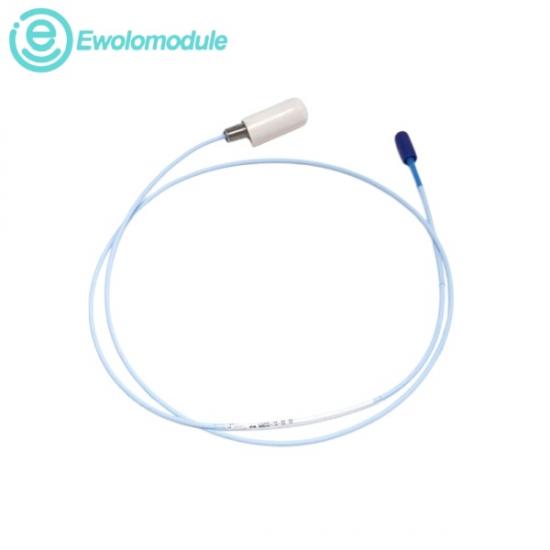

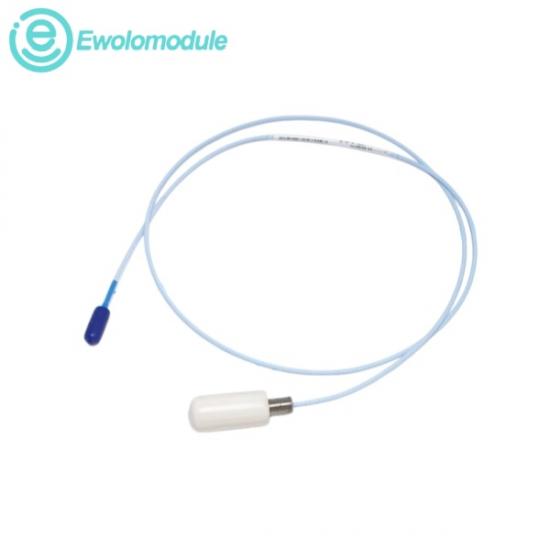

PRODUCT DESCRIPTIONThe Bently Nevada 146054-36-05-01-05 is a 3/8-24 UNF ceramic-capped proximity probe designed for non-contact shaft vibration and position measurement in chemically aggressive or high-pressure machinery environments. Its alumina ceramic tip, AISI 304 stainless-steel case, 3.6 in (91.4 mm) case length, 0.5 m (1.6 ft) total length, and 01 = clickloc connector with protector support compatible 3300 Proximitor Sensor installations. The 146054-36-05-01-05 provides a 1.52 mm linear range, 34 bar pressure rating, and operation from −51 °C to +177 °C.
Verified Technical Data
| Case-length option |
36 = 3.6 in (91.4 mm) |
Scale factor |
7.87 V/mm (200 mV/mil) |
| Total-length option |
05 = 0.5 m (1.6 ft) |
Pressure rating |
34 bar (500 psi) |
| Probe thread |
3/8-24 UNF |
Operating temperature |
−51 to +177 °C |
| Linear range |
1.52 mm (60 mils) |
Cable impedance |
75 Ω |
| Recommended gap |
1.0 mm (40 mils) |
Minimum cable bend radius |
25.4 mm (1.0 in) |
Applied Industry Register
- Power generation:Monitor turbine and generator shaft vibration and axial position.
- Oil and gas:Measure compressor and pump shaft displacement in demanding process areas.
- Petrochemical processing:Monitor rotating shafts where chemical-resistant ceramic probe tips are required.
- Industrial manufacturing:Measure motor, fan, and machine-spindle vibration without shaft contact.
- Maintenance and MRO:Replace the exact installed probe and verify the operating gap during commissioning.
