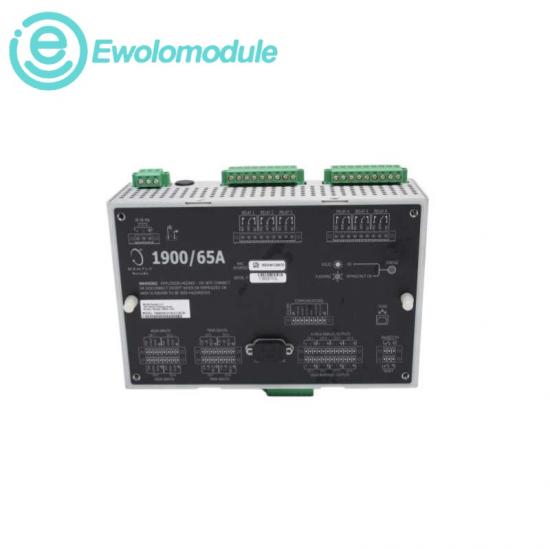

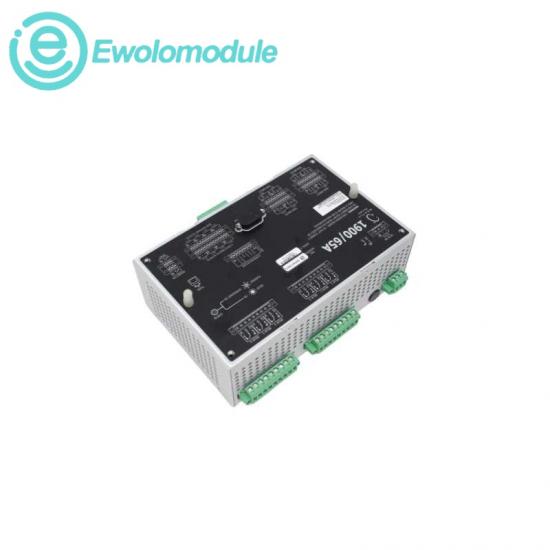

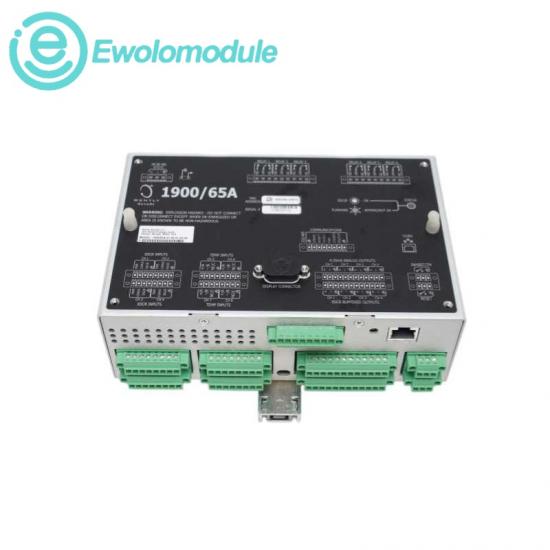

1900/65A General Purpose Equipment Monitor with Attached Display and Weatherproof Housing
The code 03 mounting option provides the official NEMA 4X/IP66 housing with a viewing window for exposed installations.
Operators can review channel values and status locally and perform supported minor configuration changes.
Six configurable relays and four recorder outputs support local machinery protection without a communications gateway.
1900/65A-01-01-03-00-00 decodes as 01 = 110–220 Vac external supply; 01 = attached display without cable; 03 = fiberglass NEMA 4X/IP66 weatherproof housing with window; 00 = no agency approval; 00 = no communications.
| Complete model | 1900/65A-01-01-03-00-00 |
| Power option | 01 — 110 to 220 Vac, 50/60 Hz external supply |
| Display option | 01 — Attached display, no cable |
| Mounting option | 03 — Fiberglass NEMA 4X/IP66 weatherproof housing with window |
| Approval option | 00 — None |
| Communications option | 00 — None |
| Housing dimensions | 30.02 × 24.94 × 20.98 cm |
| Monitor plus attached display weight | 1.17 kg; housing weight not stated |
| Manufacturer | Bently Nevada |
| Product family | 1900/65A General Purpose Equipment Monitor |
| Monitor input voltage | 18 to 36 Vdc |
| Typical operating current | 0.35 A |
| Maximum operating current | 1.0 A |
| Typical operating power | 8.5 W |
| Maximum operating power | 14 W |
| Transducer inputs | 4 |
| Temperature inputs | 4 |
| Relay outputs | 6 |
| Recorder outputs | 4 × 4–20 mA |
| Buffered output | Dedicated front output |
| Supported temperature sensors | Type E, J, K and T thermocouples; 2- or 3-wire RTDs |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +90°C |
| Relative humidity | 95% non-condensing maximum |
