PRODUCT PROFILE
LOW-FREQUENCY VIBRATION
BENTLY NEVADA
190501-09-00-04

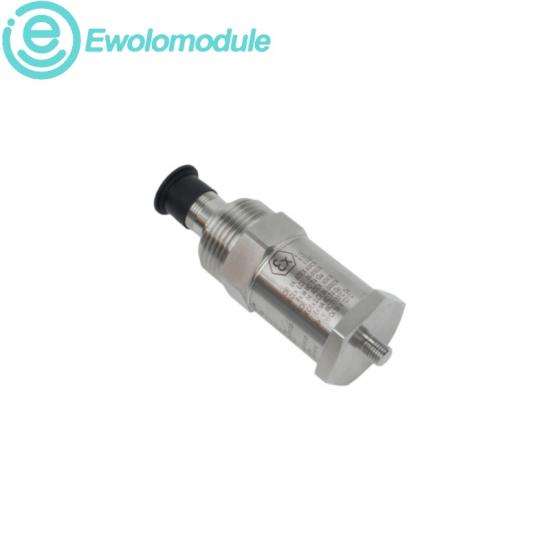

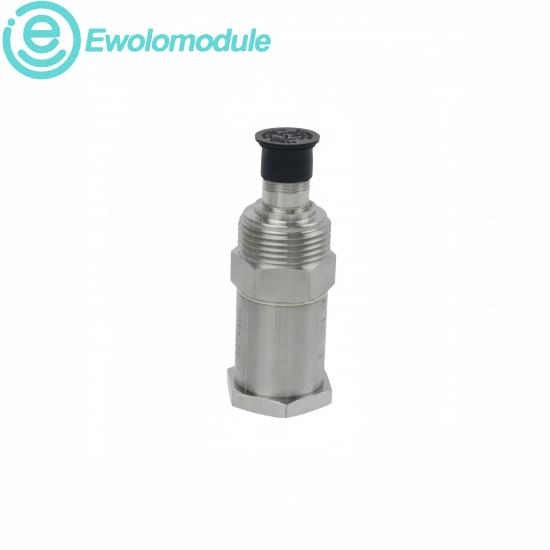

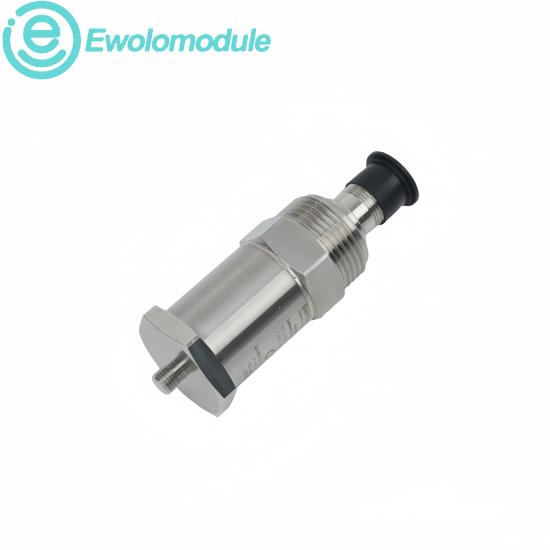

Velomitor CT Velocity Transducer
PRODUCT OVERVIEW
Low-frequency casing-vibration monitoring for cooling-system fan assemblies
The compact transducer combines vibration sensing and signal conditioning for compatible machinery-monitoring systems.
Explore other Bently Nevada products →
02
CONFIGURATION & APPLICATIONS
TECHNICAL PLANNING
Configuration & Programming
The 190501-09-00-04 contains no user-loadable firmware. Configure the receiving monitor channel for a Velomitor CT velocity input and apply the documented sensitivity of 3.94mV/mm/s (100mV/in/s).
Confirm engineering units, alarm setpoints, filtering and hazardous-area barriers against the installed system documentation. Record the existing channel setup before replacement and validate the signal after commissioning.
Application Scenarios
Typical installations include cooling-tower and air-cooled heat-exchanger fan casings, particularly slow-speed assemblies operating at 90 rpm or above.
The sensor can support casing-vibration monitoring around fan motors, gear reducers and bearing housings where low-frequency velocity response and a rugged field connection are required.
Technical data
| Sensitivity |
3.94mV/mm/s ±5% |
Frequency response |
3 to 900Hz ±1dB |
| Extended response |
1.5Hz to 1kHz ±3dB |
Amplitude linearity |
±2% to 63.5mm/s pk |
| Output impedance |
<400Ω typical |
Connection |
MIL-C-5015 interface |
| Mounting option |
3/8-24 to 1/4-in NPT plate stud |
Operating range |
-40 to +85°C |
Values are compiled from the 190501 Velomitor CT technical documentation. Verify the full order code and installed monitoring channel before commissioning.
03
BRAND & APPLICATIONS
SYSTEM CONTEXT
| Brand characteristics |
Application fields |
| Monitoring heritage |
Bently Nevada platforms are widely used for continuous machinery-condition monitoring. |
Cooling towers |
Low-frequency casing vibration on fan, motor and gearbox assemblies. |
| Integrated sensing |
The Velomitor CT combines acceleration sensing and velocity signal conditioning in one housing. |
Air-cooled exchangers |
Fan-train monitoring where slower running speeds require extended low-frequency response. |
| Field durability |
Stainless-steel construction and a sealed connector support demanding industrial locations. |
Power generation |
Auxiliary cooling assets and balance-of-plant rotating equipment. |
| System continuity |
Documented sensitivity and order options support controlled like-for-like maintenance. |
Process industries |
Fan and bearing-housing vibration observation in oil, gas and chemical facilities. |
