❏ Basic imfomation

❏ 31000-28-05-00-037-03-02

31000 - AA-BB-CC-DDD-EE-FF

✤ 3300 XL 8 mm probe, multiple approvals

✤ 0.5 m (20 in)

✤ Minimum length 1.5 in (38 mm)

✤ 3.7 in (94 mm) = 037

✤ Two plugs, one 3/4-14 NPT fitting.

    One 3/4-14 to 1/2-14 NPT SST reducer.

    One cable seal grip with grommets for the following cable sizes:

• 1/8 to 3/16 inches

• 1/4 to 5/16 inches

• 5/16 to 3/8 inches

✤ 3/4-14 NPT (Required if ordering Standoff Adapter Option).

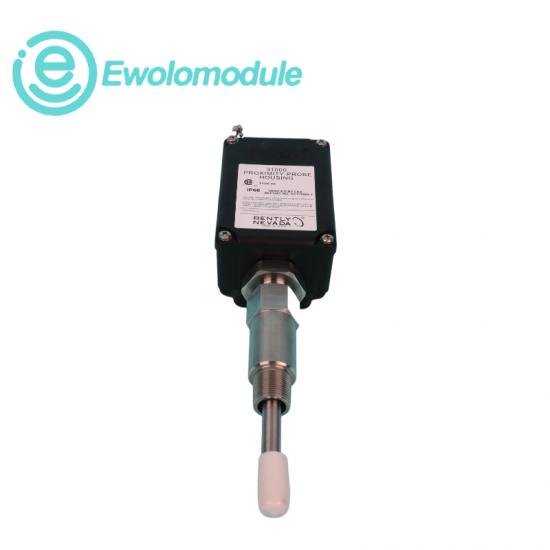

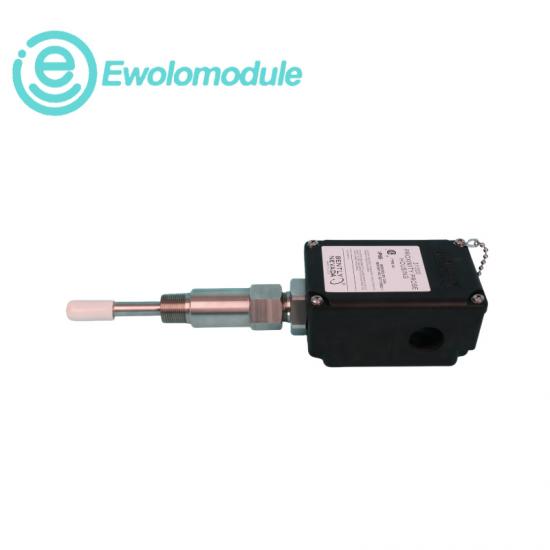

❏ 31000 and 32000 Proximity Probe Housing Assemblies

The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements.

Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine. The 31000/32000 Proximity Probe Housing Assembly is made of polyphenylene sulfide (PPS), an advanced, highstrength, thermoplastic with excellent corrosion resistance. Other elements of the housing assembly are made of corrosion-resistant stainless steel. The housing can be ordered with installed 3300 XL Proximity Probes and a variety of conduit fittings.

The 31000/32000 Proximity Probe Housing Assembly is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings.

When installed in conjunction with an approved transducer system and appropriate I.S. barriers, the 31000/32000 Proximity Probe Housing Assembly can be used in intrinsically safe hazardous area applications.
