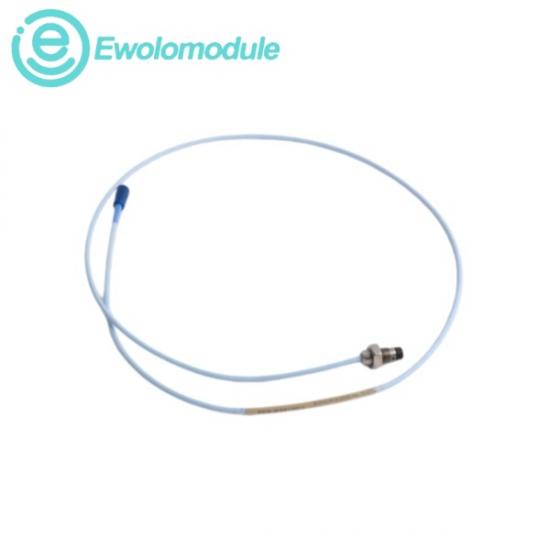

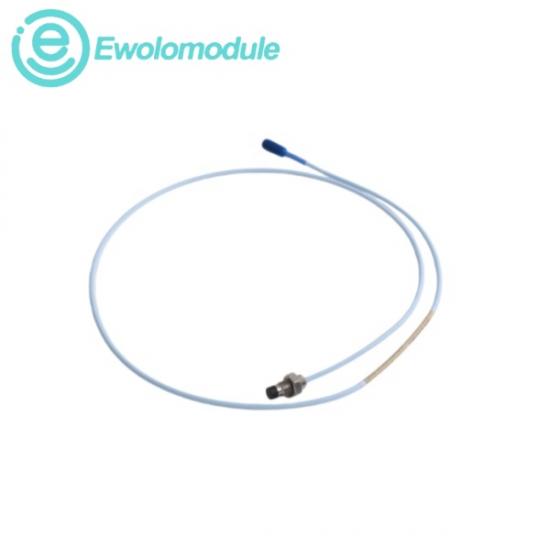

3300 XL 8 mm Proximity Transducer System: 3300 XL 8 mm Proximity Probe
330101-00-16-05-02-05
3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
Unthreaded Length：0.0 in
Overall Case Length：1.6 in
Total Length：0.5 meter (1.6 feet)
Connector and Cable-Type：Miniature coaxial ClickLoc connector, standard cable
Agency Approval：CSA, ATEX, IECEx  Approvals

Description

8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip.
This results in a more rugged probe. The larger diameter of the probe body also provides a stronger, more robust case.
We recommend that you use 8 mm probes when possible to provide optimal robustness against physical abuse.

3300 XL 8 mm Proximity Probes, Standard Mount Specifications

1. Probe tip, 8.0 mm (0.31 in) diameter

2. 9/16 in for 3/8-24 threads, M17 for M10 threads (see Note 2)

3. Case thread

4. 5/16 in wrench flats for 3/8-24 threads; 8mm wrench flats for M10 threads.

5. 75 Ω cable, 3.68 mm (0.145 in) maximum outside diameter, 3.94 mm (0.155 in) maximum outside diameter for FluidLoc cable,

7.67 mm (0.302 in) outside diameter of armor, 9.5 mm (0.38 in) maximum diameter of armor ferrule.

6. Miniature male coaxial connector, 7.24 mm (0.285 in) maximum outside diameter “D”

7. Unthreaded length “A”

8. Case length “B”

9. 6.0 mm (0.235 in) maximum

10. Total length “C”, +30%, -0%3
