PRODUCT TECHNICAL CARD

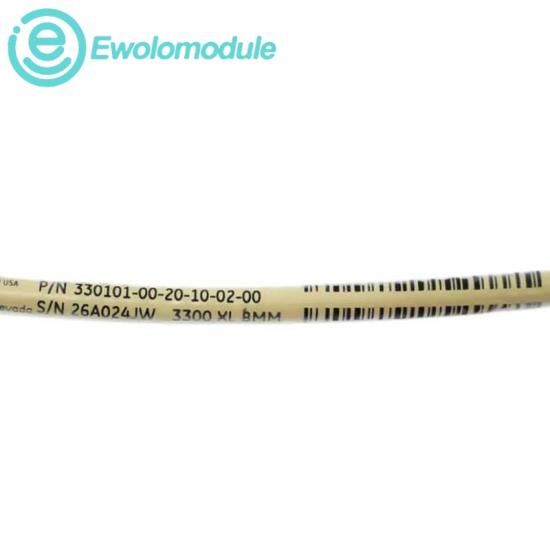

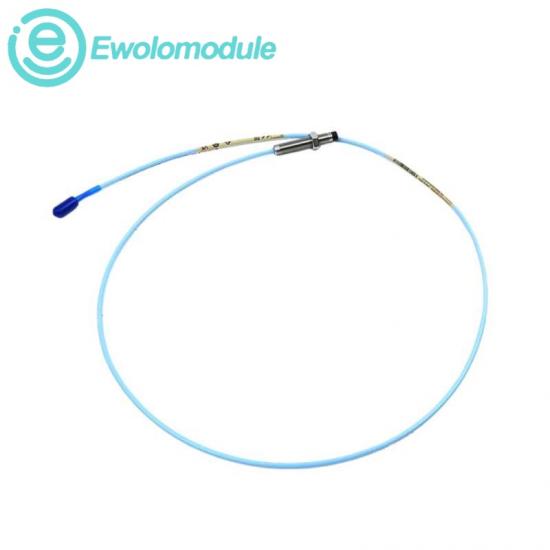

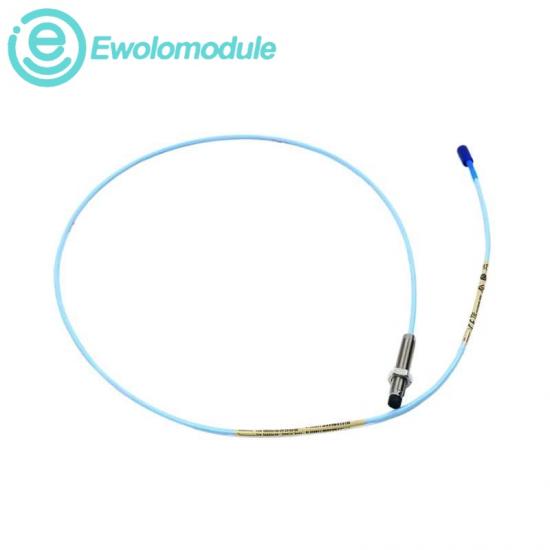

Bently Nevada 330101-00-20-10-02-00 3300 XL 8 mm Proximity Probe

MODEL · 330101-00-20-10-02-00

TECHNICAL SUMMARY

The Bently Nevada 330101-00-20-10-02-00 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, standard cable and a total probe length of 1.0 meter.

SYSTEM

3300 XL 8 mm

THREAD

3/8-24 UNF

CABLE

Standard ClickLoc

CONDITION

New Original

Engineering Data Ledger

OFFICIAL DATA ONLY

IDENTIFICATION

330101-00-20-10-02-00

3300 XL 8 mm
Proximity Probe
Standard Mount

01	Manufacturer	Bently Nevada
02	Product series	3300 XL 8 mm Proximity Transducer System
03	Probe family	330101, without armor
04	Thread	3/8-24 UNF
05	Unthreaded length	0.0 in
06	Overall case length	2.0 in
07	Total probe length	1.0 m
08	Connector and cable	02 — ClickLoc connector, standard cable
09	Agency approval	00 — Not required
10	Probe tip diameter	8.0 mm
11	Standard temperature range	-52 to +177 °C
12	Official typical probe weight	323 g/m; calculated 0.323 kg

OPERATING APPLICATIONS

A	Radial vibrationNon-contact shaft vibration measurement with a compatible 3300 XL system.
B	Axial positionContinuous shaft-position measurement in rotating machinery applications.
C	Machine protectionProbe input for compatible monitoring and protection channels.
D	Lifecycle replacementExact part-number maintenance for installed 3300 XL systems.

BENTLY NEVADA EQUIPMENT DIRECTORY

20 More Models for Targeted Maintenance

01	330730-040-03-05	11	330702-00-10-10-01-00
02	330103-00-11-50-02-05	12	330901-00-12-10-02-05
03	330930-040-05-05	13	102044-00-28-10-02
04	330104-00-07-50-02-00	14	330104-00-13-15-01-00
05	330101-23-34-10-02-05	15	330102-05-30-50-02-05
06	330130-085-02-00	16	330901-00-09-10-02-05
07	330101-00-12-15-02-00	17	102045-040-01
08	330901-00-08-10-02-05	18	330901-00-15-70-02-05
09	102044-00-18-10-02	19	21000-00-00-00-00-02
10	330104-03-12-10-02-00	20	330901-00-08-10-02-00

BUYER DECISION GUIDE · FAQ SET 02

330101-00-20-10-02-00 Buyer FAQ

Questions selected for this exact probe configuration.

Q01

When is the 1.0 m lead preferable to the 0.5 m option?

Choose CC 10 only after measuring the actual route from the probe to its mating connection, including enclosure entry and a practical service allowance.

Q02

Does BB 20 mean a 20 mm body?

No. In this ordering code, BB 20 identifies a 2.0 in case. Treat it separately from the CC 10 code that identifies the 1.0 m total probe length.

Q03

How do I keep a 1.0 m probe from creating a system-length mismatch?

Verify the companion extension cable and Proximitor sensor before purchase. The probe, extension cable and sensor must be considered as one configured 3300 XL chain.

Q04

What routing detail is often missed for this one-meter version?

Measure the real path around guards, junction points and cabinet entries. Straight-line distance can understate the lead required at the machine.

Q05

Is -00 suitable when the plant has hazardous-area paperwork?

EE 00 means no agency approval is required. The plant or project engineer should confirm whether an approved EE 05 configuration is mandatory.

Q06

Which part-number fields belong on the purchase order?

Use the complete 330101-00-20-10-02-00 string. Omitting BB, CC, DD or EE can leave case length, lead length, connector or approval status undefined.

Q07

What is a useful incoming check beyond the model label?

Confirm the 2.0 in case selection, 1.0 m lead, ClickLoc connector condition and packaging integrity before the probe is released to maintenance.
