Product details
Measuring range: ±8 mm (±0.315 in)
Measuring principle: Eddy current displacement sensing
Mounting thread size: 3/8-24 UNF (Imperial)
Housing length: 2.8 in (approximately 71.1 mm)
Total length: 1.0 m (approximately 3.3 ft)
Connector type: Micro coaxial ClickLoc™ connector, standard cable
Cable type: Standard cable
Operating temperature range: -40°C to +120°C (-40°F to +248°F)
Storage temperature range: -40°C to +120°C (-40°F to +248°F)

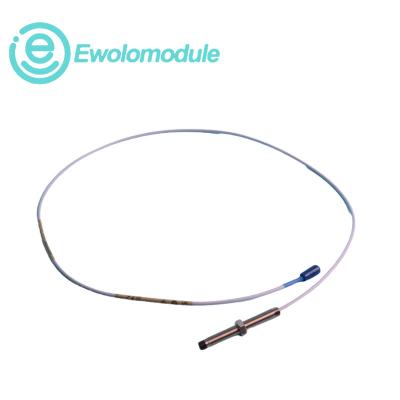

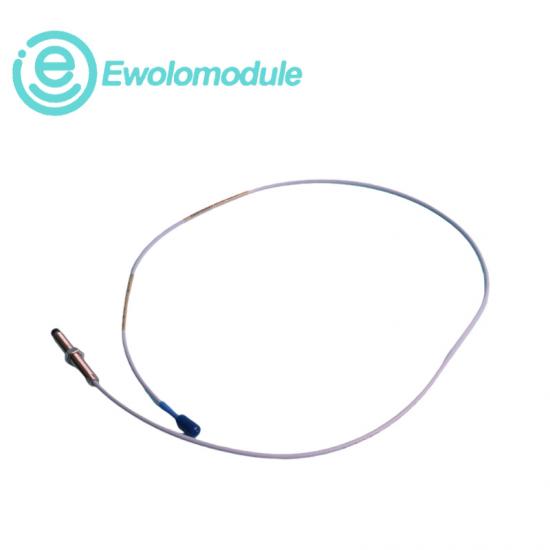

3300 XL 8mm Proximity Transducer System
Bently Nevada's 3300 XL 8mm Proximity Transducer System is a high-performance eddy current displacement sensor system designed for vibration and displacement monitoring in industrial machinery, particularly for fluid film bearings.
| Key Features |
| High-Precision Measurement: Provides precise vibration and displacement data and supports multiple measurement modes. |
| Modular Design: Interchangeable components simplify system configuration and maintenance. |
| High-Temperature Capability: Operates stably in ambient temperatures from -40°C to +120°C, adapting to a variety of industrial environments. |
| Electromagnetic Interference Immunity: Enhanced RFI/EMI immunity ensures compatibility in complex industrial environments. |
| Standard Compliance: Complies with the American Petroleum Institute (API) 670 (4th Edition), ensuring the system's mechanical configuration, linear range, accuracy, and temperature stability. |
3300 XL Series Overview
The 3300 XL Series features a modular design with interchangeable probes, extension cables, and proximitors, simplifying installation and maintenance. The system output voltage is proportional to the distance between the probe and the conductive surface, enabling simultaneous measurement of static position and dynamic vibration. This series complies with API 670 and is suitable for vibration and position measurement on fluid film bearing machines, as well as keyphasor reference and speed measurement.
| Main models and applications | ||
| Model | Linear range | Application Areas |
| 3300 XL 5mm | ±0.127 mm (±5 mil) | Monitoring of small rotating components in tight spaces, such as electric motors and small compressors. |
| 3300 XL 8mm | ±0.203 mm (±8 mil) | Vibration and displacement monitoring of medium-sized equipment such as centrifugal pumps and main engine generators. |
| 3300 XL 11mm | ±0.254 mm (±10 mil) | Axial displacement and differential expansion monitoring of large equipment such as steam turbines and reciprocating compressors. |
Current stock models
| 4PP065.1043-K01 | 5PP5:494479.000-00 | 6AV3617/5BB00-0AB0 | 6ES7633-1DF02-0AE3 | PCD7.D457ET7F |
| 4PP352.0571-35 | 5PP5:452174.000-00 | 6AV3688-4EY06-0AA0 | 6ES7634-2BF02-0AE3 | PCD7.D410VTCF |
| 4PP251.1043-75 | 5PP5:496723.000-00 | 6AV3688-4CX07-0AA0 | 6ES7630-0DA00-0AB0 | 6FC5203-0AF00-0AA1 |
| 4PPC70.0702-20B | 5PP320.1043-39 | 6ES7630-0DA00-0AB0 | 6ES7621-1AD02-0AE3 | 6FC5203-0AF52-0AA0 |
| 4PP045.0571-L42 | 5PP320.0653-K01 | 6ES7634-1DF02-0AE3 | 6BK1200-0AA20-0AA0 | 6FC5203-0AB10-0AA1 |
