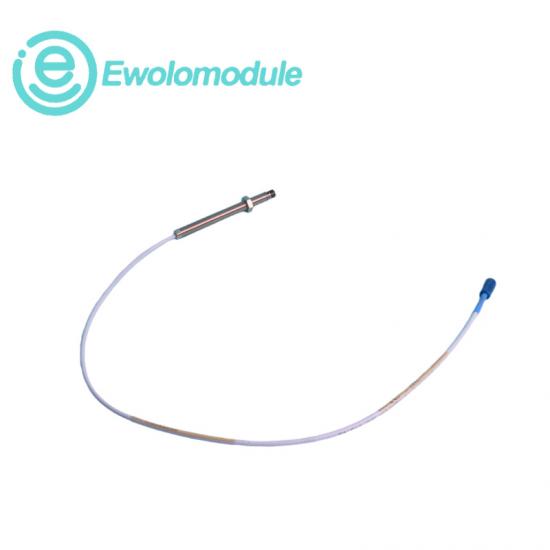

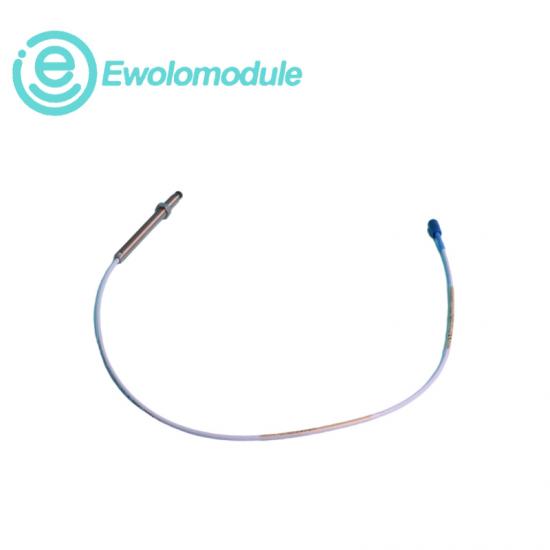

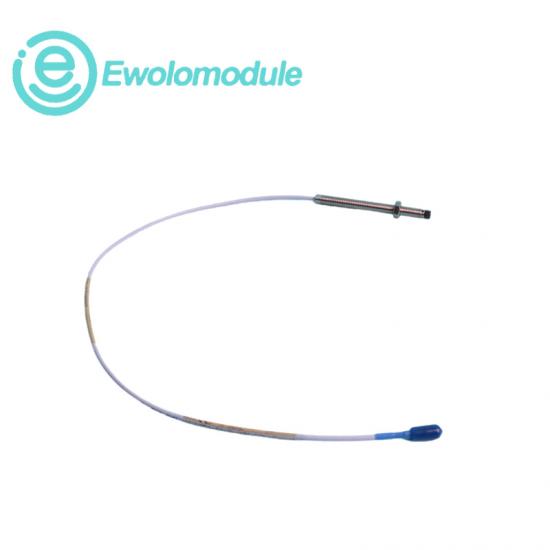

Model 330101-00-40-05-01-00 belongs to the 3300XL 8mm probe series, using 3/8-24UNF threads (i.e., standard imperial threads) and is unarmored.

"-40" indicates a housing length ≈ 40mm (or approximately 4.0in).

"-05" indicates a total length option of 0.5m (approximately 1.6ft) or one of the specific length codes (refer to the ordering list for details).

"-01" indicates the connector/cable type: typically a Miniature coaxial ClickLoc™ connector + standard cable.

"-00" indicates no additional certification or a standard certified version.

This model is suitable for shaft vibration/displacement monitoring and can be used in the probe portion of the 3300XL system, forming a complete system with extension cables and the Proximitor® preamplifier module.

3300 XL 8mm Proximity Transducer System

Bently Nevada's 3300 XL 8mm Proximity Transducer System is a high-performance eddy current displacement sensor system designed for vibration and displacement monitoring in industrial machinery, particularly for fluid film bearings.

3300 XL Series Overview

The 3300 XL Series features a modular design with interchangeable probes, extension cables, and proximitors, simplifying installation and maintenance. The system output voltage is proportional to the distance between the probe and the conductive surface, enabling simultaneous measurement of static position and dynamic vibration. This series complies with API 670 and is suitable for vibration and position measurement on fluid film bearing machines, as well as keyphasor reference and speed measurement.
