PROBE FILE

PRODUCT TECHNICAL CARD

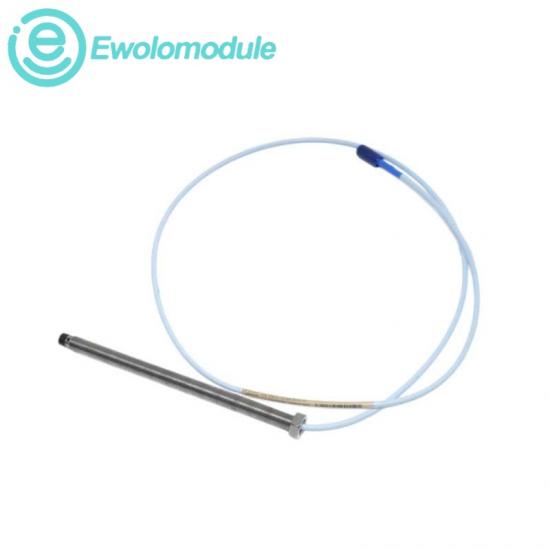

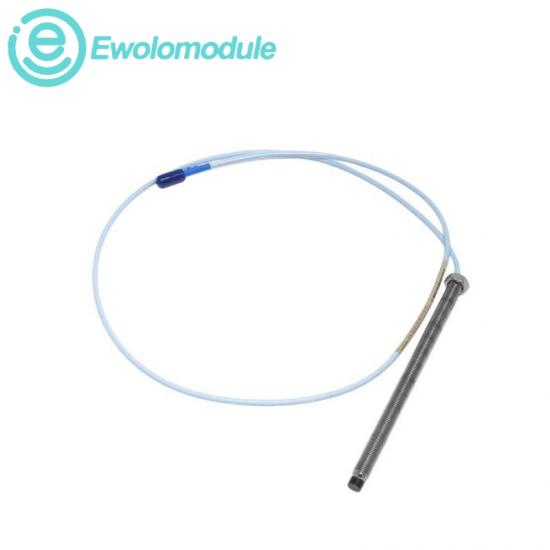

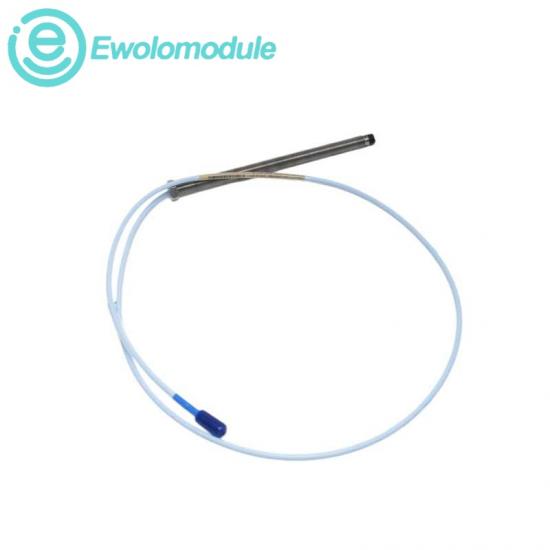

Bently Nevada 330101-00-60-10-02-00 3300 XL 8 mm Proximity Probe

MODEL · 330101-00-60-10-02-00

TECHNICAL SUMMARY

The Bently Nevada 330101-00-60-10-02-00 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, standard cable and a total probe length of 1.0 meter.

SYSTEM

3300 XL 8 mm

THREAD

3/8-24 UNF

CABLE

Standard ClickLoc

CONDITION

New Original

Engineering Data Ledger

OFFICIAL DATA ONLY

IDENTIFICATION

330101-00-60-10-02-00

3300 XL 8 mm
Proximity Probe
Standard Mount

01	Manufacturer	Bently Nevada
02	Product series	3300 XL 8 mm Proximity Transducer System
03	Probe family	330101, without armor
04	Thread	3/8-24 UNF
05	Unthreaded length	0.0 in
06	Overall case length	6.0 in
07	Total probe length	1.0 m
08	Connector and cable	02 — ClickLoc connector, standard cable
09	Agency approval	00 — Not required
10	Probe tip diameter	8.0 mm
11	Standard temperature range	-52 to +177 °C
12	Official typical probe weight	323 g/m; calculated 0.323 kg

OPERATING APPLICATIONS

A	Radial vibrationNon-contact shaft vibration measurement with a compatible 3300 XL system.
B	Axial positionContinuous shaft-position measurement in rotating machinery applications.
C	Machine protectionProbe input for compatible monitoring and protection channels.
D	Lifecycle replacementExact part-number maintenance for installed 3300 XL systems.

BENTLY NEVADA EQUIPMENT DIRECTORY

20 More Models for Targeted Maintenance

01	330730-040-03-05	11	330702-00-10-10-01-00
02	330103-00-11-50-02-05	12	330901-00-12-10-02-05
03	330930-040-05-05	13	102044-00-28-10-02
04	330104-00-07-50-02-00	14	330104-00-13-15-01-00
05	330101-23-34-10-02-05	15	330102-05-30-50-02-05
06	330130-085-02-00	16	330901-00-09-10-02-05
07	330101-00-12-15-02-00	17	102045-040-01
08	330901-00-08-10-02-05	18	330901-00-15-70-02-05
09	102044-00-18-10-02	19	21000-00-00-00-00-02
10	330104-03-12-10-02-00	20	330901-00-08-10-02-00

BUYER DECISION GUIDE · FAQ SET 10

330101-00-60-10-02-00 Buyer FAQ

Questions selected for this exact probe configuration.

Q01

What is the main fit risk of the 6.0 in case?

BB 60 creates the longest case in this batch. Verify insertion geometry, threaded mounting depth, rear clearance and access for adjustment.

Q02

Can a 4.0 in case be treated as equivalent if the cable length matches?

No. Matching CC 10 does not make BB 40 and BB 60 interchangeable. The mounting envelope must be checked independently.

Q03

How should AA 00 be handled on a long-case replacement?

Match the AA 00 unthreaded-length selection from the installed configuration; case length alone does not define the full probe body.

Q04

Is the 1.0 m lead measured independently of the 6.0 in case?

Yes. CC 10 identifies the 1.0 m total probe length, while BB 60 identifies the 6.0 in case.

Q05

What drawing information is worth requesting before purchase?

Request or confirm the probe ordering dimensions against the bracket, target position and available cable exit space for this exact model.

Q06

Why should the EE 00 suffix be reviewed for this spare?

EE 00 means no agency approval is required. Confirm the destination equipment does not require the EE 05 CSA, ATEX and IECEx option.

Q07

What receiving check is unique to this long-case model?

Verify the label and body configuration against BB 60 before storage, because a shorter case may look similar in packaging but will not meet the same mounting requirement.
