01 / PRODUCT DETAILS

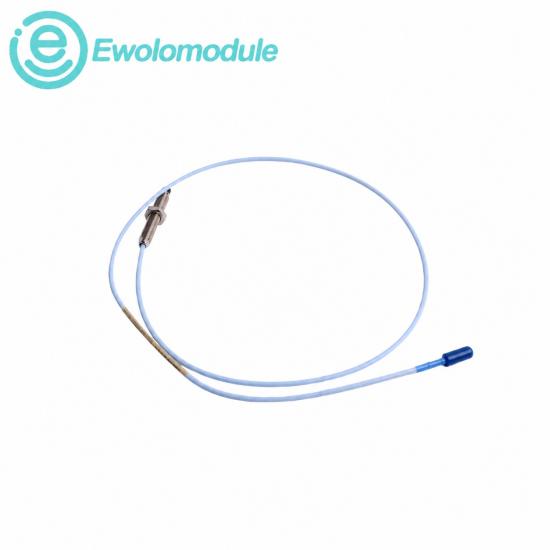

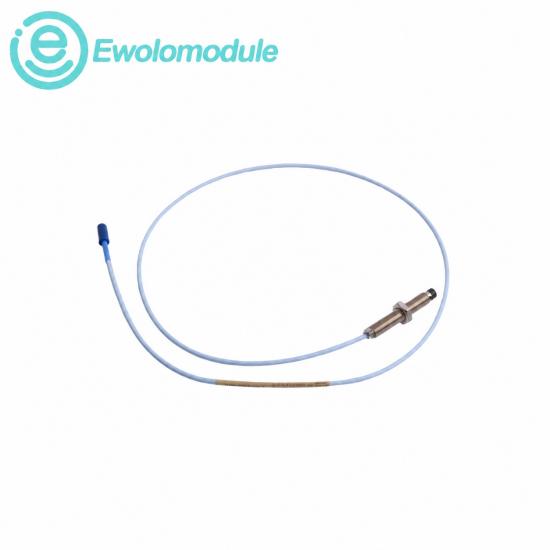

330103-00-06-10-02-00 3300 XL 8 mm Proximity Probe

Official M10x1 probe configuration for a 1 m 3300 XL 8 mm transducer system.

IDENTIFICATION

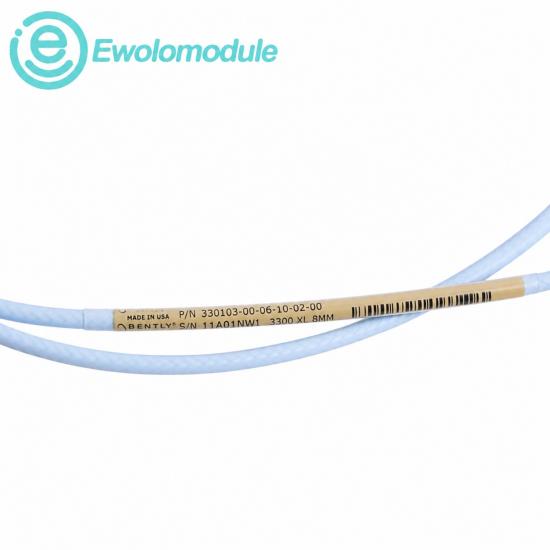

Bently Nevada 330103-00-06-10-02-00

An M10x1 threaded 3300 XL 8 mm proximity probe without armor. Its official suffix specifies 0 mm unthreaded length, a 60 mm case, 1 m total length, ClickLoc connector with standard cable and no agency approval.

BRAND

Bently Nevada

PRODUCT SERIES

3300 XL 8 mm

OFFICIAL NAME

3300 XL 8 mm Proximity Probe

PRODUCT ROLE

M10x1 proximity probe

Condition
New Original

Warranty
One year

In stock
3 pcs

Official source
Baker Hughes Datasheet 141194 Rev. AM

02A / PRODUCT DESCRIPTION

Metric proximity sensing for 3300 XL 8 mm systems

The 330103-00-06-10-02-00 is an M10x1 proximity probe without armor, configured with a 60 mm case and 1 m total length for non-contacting displacement measurement.

Product positioning
Field probe for radial vibration, axial position, phase-reference and other shaft-relative measurements.

Suffix meaning
00 = 0 mm unthreaded; 06 = 60 mm case; 10 = 1 m total; 02 = ClickLoc, standard cable; 00 = no approval.

System connection
Use with a matching 3300 XL extension cable and Proximitor Sensor so the complete loop matches the selected system length.

THREE PRODUCT FEATURES

M10x1 threaded case
Metric threaded installation without stainless-steel armor.

ClickLoc connection
Option 02 supplies the official ClickLoc connector on standard cable.

System compatibility
Compatible with the 3300 XL 8 mm proximity transducer system.

02B / OFFICIAL TECHNICAL DATA

Verified specification register

Model

330103-00-06-10-02-00

Product family

3300 XL 8 mm

Thread

M10x1

Armor

Without armor

Unthreaded length

0 mm

Case length

60 mm

Total length

1 m

Connector / cable

ClickLoc / standard cable

Approval option

Not required

Cable construction

75Ω triaxial FEP

03A / INDUSTRY APPLICATIONS

Where proximity-system data supports machine protection

Radial vibration
Shaft-to-bearing displacement on fluid-film bearing machines.

Axial position
Thrust-position and axial-displacement measurements.

Phase reference
Keyphasor and speed-related phase reference measurements.

Machine protection
Continuous condition monitoring on critical rotating assets.
