TECHNICAL PRODUCT FILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

MODEL IDENTIFICATION

330103-00-06-15-02-CN

3300 XL 8 mm

OFFICIAL PRODUCT NAME

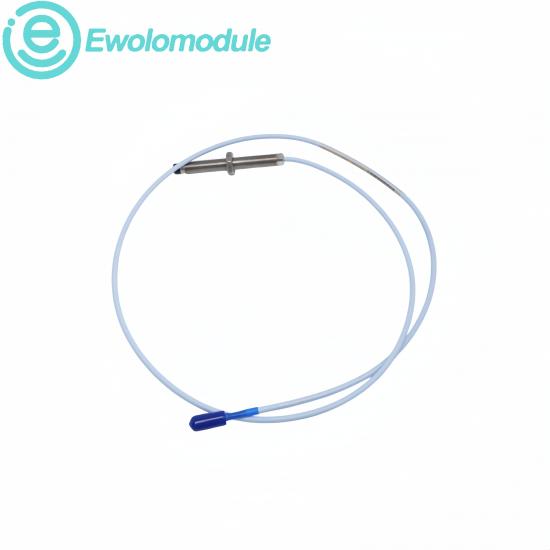

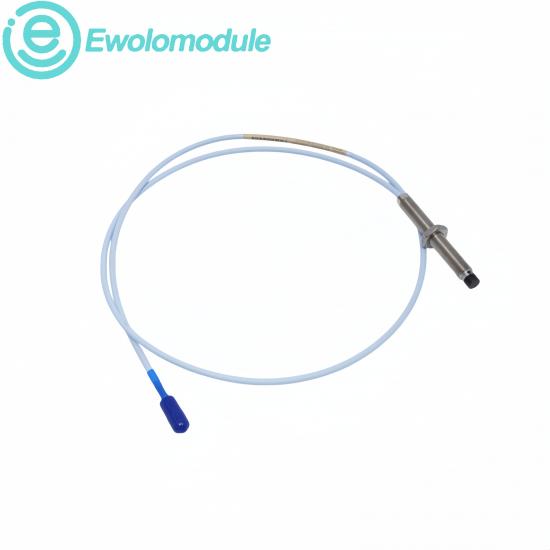

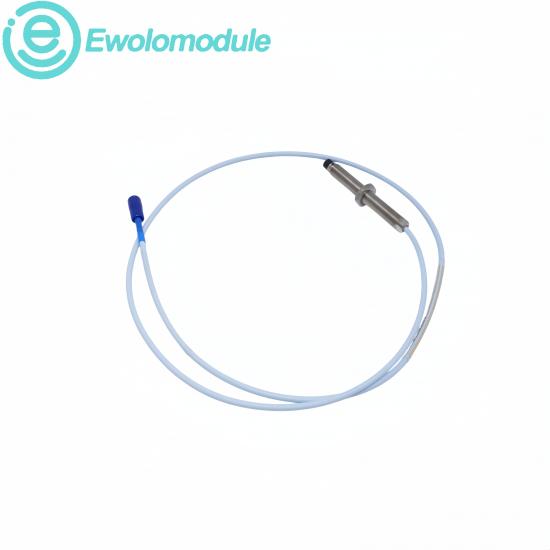

3300 XL 8 mm Proximity Probe

8 MM PROBE1.5 M CABLEM10×1 THREAD

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

RADIAL VIBRATION

KEYPHASOR

CLICKLOC

API 670

TECHNICAL SPECIFICATIONS

Identity, installation and commissioning reference

CALL +86 17359287459 EMAIL sales9@apterpower.com

Manufacturer

Bently Nevada

Order code

330103-00-06-15-02-CN

Product family

3300 XL 8 mm

Probe type

Proximity probe

Linear range

2mm

System length

1.5m

Thread

M10×1

Case length

60mm

Unthreaded length

0mm

Nominal resistance

7.73±0.50Ω

Connector

Miniature ClickLoc

Approval code

OPERATING ENVIRONMENT

Install the probe and extension cable in accordance with the 3300 XL drawing, maintaining the documented bend radius, connector protection and recommended target gap. Keep the cable away from high-voltage conductors and mechanical damage.

CONTROLLED CABINETCLEAN & DRYPOWER ISOLATION

MONITORING & CONTROL

Trend shaft vibration or Keyphasor response through the matched proximitor system. Verify the recommended gap near -9VDC, stable signal polarity, cable continuity, connector seating and the full 330103-00-06-15-02-CN order code.

SYSTEM STATUSSIGNAL CHECKDEVICE RESPONSE

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

Bently Nevada machinery-protection hardware uses documented order codes, calibrated transducer-system components and rugged mechanical construction for repeatable condition measurements.

TRACEABLEENGINEEREDSERVICE READY

APPLICATION FIELDS

Used for radial shaft vibration and Keyphasor measurements on turbines, compressors, pumps, motors and other critical rotating machinery.

TURBINESCOMPRESSORSROTATING ASSETS

RELATED MODELS

Bently Nevada

330101-00-08-10-02-00330102-00-12-10-02-00330103-00-05-10-02-00330104-00-06-10-02-00330105-02-12-10-02-00330106-05-30-10-02-00330130-040-00-00330130-080-00-00330180-50-00330180-X1-05330190-080-01-00330400-02-05330500-00-00330525-00330709-000-040-10-02-CN330730-080-00-003500/153500/22M3500/32M3500/42M

Metrix

ST5484E-121-121-00ST5484E-151-121-00ST5484E-152-121-00ST6911-100-000ST6911-200-000SA6200ASA6200A-100SA6200A-200SW5484E-121SW5484E-151MX2033MX2034MX2036MX2037MX8030MX8031MX8032MX8033MX8034MX8035

PROCUREMENT & SUPPLY PATH

01 · IDENTIFY

Provide the complete 330103-00-06-15-02-CN 3300 XL 8 mm code, installed node, terminal arrangement and required quantity.

02 · VERIFY

Confirm probe thread, case length, total system length, connector type, approval suffix and compatibility with the installed 3300 XL transducer system.

03 · QUOTE

Review pricing, lead time, warranty and delivery terms for the requested quantity.

04 · DISPATCH

Complete order checks, protective packing and destination-based shipment planning.
