01 · PRODUCT DETAILS

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330103-00-08-05-02-CN

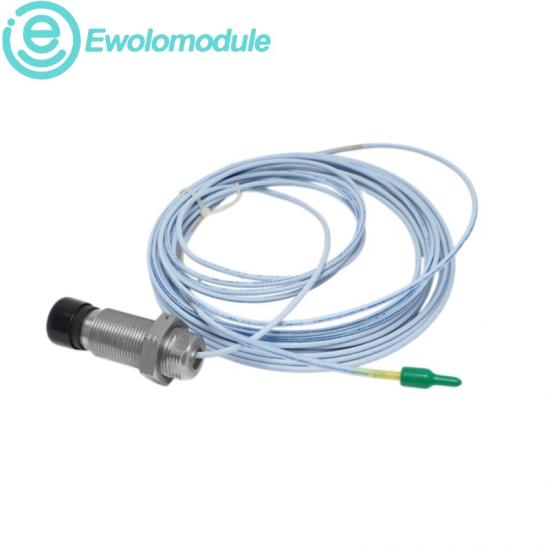

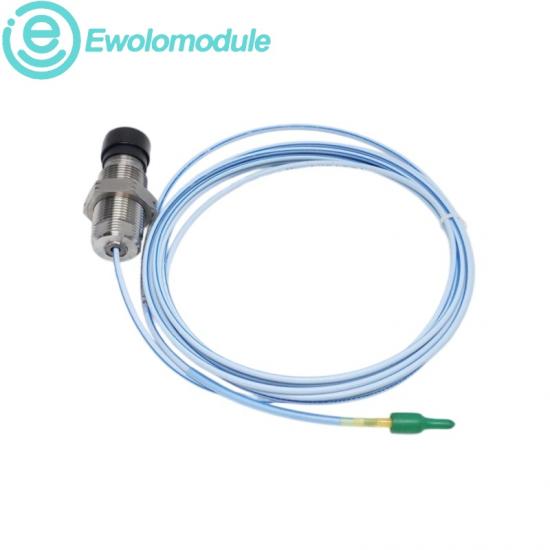

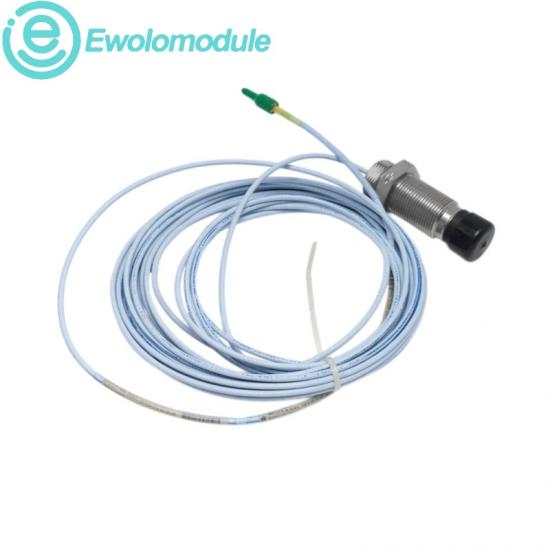

3300 XL 8 mm Proximity Probe

Bently Nevada 330103-00-08-05-02-CN is a 3300 XL 8 mm proximity probe with an M10 x 1 thread and a standard ClickLoc cable connection. The complete reference must be matched to the installed machinery-monitoring chain before quotation.

AVAILABILITY

In Stock · 2 units

CONDITION

New Original

WARRANTY

One year

PHYSICAL DATA

0.45kg · 25x20x5cm

Buyer Checkpoints

Model identification

Quote the complete 330103-00-08-05-02-CN reference and provide front, rear connector, mounting and nameplate photographs.

Compatibility check

Compatibility depends on the installed 3300 XL system, hardware revision, firmware level and project configuration. Confirm the matching probe, cable, connector and Proximitor sensor.

Typical applications

Machinery vibration monitoring, shaft position checks, installed-chain maintenance and exact-part replacement.

Installation and replacement notes

Apply lockout, use ESD protection, record cable and connector positions, back up configuration where applicable and follow the official manual.

Buyer Questions and Answers

What is the exact identification for 330103-00-08-05-02-CN?Use the complete 330103-00-08-05-02-CN reference and compare every segment with the supplied nameplate and quotation.

How should 330103-00-08-05-02-CN configuration be checked?Confirm the 3300 XL 8 mm system, M10 x 1 thread, case-length option, cable length, connector option and suffix against the installed documentation.

What does the 330103 base code identify?330103 identifies a 3300 XL 8 mm probe with M10 x 1 thread and without armor in the official ordering information.

What photographs are required for 330103-00-08-05-02-CN?Provide clear front, rear connector, probe body, mounting and complete nameplate photographs for 330103-00-08-05-02-CN.

Is stock for 330103-00-08-05-02-CN physically verified?The listed quantity for 330103-00-08-05-02-CN is checked against the warehouse record before quotation and dispatch confirmation.

What testing and warranty apply to 330103-00-08-05-02-CN?Label and appearance checks, plus any agreed product-specific checks, are confirmed with the quotation; the stated warranty is one year.

02 · SPECIFICATIONS

Specification Table

Manufacturer

Bently Nevada

Part Number / MPN

330103-00-08-05-02-CN

Series

3300 XL 8 mm Proximity Transducer System

Product Type

3300 XL 8 mm Proximity Probe, M10 x 1 thread, without armor

Measurement / Function

Eddy-current proximity measurement for machinery vibration and position monitoring in the documented chain

Probe tip diameter

8.0 mm

Thread

M10 x 1

Unthreaded length option (AA)

00 = 0 mm; metric option increments are specified in the official ordering information

Overall case length option (BB)

08 = 80 mm; metric option increments are specified in the official ordering information

Total cable length option (CC)

05 = 0.5 m (1.6 ft)

Connector and cable option (DD)

02 = miniature coaxial ClickLoc connector, standard cable

Suffix (EE)

CN; verify the suffix against the original label and quotation because the public standard table lists 00 and 05 agency options

Compatibility

Match the probe, extension cable and Proximitor sensor to the installed 3300 XL 8 mm configuration

Condition

New Original

Warranty

One year

Shipping Origin

32D Guomao Building , No.388 , Hubin south Road , Siming district , Xiamen , Fujian,China

Ordering-code meaning

330103 = 3300 XL 8 mm probe, M10 x 1 thread, without armor; 00 = 0 mm unthreaded length; 08 = 80 mm overall case length; 05 = 0.5 m total cable; 02 = miniature coaxial ClickLoc connector with standard cable; CN = suffix to be verified against the supplied label and quotation.

Technical selections are based on the official 3300 XL 8 mm ordering information; verify the complete configuration before ordering.

03 · RECOMMEND

Purchase Decision

Suitable systems

Documented Bently Nevada 3300 XL 8 mm proximity transducer monitoring chains matching the full reference and installed configuration.

Common applications

Machinery condition monitoring, shaft position checks, maintenance replacement and installed-chain restoration.

Package contents

One Bently Nevada 3300 XL 8 mm proximity probe in the configuration confirmed by the quotation and supplied label.

Confirm before order

Confirm the complete reference, quantity, destination, label photos, M10 x 1 thread, cable length, connector option and installed-system data.

Lifecycle status

Confirm exact-configuration availability at quotation; do not treat a similar reference as a direct replacement.

Bently Nevada Related Models

Bently Nevada 146054-34-20-02-05 Proximity Probe Assembly Bently Nevada 330879-03-00 Proximity Extension Cable Bently Nevada 330851-02-000-080-90-01-05 3300 XL Proximity Probe Bently Nevada 330180-X1-05 MOD:145004-75 Proximitor Sensor Bently Nevada 330173-00-05-10-02-00 3300 XL Proximity Probe Bently Nevada 330851-02-000-040-10-00-05 3300 XL Proximity Probe Bently Nevada 24701-28-05-XX-025-04-XX MOD:323933-30-02 Special Proximity Probe Bently Nevada 24701-28-05-XX-014-04-XX MOD:323933-40-02 Special Proximity Probe

ABB

Comparison references only, not a direct replacement promise.

PM851AK01 3BSE066485R1

TU846 3BSE022460R1

RMIO-01C

NDBU-85C

NTCF22

FDPI-02

AO845A 3BSE045584R1

DO880 3BSE028602R1

AI810 3BSE008516R1

AO810 3BSE008522R1

DI810 3BSE008508R1

DO810 3BSE008510R1

CI851K01 3BSE018101R1

DSDO120 57160001-AK

YPG111A

SPAJ141C

IMMFP03

RETA-02

NPSI03

NGPS13C 3AUA0000042489

04 · SERVICE & POLICY

STOCK VERIFIED

2026-10-21

PAYMENT TERM

T/T

LEAD TIME

Confirmed with quotation

DELIVERY WAYS

DHL / FEDEX / UPS / TNT / Aramex

Order Service

Before quotation

Provide the complete 330103-00-08-05-02-CN reference, quantity, destination, installed-system information and nameplate photographs.

Stock verification

Warehouse quantity, label photographs, interface photographs and packaging photographs are confirmed with the quotation.

Order confirmation

The quotation records exact model, revision, quantity, condition, price, lead time, delivery method, warranty and payment term.

Inspection and testing

Label, appearance and agreed product-specific checks are arranged according to the product and order terms.

Packaging

Anti-static material, moisture protection, cushioning, connector protection and suitable export packaging are selected as required.

International shipping

Courier route, tracking number, destination-country taxes and buyer-specified delivery method are confirmed.

After-sales support

For mismatch or transit damage, retain the label, packaging and order record and provide photographs within the agreed support period.

Quotation entry

Use the Request Price & Availability button above so the exact model and source page enter the quotation.
