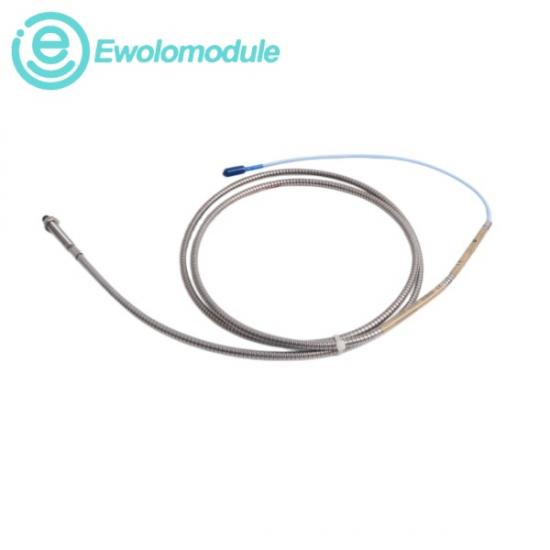

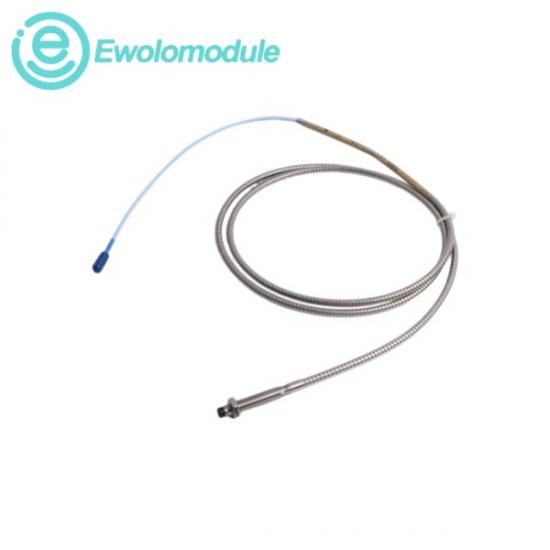

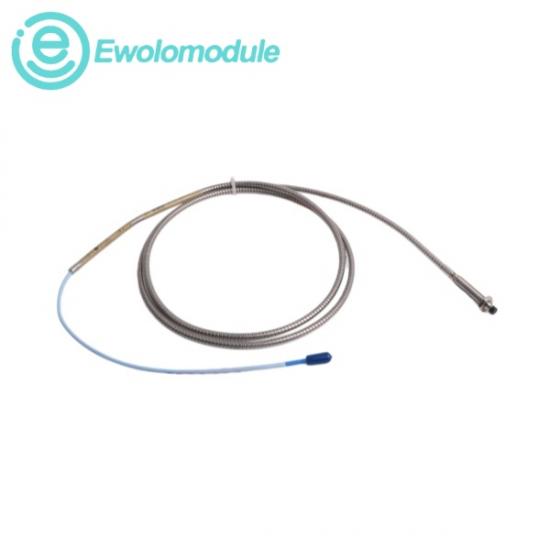

The 3300 XL 8 mmProximity Transducer System:330104-00-05-20-02-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
|
Unthreaded Length |
0 mm |
|
Overall Case Length |
50 mm |
|
Total Length |
2.0 meters (6.6 feet) |
|
Connector and Cable-Type |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval |
CSA, ATEX, IECEx Approvals |
|
1. Probe tip, 8.0 mm (0.31 in) diameter |
|
2. 9/16 in for 3/8-24 threads, M17 for M10 threads (see Note 2) |
|
3. Case thread |
|
4. 5/16 in wrench flats for 3/8-24 threads; 8mm wrench flats for M10 threads. |
|
5. 75 Ω cable, 3.68 mm (0.145 in) maximum outside diameter, |
|
6. Miniature male coaxial connector, 7.24 mm (0.285 in) maximum outside diameter “D” |
|
7. Unthreaded length “A” |
|
8. Case length “B” |
|
9. 6.0 mm (0.235 in) maximum |
|
10. Total length “C”, +30%, -0% |
