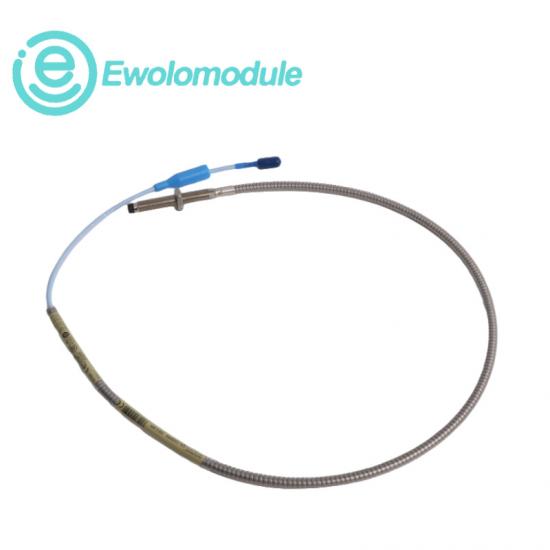

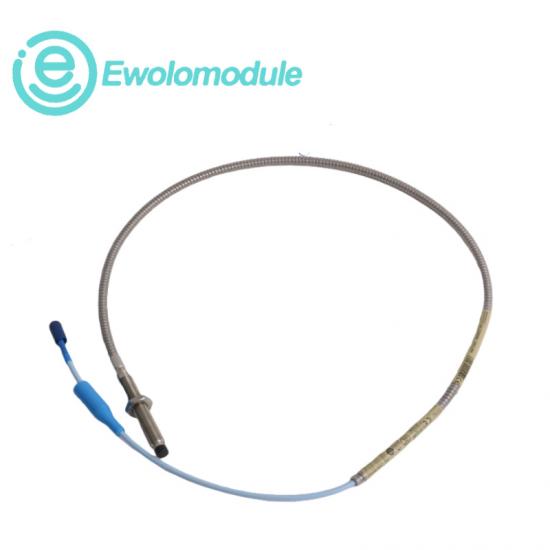

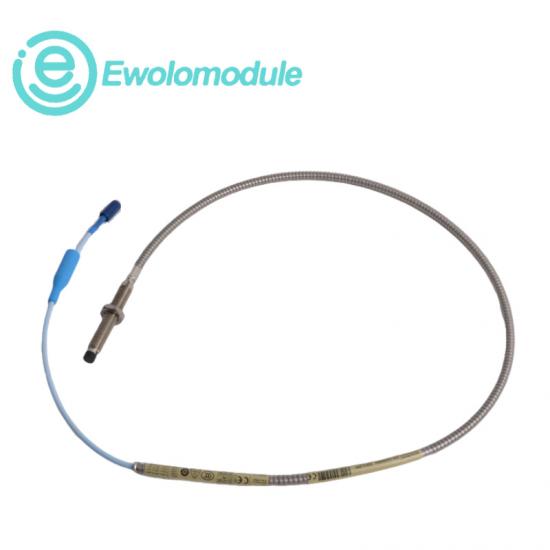

>> 330104-00-07-10-01-CN
| Manufacturer: Bently Nevada | Delivery Time: 3-5 days |
| Product Type: Proximity Probe | Quantity: 100% New Original |
| Product origin: USA | Payment Methods: 100%T/T |
| Condition: In Stock | Minimum Order Quantity: 1pc |
※ If you want to know more information about this item,Please contact Yuki immediately
Description
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other non XL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space6,7.
Description Notes: 6. The 3300-series 5 mm probe (refer to Document 141605) uses smaller physical packaging, but does not reduce the side view clearances or tip-to-tip spacing requirements as compared to an 8mm probe. It is used when physical (not electrical) constraints preclude the use of an 8 mm probe. When your application requires narrow side view probes, use the 3300 NSv Proximity Transducer System (refer to Document 147385).
7. 8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. This results in a more rugged probe. The larger diameter of the probe body also provides a stronger, more robust case. We recommend that you use 8 mm probes when possible to provide optimal robustness against physical abuse.
| Extension Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Field Wiring | 0.2 to 1.5 mm2 (16 to 24 AWG). Recommend using 3 conductor shielded triad cable and tinned field wiring. Maximum length of 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor. See the frequency response graphs, Figures 10 and 12, for signal rolloff at high frequencies when using longer field wiring lengths. |
| Linear Range | 2 mm (80 mils). Linear range begins at approximately 0.25 mm (10 mils) from target and is from 0.25 to 2.3 mm (10 to 90 mils) (approximately –1 to –17 Vdc). |
| Recommended Gap Setting for Radial Vibration | -9 Vdc [approximately 1.27 mm (50 mils)] |
Below Brands have Special Discount recently!!
1) TRICONEX(3008,3625,3805E.3721,3700A 4351B...)
2) BENTLY NEVADA(3500/42M ,3500/22M,3500/95.3500/05...)
3) HIMA(F3330,F3236 ,F6217,F7126,F8621A....)
4) FOXBORO(FBM203,FBM204,FBM217,FMB231...)
5) Allan-Bradley (1756,1785,1771,1746,1769..)
6) ABB (DSQC .....)
More choice
| IV58000074 200-HTL | V250821001 | PW402 |
| 50XE60F0581C001 | 462M31F41B | CHLIO16 |
| BEM4U + BV9982 | IC693ALG223C | CM233XE00146 |
| GJV3072415R1 | WTS10-12/20/105 200958 | RAILGARD-W1 SC00013 |
| EPRGM201 TN8428 | C3334B2869 | MR-J4-40B |
| DUO10A 13438751 | R414002294 | 6ES7141-6BF00-0AB0 |
| 176214 6982-02 | C200HXCPU44E | V-34010-001-0002 |
| RN42-10D8/0 | GI355.A704149 | FR-D740-012SC-EC |
| DT35-B15851 1057653 | SIEMENS A5E30479841 | BOSCH 156676001 99302 044 288 |
| TB45111 | DRT1232C2 | HG-KR73K-S000997 |
| ETS-05-L2-E | PMC531D50D2R6A3K | JSDEP20A |
| DANFOSS NRVA 25/32 | 836-3A 8363A | MHMF082L1U2 |
| 006202 P-4501-A202 | 31C011503400 | FLO14 |
| RZB012UN | E84AVSCE3024SXS | 6EP19356MD11 |
| MD53GD3C | XCST50 | 6027H6 AT10/10S'20 |
| MKB6350LZ | DFM-25-100-P-A-GF | MR-J4-70B |
