PROBE PROFILE

01 / PRODUCT DETAILS

330106 reverse-mount probe

Metric reverse mounting for standard 8 mm proximity systems.

PRODUCT IDENTITY

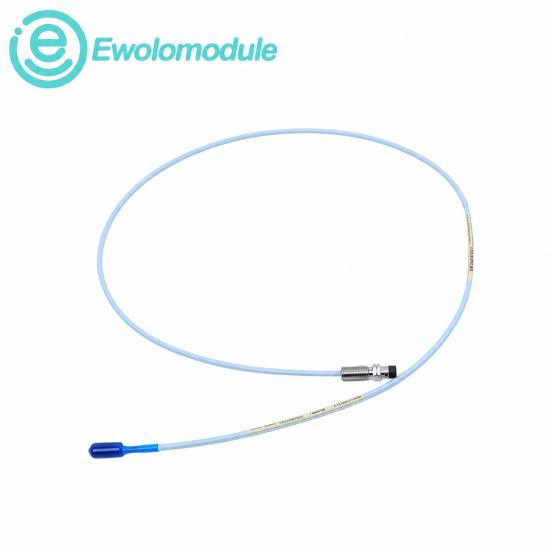

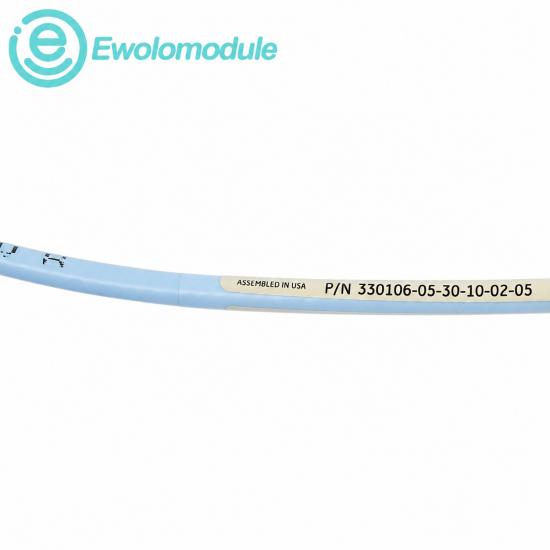

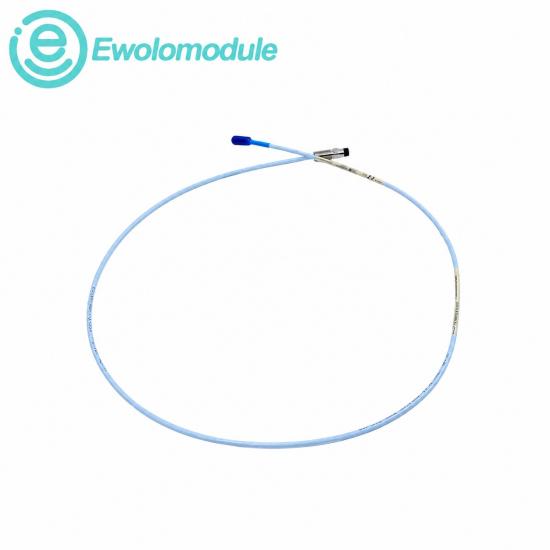

Bently Nevada 330106-05-30-10-02-05

An M10x1 reverse-mount 3300 XL 8 mm probe with a 1.0-meter total length, standard miniature ClickLoc connector and CSA/ATEX/IECEx approvals.

BRAND

Bently Nevada

PRODUCT SERIES

3300 XL 8 mm

OFFICIAL NAME

3300 XL 8 mm Reverse Mount Probe

PRODUCT ROLE

Reverse-mount proximity probe

Condition
New Original

Warranty
One year

In stock
2 pcs

Official source
Baker Hughes Datasheet 141194 Rev. AM

02A / PRODUCT DESCRIPTION

Metric reverse-mount sensing for 3300 XL systems

The 330106-05-30-10-02-05 is a reverse-mount M10x1 proximity probe designed for non-contacting shaft vibration and displacement measurements in a matched 3300 XL 8 mm system.

◇━━━━◎━━━━◆━━━━◎━━━━◇

Product positioning
Reverse-mount installations with metric threads.

Suffix meaning
05-30 fixed case; 10 / 02 / 05 configuration.

System connection
Miniature coaxial ClickLoc connector, standard cable.

THREE PRODUCT FEATURES

M10x1 thread
Metric reverse-mount mechanical interface.

One-meter length
Official total-length option 10.

Multiple approvals
CSA, ATEX and IECEx option.

02B / DATA

Official technical register

Model

330106-05-30-10-02-05

Mounting

Reverse mount

Thread

M10x1

Case option

05-30

Total length

1.0m

Connector

Miniature coaxial ClickLoc

Cable type

Standard cable

Approval

CSA / ATEX / IECEx

System linear range

2.0mm

Scale factor

7.87V/mm

03A / INDUSTRY APPLICATIONS

Metric reverse-mount machinery installations

Bearing housings
Reverse-entry probe mounting.

Radial vibration
Shaft-relative vibration channels.

Axial position
Non-contacting thrust measurement.

Protection loops
Matched 3300 XL 8 mm systems.
