01 / PRODUCT DETAILS

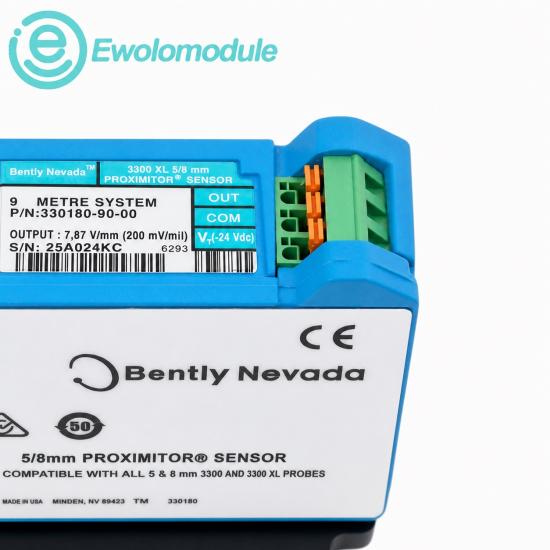

330180-90-00 3300 XL 8 mm Proximitor Sensor

Official 9 m panel-mount configuration for the 3300 XL 8 mm transducer system.

IDENTIFICATION

Bently Nevada 330180-90-00

A 3300 XL 8 mm Proximitor Sensor for a 9 m system. The 90 suffix identifies the 9 m panel-mount configuration, while 00 specifies that agency approval is not required.

BRAND

Bently Nevada

PRODUCT SERIES

3300 XL 8 mm

OFFICIAL NAME

3300 XL 8 mm Proximitor Sensor

PRODUCT ROLE

Proximity signal conditioner

Condition
New Original

Warranty
One year

In stock
3 pcs

Official source
Baker Hughes Datasheet 141194 Rev. AM

02A / PRODUCT DESCRIPTION

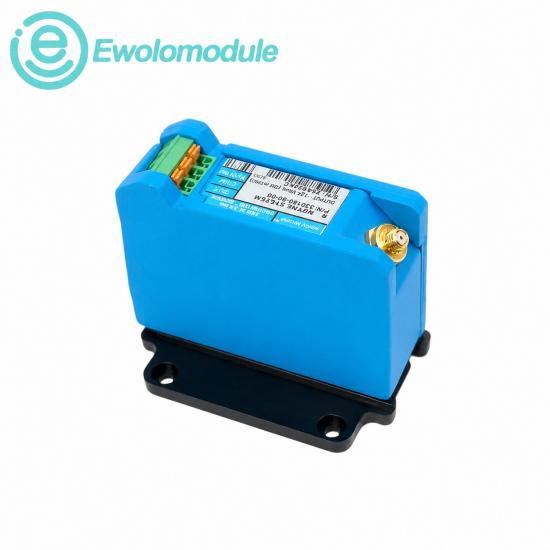

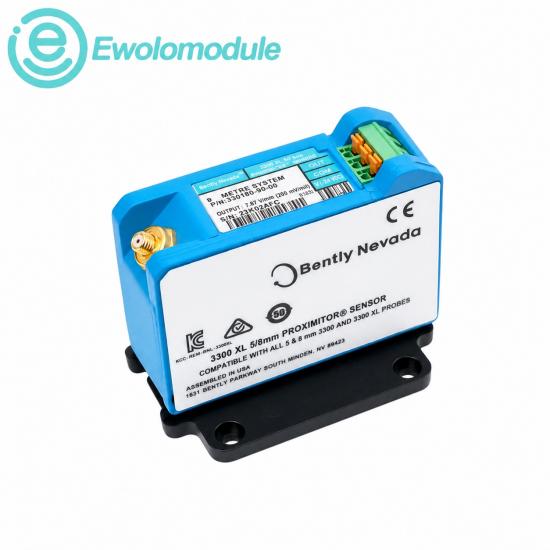

Panel-mounted signal conditioning for a 9 m proximity loop

The 330180-90-00 is a Proximitor Sensor configured for a 9 m system and panel mounting. It converts probe gap into a proportional voltage signal for machinery-monitoring equipment.

Product positioning
Signal-conditioning element between the 3300 XL probe/extension cable and compatible monitoring instrumentation.

Suffix meaning
90 = 9 m system with panel mount; 00 = agency approval not required.

System connection
Connect one compatible 3300-series 5 mm or 3300 XL 8 mm probe and extension cable, with the complete transducer loop matched to 9 m.

THREE PRODUCT FEATURES

Panel mounting
Official 90 option provides panel-mount hardware.

Matched 9 m loop
Designed for a complete probe-and-extension-cable system length of 9 m.

Proportional output
Provides a voltage output proportional to the distance between probe tip and conductive target.

02B / OFFICIAL TECHNICAL DATA

Verified specification register

Model

330180-90-00

Product family

3300 XL 8 mm

System length

9 m

Mounting

Panel mount

Approval option

Not required

Compatible input

3300 5 mm / 3300 XL 8 mm

Power

-17.5 to -26 VDC

Output resistance

50Ω

Linear range

2.0 mm

Scale factor

7.87 V/mm ±6.5%

03A / INDUSTRY APPLICATIONS

Where proximity-system data supports machine protection

Radial vibration
Shaft-to-bearing displacement on fluid-film bearing machines.

Axial position
Thrust-position and axial-displacement measurements.

Phase reference
Keyphasor and speed-related phase reference measurements.

Machine protection
Continuous condition monitoring on critical rotating assets.
