Product info
| Part Number: | 330500-04-04 | Condition: | Brand New & in Stock |
| Manufacturer: | Bently Nevada | Service One-stop | |
| Product Type: | Piezo-velocity Sensor | Shipping Detail: | Fedex and UPS etc |
| Origin: | USA | Warranty: | 12 months |
Specifications
Parameters are specified from +20 °C to +30 °C (+68 °F to +86 °F) and at 100 Hz unless otherwise indicated.
| Electrical | |||
| Sensitivity | Frequency Response | Temperature Sensitivity | Velocity Range |
| 3.94mV/mm/s (100 mV/in/s) ±5%. | 4.5 Hz to 5 kHz (270 cpm to 300 kcpm) ±3.0 dB. 6.0 Hz to 2.5 kHz (360 cpm to 150 kcpm) ±0.9 dB. | -14% to +7.5% typical over the operating temperature range. | 1270 mm/s (50 in/s) peak. |
| Transverse Sensitivity |
Amplitude Linearity |
Mounted Resonant Frequency |
Output Bias Voltage |
| Less than 5% of sensitivity. |
±2% to 152 mm/s (6 in/s) peak. |
Greater than 12 kHz. |
-12 ±3.0 VDC, over temperature referenced to Pin A. |
| Dynamic Output Impedance |
Broadband Noise Floor (4.5 Hz to 5 kHz) |
Grounding |
Maximum Cable Length |
| Less than 2400 Ω |
0.004 mm/s (160 μin/s) rms, nominal |
Case isolated |
305 metres (1,000 feet) of cable, part number 02173006, with no degradation of signal. |

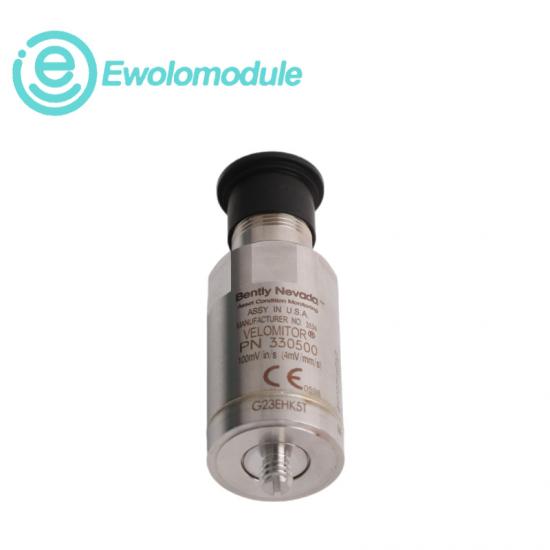

330500 Velomitor Piezo-velocity Sensor
Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.
Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation
